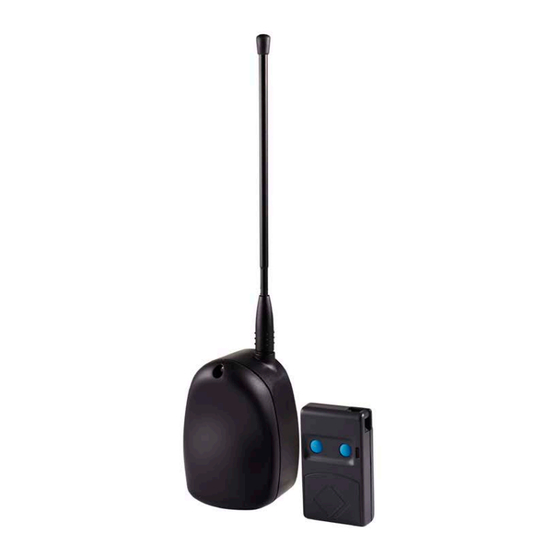

RF Remote Control Unit
SEAV
for LINAK TECH-systems
Installation instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TXS 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Linak TXS 2

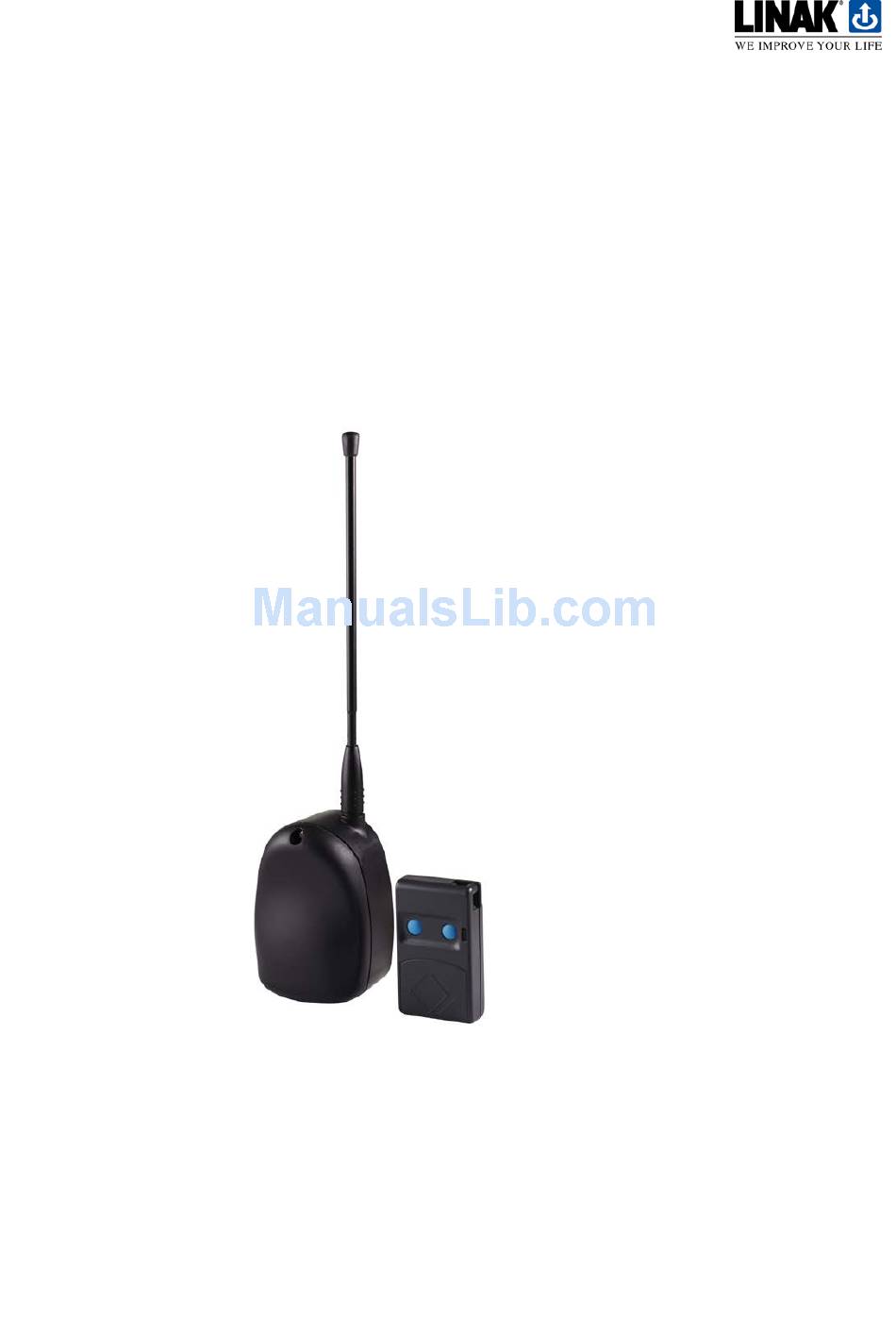

  • Page 1 RF Remote Control Unit SEAV for LINAK TECH-systems Installation instructions...
  • Page 2: Foreword

    LINAK Danmark A/S on (+45) 86803611. LINAK provides a guarantee for all of its products and systems. However, this guarantee is subject to the condition that the product is used in accordance with the specifications, that maintenance is performed correctly, and that any repairs are carried out at a workshop that is authorised to repair LINAK products.
  • Page 3: Table Of Contents

    TR-EM-288 ............................. 9 Coding transmitter (control unit) TXS2....................10 Pairing transmitter and receiver ....................10 Reset factory settings........................10 Page 3 of 10 oct. 2017 ver. 02. LINAK Danmark A/S - Mønstedsvej 9- DK-8600 Silkeborg -Telephone (+45) 86803611 - www.linak.dk...
  • Page 4: Technical Data

    The system uses radio frequencies to communicate between transmitter and receiver. Dimensions Receiver; RXS 2224 Page 4 of 10 oct. 2017 ver. 02. LINAK Danmark A/S - Mønstedsvej 9- DK-8600 Silkeborg -Telephone (+45) 86803611 - www.linak.dk...
  • Page 5: Installation

    To remove receiver cover, unscrew screw C. Then, using the 3 screw holes (labelled A), mount the transmitter with three suitable screws. Page 5 of 10 oct. 2017 ver. 02. LINAK Danmark A/S - Mønstedsvej 9- DK-8600 Silkeborg -Telephone (+45) 86803611 - www.linak.dk...
  • Page 6: Connection

    120 sec. delay circuit = Active for 120 sec. after the button is released. Bistable function = changeover relay function. Page 6 of 10 oct. 2017 ver. 02. LINAK Danmark A/S - Mønstedsvej 9- DK-8600 Silkeborg -Telephone (+45) 86803611 - www.linak.dk...
  • Page 7: Connecting Receiver Rxs 2224

    LINAK control boxes: CB8-A / CB8-T / CB9 / CB12 The above-mentioned LINAK control boxes use a DIN connector for control. You can order a cable with DIN connectors for use between control box and receiver from LINAK Danmark A/S. Article no.
  • Page 8 Instruction Manual for RF remote control unit SEAV for TECH-system Page 8 of 10 oct. 2017 ver. 02. LINAK Danmark A/S - Mønstedsvej 9- DK-8600 Silkeborg -Telephone (+45) 86803611 - www.linak.dk...
  • Page 9: Tr-Em-208

    Instruction Manual for RF remote control unit SEAV for TECH-system Third-party controllers TR-EM-208 TR-EM-239 TR-EM-288 Page 9 of 10 oct. 2017 ver. 02. LINAK Danmark A/S - Mønstedsvej 9- DK-8600 Silkeborg -Telephone (+45) 86803611 - www.linak.dk...
  • Page 10: Coding Transmitter (Control Unit) Txs2

    To delete all codes recorded in the receiver, press and hold the SEL button for 5 sec. When the unit is reset, the LEDs for CH1 and CH2 respectively will flash 3 times. Page 10 of 10 oct. 2017 ver. 02. LINAK Danmark A/S - Mønstedsvej 9- DK-8600 Silkeborg -Telephone (+45) 86803611 - www.linak.dk...
