This User Manual does not address the end user� It is intended as a source of information for the equipment or system manufacturer only, and it will tell you how to install, use and maintain your LINAK electronics� The manufacturer of the end product has the responsibility to provide a User Manual, where relevant safety information from this manual is passed on to the end user�...
Page 4
HC10 | This User Manual is valid for the following product: Control: HC10 series...
Failure to comply with instructions marked with the ”NOTICE” symbol may result in serious damage to the system or one of its components� Read all instructions before using this product� Important safety information on LINAK products can be found under the following heading(s): ®...
HC10 | General safety instructions Safe use of the system is possible only when the operating instructions are read completely and the instructions contained are strictly observed� Failure to comply with instructions marked with the ”NOTE” symbol may result in serious damage to the system or one of its components�...
Page 7
HC10 | This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation •...
HC10 | WARNING • This appliance can be used by children aged from 8 years, and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved�...
Le non-respect des instructions marquées du symbole “AVIS” peut entraîner de graves dommages au système ou à l’un de ses composants� Lisez toutes les instructions avant d’utiliser ce produit� Des informations de sécurité importantes sur les produits LINAK sont disponibles dans la ou les rubriques ®...
HC10 | 10 Consignes générales de sécurité Le non respect de ces instructions peut entraîner des accidents impliquant des blessures graves� Ne pas suivre ces instructions peut entraîner l´endommagement ou destruction du produit� L´utilisation en toute sécurité du système n´est possible que si l´intégralité des instructions ont été lues et ont été...
Page 11
HC10 | 11 Cet appareil est pleinement conforme à la section 15 des réglementations FCC. Le fonctionnement est sujet aux deux conditions suivantes: (1) Cet appareil ne doit pas causer d’interférences dangereuses, et (2) cet appareil doit supporter les interférences, y compris celles pouvant provoquer un fonctionnement non désiré...
HC10 | 12 AVERTISSEMENT • Cet appareil peut-être utilisé par des enfants âgés de 8 ans et plus, ainsi que les personnes dont les capacités physiques, sensorielles ou mentales sont réduites ou ayant un manque d´expérience et de connaissance si elles ont bénéficié d´une surveillance ou d´instructions concernant l´utilisation de l´appareil en toute sécurité...
HC10 | 13 Battery safety information for end users For UL 4200A compliance Requirements for end-user warnings and information: Compliance with UL 4200A extends beyond initial steps and involves providing necessary warnings and information directly to the end user� You can fulfil these requirements through distinct warnings on the product packaging, as well as detailed information within the instruction and user manuals�...
Page 14
HC10 | 14 Information in the instruction and user manual: WARNING • INGESTION HAZARD: This product contains a button cell or coin battery� • DEATH or serious injury can occur if ingested� • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours�...
EU DECLARATION OF CONFORMITY LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares under our sole responsibility that LINAK actuator system items Wireless accessory: BLE2LIN Wireless handset: HC05BL, HC10BL, HC1ABL, HC10ECO, HC2xBL, HC30BL, HC40BL, BP10BL, DPG1B, DPG1C, DPG1M, DPI-C complies with the Radio Equipment Directive (RED) 2014/53/EU (OJ L 153, 22.5.2014, p.
Use the HC10BL in an environment with temperature between -10 and +50 ºC� Otherwise, the HC10BL may be damaged� It can be operated at altitudes up to 2000 m� Hereby, LINAK A/S declares that the radio equipment type HC10BL is compliant with Directive 2014/53/EU� Caution: For battery: Risk of explosion if the battery is replaced with an incorrect type�...
Max� 2000 m Warranty The warranty terms for HOMELINE products are described in this warranty paper: https://cdn�linak�com/-/media/files/warranty/warranty-paper-homeline-eng�pdf Maintenance Clean dust and dirt on the outside of the system at appropriate intervals and inspect them for damage and breaks� Inspect the connections, cables and plugs and check for correct functioning as well as fixing points�...

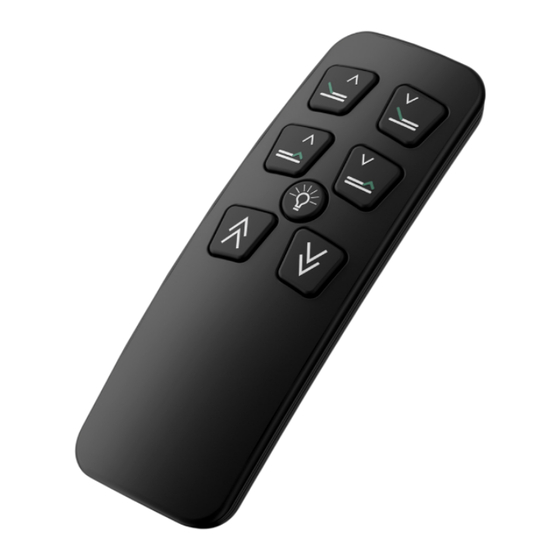

HC10 | 18 Description of the Hand Control HC10 The Hand Control HC10 is a simple and user-friendly remote control for mainly comfort beds� It comes in three different colour combinations to match different bed designs�� It has big intuitive buttons and a simple design that makes it a very popular choice for standard systems with two actuators, simultaneous drive and Under Bed Light�...
HC10 | 19 Operation Dual pairing HC12 control with SW0077075 ver� 1�04 (produced from November 2017) supports dual pairing: Pairing one hand control to two TD4/TD5/LA18 IC with integrated Bluetooth or two CBD6DC HOMELINE using ® Bluetooth Adapters� ® It is important that the two products (TD4/TD5/LA18 IC/CBD6DC HOMELINE) are not connected to each other via a LINbus cable�...
HC10 | 20 Battery replacement 1� Unscrew battery lid (use a Philips PH0 screwdriver)� 2� Remove old battery� 3� Insert new CR2032 battery� 4� Remount battery lid� Max torque: 0�2 Nm� Dispose of used batteries immediately� Keep new and used batteries away from children� If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention�...
LINAK service centre� In order to avoid the risk of malfunction, all actuator repairs must only be carried out by an authorised LINAK Service shop or repairers, as special tools and parts must be used�...
HC10 | 22 Disposal of LINAK products As LINAK customers often ask us how our products can be disposed or scrapped, we have prepared this guide that enables a classification to different waste fractions for recycling or combustion� Guide We recommend our products to be disassembled as much as possible and divided into different waste groups for recycling or combustion�...
LINAK, LINAK subsidiaries, or LINAK affiliates. the same reason, LINAK cannot guarantee the correctness and actual status of imprinted information on All sales are subject to the ‘Standard Terms of Sale and Delivery for LINAK A/S’ available on LINAK websites. its products.
