HeartWare Ventricular Assist System Patient Manual page 48

HeartWare® Ventricular Assist System Patient Manual

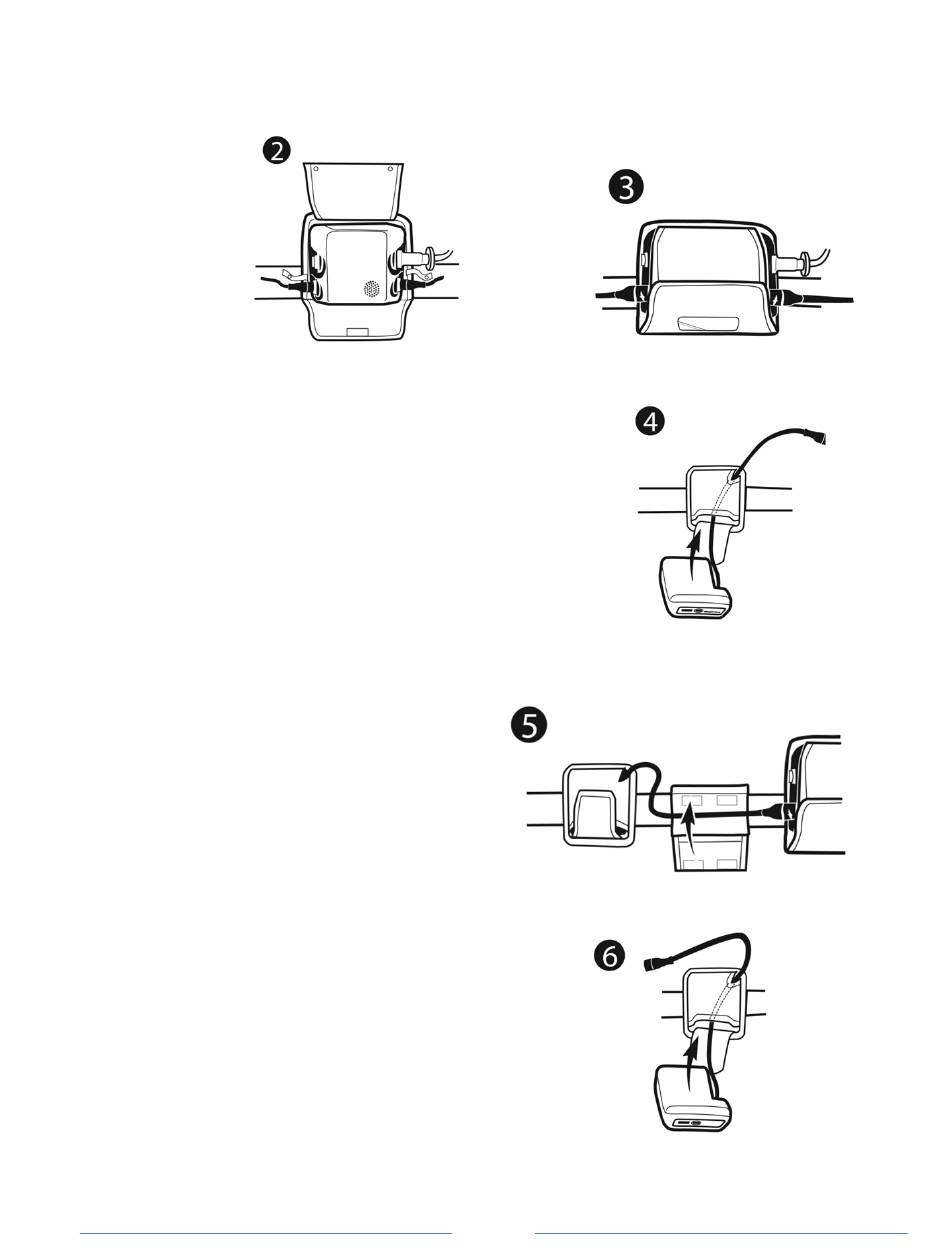

2. Place the controller as shown in #2.
4. To load the batteries:
5. Disconnect one battery from the
controller. Refer to the HeartWare®
Ventricular Assist System Patient Manual
instructions.
6. Open the battery pocket and feed the
battery cable through the hole (see #4)
and then place the battery in the pocket.
7. Re‐connect the battery to the controller
and fold the battery pocket cover closed.
8. Secure the cable in the cable sleeve by
opening the flap, placing the cable
inside, and closing the flap. (#5).
9. Repeat steps 4 and 5 for the other
battery. (See #6 and #7)
3. Fasten the snaps and fold the
cover closed. (See #3)
Page 42
