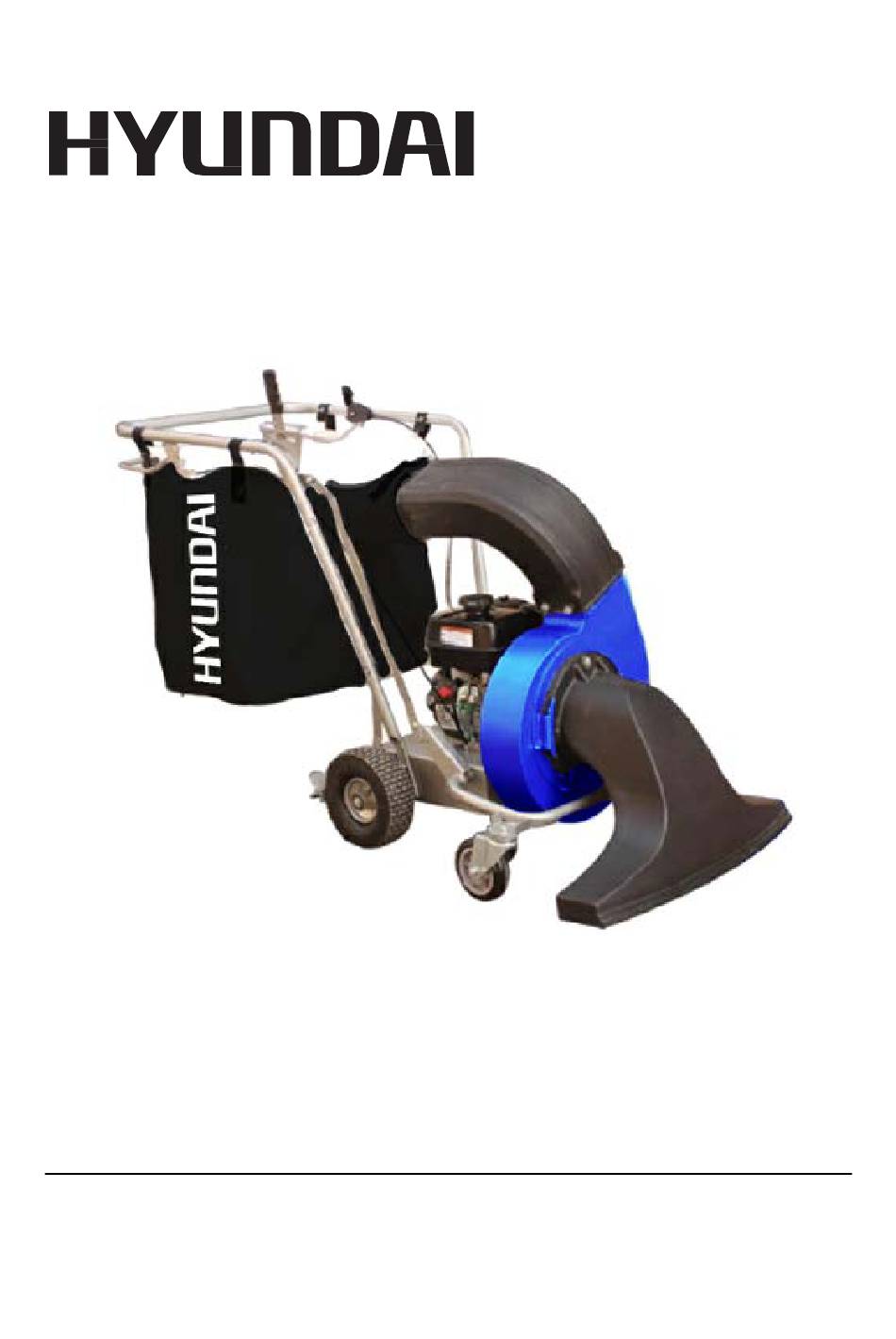

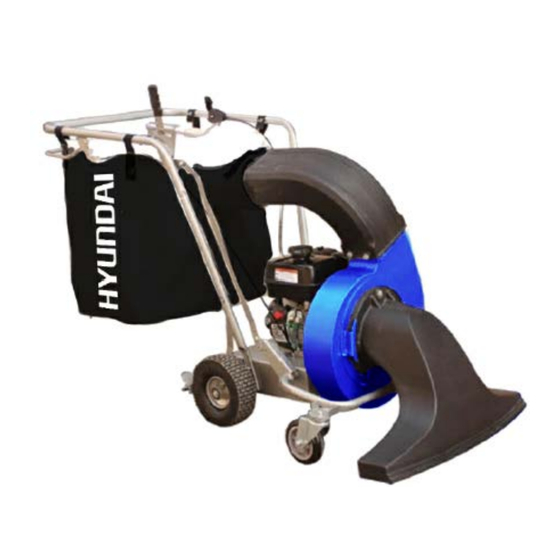

  • Page 1 BLOWER VACUUM Model HYBV200 User Manual Licensed by Hyundai Coporation, Korea...
  • Page 2 Page 2...

  • Page 3: Table Of Contents

    CONTENTS PAGE N SAFETY 4 – 7 MACHINE SPECIFIC SAFETY 7 – 9 PARTS LOCATIONS 9 - 10 SPECIFICATIONS ASSEMBLY 12 – 13 STARTING & STOPPING THE MACHINE 14 – 16 TROUBLESHOOTING MAINTENANCE 18 – 21 STORAGE & TRANSPORATION 21 – 23 RECYCLING &...

  • Page 4: Safety

    1. SAFETY 1.1. General safety notes. 1.1.1. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user.
  • Page 5 1.2. Carbon monoxide. 1.2.1. Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.2.2. The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
  • Page 6 1.3. General fuel safety. ALL FUELS ARE FLAMMABLE 1.3.1. Fire hazard - keep fuel away from all sources of ignition for example heaters, lamps, sparks from grinding or welding. 1.3.2. DO NOT carry out hot work on tanks that have contained fuel it is extremely dangerous.

  • Page 7: Machine Specific Safety

    1.5.2. Not all factors that lead to white finger disease are known, but cold weather, smoking and other diseases that affect blood vessels and blood circulation as well as large and long-lasting impact of shocks are considered factors in the formation of white finger.
  • Page 8 2.1.7. Never allow adults unfamiliar with these instructions to operate the machine. 2.1.8. Never use the machine while people (especially children) or pets are nearby. Stop the machine if anyone enters the work area. 2.1.9. Tragic accidents can occur if the operator is not alert to the presence of children.

  • Page 9: Parts Locations

    and blower tube (When installed) at all times. 2.3.11. Stop the engine and disconnect the spark-plug HT lead: 2.3.11.1. Before clearing blockages. 2.3.11.2. Before checking, cleaning, or working on the machine. 2.3.11.3. Before changing from vacuum to blower or blower to vacuum. 2.3.12.
  • Page 10 3.2. Component parts. 3.3. Hardware bag contents. Page 10...

  • Page 11: Specifications

    4. SPECIFICATIONS HYBV200 Engine type 4 stroke OHV single cylinder Maximum output – hp/kw 6.5/4.8 Displacement - cc Ignition system Transistorised magneto Start method Recoil Fuel type/tank capacity - L Fresh straight unleaded petrol/3.6 Engine oil capacity - l Engine oil SAE15W-40 Engine size –...

  • Page 12: Assembly

    5. ASSEMBLY 5.1. Step One. 5.1.1. Attach right connecting tube (#22) and left connecting tube (#90) to the frame (#24) by using spacer (#17) and nylon lock nut M8 (#62). Do not tighten bolts. 5.1.2. Fix connecting tube (#22 & #90) with one side of right connecting rod (#3) and left connecting rod (#4) using hex bolt M8x45 (#54),...
  • Page 13 5.2. Step Two. 5.2.1. Attach ventilation pipe (#5) to the housing case (#26) by using hex bolt M10x20 (#56), flat washer Ø10 (#66). 5.3. Step Three. 5.3.1. Securely join the opening of the hopper (#42) to the ventilation pipe (#5) lock it, assemble the top on the four Pins of push handle (#29).

  • Page 14: Starting & Stopping The Machine

    1. When the handle is rotated clockwise, the vacuum snout will lower. 2. When the handle is rotated anti-clockwise the vacuum snout will rise. 3. After the lifting handle is clamped into the ‘U’ groove it makes sure that the vacuum snout assembly will not drop when in use. 6.
  • Page 15 6.2.5. Refit the fuel tank cap securely. 6.2.6. Wipe up any petrol that may have been spilt. 6.3. Discharge chute. Never operate the vacuum unless the bag is installed. An uncovered discharge opening will allow objects to be thrown in operator’s or bystander’s direction which may cause serious injury.
  • Page 16 6.5.8. Setting the engine speed. 6.5.8.1. Position the throttle lever (1) for the desired engine speed. 6.5.8.2. Moving the throttle lever in the direction shown makes the engine run faster or slower. 6.6. Stopping the engine. 6.6.1. To stop the engine in an emergency, simply turn the engine switch to the OFF position.
  • Page 17 6.9.1. Emptying the debris bag. 6.9.1.1. When the debris bag is full, empty it as follows: Note: You do not need to remove the bag to empty it. 6.9.1.2. Drive to the location where you want to dump the debris. 6.9.1.3.

  • Page 18: Troubleshooting

    7. TROUBLESHOOTING ENGINE TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Fuel valve OFF Move fuel lever to ON position Move choke lever to CLOSED Choke in OPEN position position unless engine is warm Engine switch is OFF Turn engine switch to ON position Fill with fresh straight unleaded Out of fuel petrol...

  • Page 19: Maintenance

    8. MAINTENANCE Improperly maintaining this engine, or failure to correct a problem before operation, can cause a malfunction in which you can be seriously hurt or killed. Always follow the inspection and maintenance recommendations and schedules in this owner's manual. Good maintenance is essential for safe, economical, and trouble-free operation.

  • Page 20: Maintenance

    8.2. Checking oil level, filling with oil. 8.2.1. Park the machine on a level surface and stop the engine. 8.2.2. Allow the engine to cool. 8.2.3. Clean around the oil dipstick 8.2.4. Pull out the dipstick (1) and wipe the end clean 8.2.5.
  • Page 21 8.4.4. Carefully remove the foam air filter from the cover (3). Wash the filter in warm, soapy water, rinse, and allow to dry thoroughly. 8.4.5. Wipe dirt from the inside of the air cleaner base and cover, using a moist rag. Be careful to prevent dirt from entering the air duct that leads to the carburetor.

  • Page 22: Storage & Transporation

    8.6.2. To make sure that the engine runs normally the gap of the spark plug must be correct ( and no carbon 0.7mm to 0.8mm) deposits around the spark plug. 8.6.3. Remove the spark plug cap. 8.6.4. Remove the spark plug using the supplied spark plug wrench.
  • Page 23 9.1.4. Change the engine oil. 9.1.4.1. Drain the used oil while the engine is warm. Warm oil drains quickly and completely. 9.1.4.2. Place a suitable container (1) below the engine to catch the used oil, then remove the filler cap/dipstick (2), drain plug (3), and washer.
  • Page 24 9.2.5. With the engine and exhaust system cool, cover the machine to keep out dust. A hot engine and exhaust system can ignite or melt some materials. DO NOT use sheet plastic as a dust cover. A nonporous cover will trap moisture around the engine, promoting rust and corrosion.

  • Page 25: Recycling & Product Disposal

    10. RECYCLING & PRODUCT DISPOSAL 10.1. We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries instead the responsibility to dispose of WEEE and or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.

  • Page 26: Declarations Of Conformity

    11. DECLARATIONS of CONFORMITY Genpower confirms that this product complies with the EC Directives listed below; 97/68/EC – Non Road Mobile Machinery Directive 2000/14/EC – Outdoor Noise Directive 2004/108/EC – Electro Magnetic Compatibility Directive 2006/42/EC – Machinery Directive Page 26...

  • Page 27: Contact Details

    12. CONTACT DETAILS POSTAL ADDRESS Genpower Ltd, Isaac Way, London Road, Pembroke Dock, Pembrokeshire, SA72 4RW TELEPHONE +44 (0) 1646 687880 +44 (0) 1646 686198 TECHNICAL E-EMAIL service@genpower.co.uk WEBSITE www.hyundaipowerequipment.co.uk 13. MANUAL UPDATES 13.1. Our manuals are constantly being reviewed and updated. However if should you find an error, omission or something you find unclear please contact your dealer for assistance.
