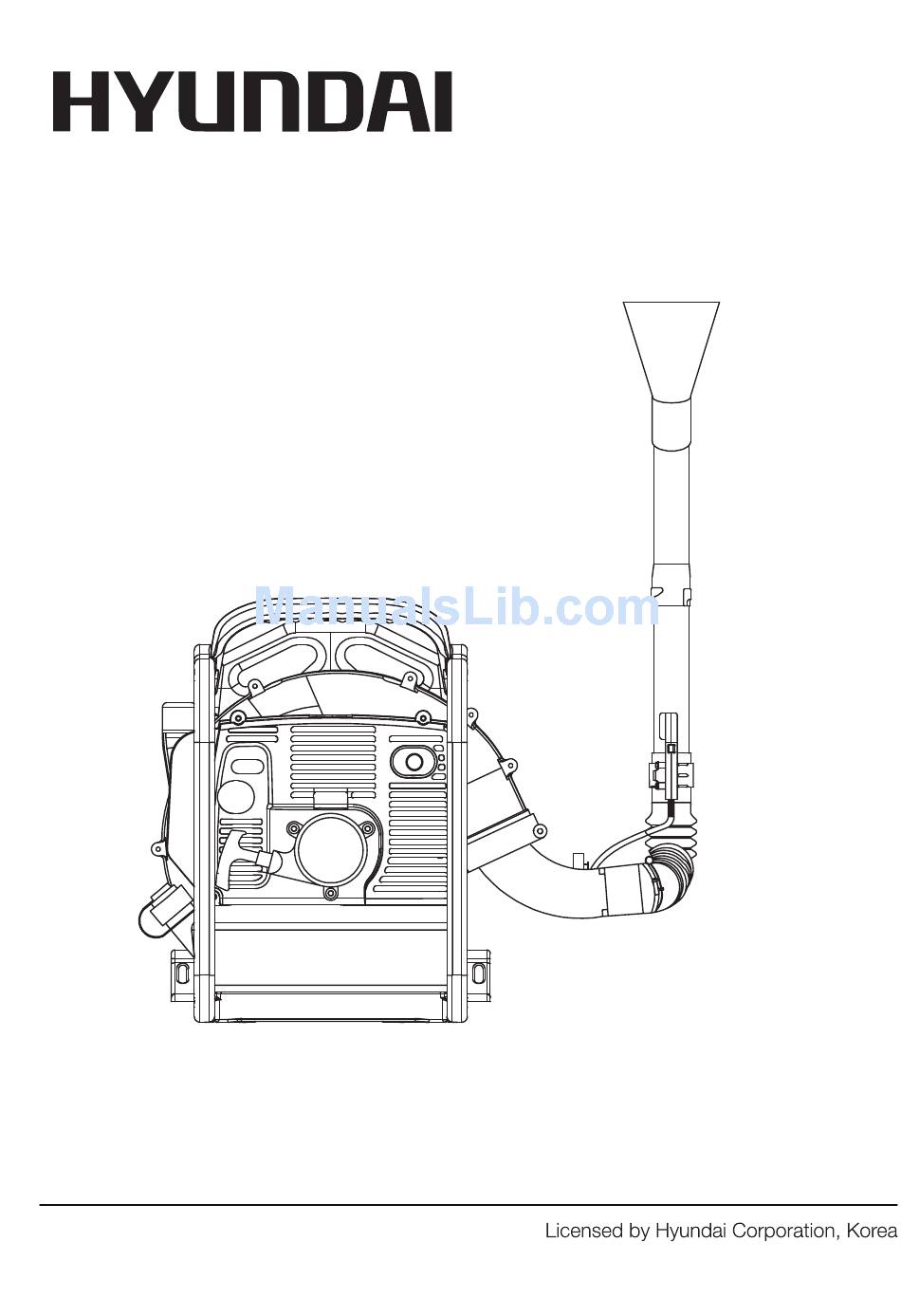

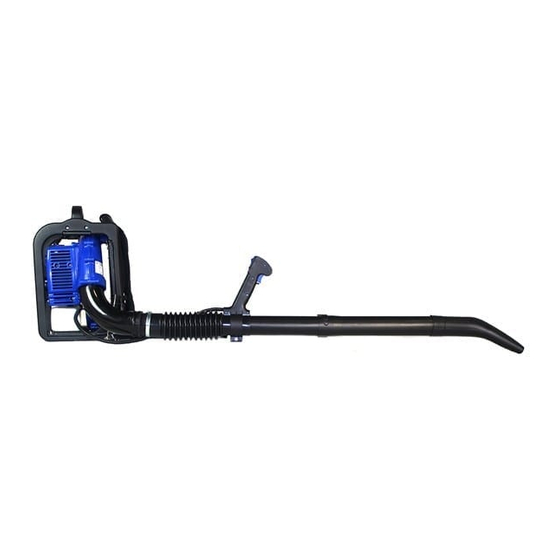

  • Page 1 LEAF BLOWER Model HYB60 User Manual...
  • Page 2 Page 2 Rev 2...

  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY 4 - 7 2. COMPONENT LOCATIONS 3. ASSEMBLY 9 - 10 4. FUELLING 10 - 11 5. STARTING AND STOPPING THE ENGINE 11 - 12 6. OPERATING INSTRUCTIONS 7. MAINTENANCE 14 - 18 8. SPECIFICATIONS 9. DECKARATIONS OF CONFORMITY Page 3 Rev 2...

  • Page 4: Safety

    1. SAFETY. 1.1. The operator of the machine is responsible for and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Please note the following safety points 1.1.2.
  • Page 5 1.3. Carbon monoxide. 1.3.1. Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.3.2. The symptoms of Carbon monoxide poisoning can include but not limited to the following; 1.3.2.1.
  • Page 6 1.4.7. Dispose of waste fuels correctly. 1.4.8. Petrol safety. 1.4.8.1. Always fuel and defuel in well-ventilated area. 1.4.8.2. Always wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are as follows, but are not limited too. 1.4.8.3.
  • Page 7 1.5.6. You must be fit to work with a blower: 1.5.6.1. You should not operate the machine if you are not well or physically unable. if you get tired, take a break in good time 1.5.6.2. Do not operate the blower if you are under the influence of any substance (drugs, alcohol, etc.) which might impair vision, dexterity or judgment.

  • Page 8: Component Locations

    2. COMPONENT LOCATION 1. HT Lead/Spark Plug 2. Choke 3. Air filter cover 4 Recoil starter handle 5. Fuel tank cap 6. Fuel tank 7. Exhaust 8. Blower outlet 9. Control lead 10. Frame 11. Backpack harness assembly 12. HT Lead 13.

  • Page 9: Assembly

    3. ASSEMBLY 3.1. Remove all contents from packaging as follows; 3.1.1. Unit complete with control handle x1. 3.1.2. Flexible tube x 1. 3.1.3. Flattened blower tube x 1. 3.1.4. Extension tube x 2. 3.1.5. Handbook. 3.1.6. Tool kit - 1 x Spark plug spanner c/w screwdriver handle, 1 x Allen key. 3.1.7.

  • Page 10: Fuelling

    3.4. Adjusting the harness straps. 3.4.1. Pull the ends of the straps (1) downward to tighten the harness. 3.5. Loosening the harness straps. 3.5.1. Lift the tabs (2) of the two sliding adjusters. Adjust the straps so that the back-plate is held firmly and comfortably against your back. 4.

  • Page 11: Starting And Stopping The Engine

    4.4. Fuel tank maintenance. 4.4.1. Empty fuel tank once every year by draining the fuel tank. 4.4.2. Remove fuel cap (1) then use a hook to pull the fuel filter body (2) out of the tank and take it off the hose. 4.4.3.
  • Page 12 5.2. When engine begins to fire: 5.2.1. If engine is cold: 5.2.1.1. Turn choke knob to the open position (2) and continue cranking until engine runs. 5.2.2. If engine is warm: 5.2.1.2. Continue cranking until engine runs. 5.2.3. As soon as engine runs: 5.2.3.1.

  • Page 13: Operating Instructions

    6. OPERATING INSTRUCTIONS 6.1 During running-in period. 6.1.1. A new machine should not be run at high revs (full throttle off load) for the first three tank fillings. This avoids unnecessary high loads during the break-in period. As all moving parts have to bed-in during the running-in period, the friction resistances in the engine are greater during this period.

  • Page 14: Maintenance

    7. MAINTENANCE 7.1. Minimise Wear and Avoid Damage 7.1.1. Observing the instructions in this manual helps reduce the risk of unnecessary wear and damage to the machine. 7.1.2. The machine must be operated, maintained and stored with due care and attention, described in this owner's manual.
  • Page 15 7.2. Maintenance Work. 7.2.1. All the operations described in the "Maintenance Chart" must be performed on a regular basis. If these maintenance operations cannot be performed by the owner, they should be performed by an authorised servicing dealer. 7.2.2. If these operations are not carried out as specified, the user assumes responsibility for any damage that may occur.
  • Page 16 7.5.2. Standard setting carburettor with limiter caps 7.5.2.1. Shut off the engine. 7.5.2.2. Screw down the high speed screw (H) and low speed screw (L) counter clockwise as far as stop (no more than 1/4 turn). 7.5.3. Carburettor without limiter caps. 7.5.3.1 Shut off the engine.
  • Page 17 7.7. Engine running erratically. 7.7.1. If engine is running erratically and is unsatisfactory even though the air filter is clean and the carburettor properly adjusted, the cause may be in the exhaust. 7.7.2. Have the exhaust checked for contamination (coking) by dealer. 7.8.

  • Page 18: Specifications

    7.10. Tensioning rewind spring. 7.10.1. Make a loop in the unwound starter rope and use it to turn the rope rotor six full revolutions in the direction of the arrow (see illustration). 7.10.2. Make a loop in the unwound starter rope and use it to turn the rope rotor six full revolutions in the direction of the arrow (see illustration).

  • Page 19: Deckarations Of Conformity

    9. DECLARATIONS OF CONFORMITY Genpower Ltd confirms that this Hyundai petrol leaf blower conforms to the following CE directives; 2006/42/EC Machinery directive 2004/108/EC EMC directive 2000/14/EC Noise emissions directive 97/68/EC NRMM Emissions directive E C D E C L A R A T I O N O F C O N F O R M I T Y...
  • Page 20 GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 e: info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk...
