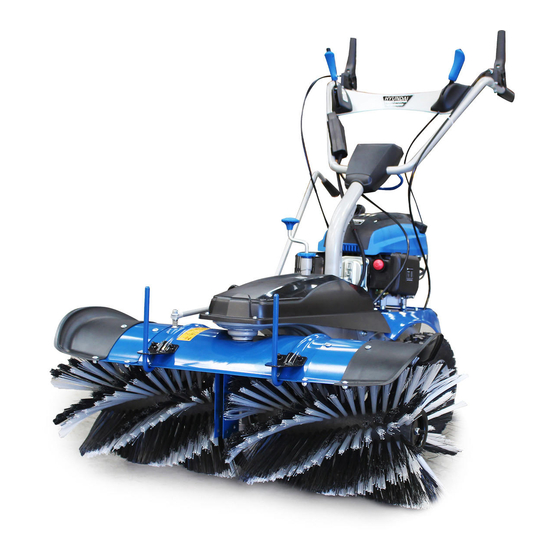

Hyundai HYSW1000 User Manual

Petrol sweeper
Hide thumbs
Table of Contents

Advertisement

Quick Links

PETROL SWEEPER
HYSW1000
User
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYSW1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai HYSW1000

Summary of Contents for Hyundai HYSW1000

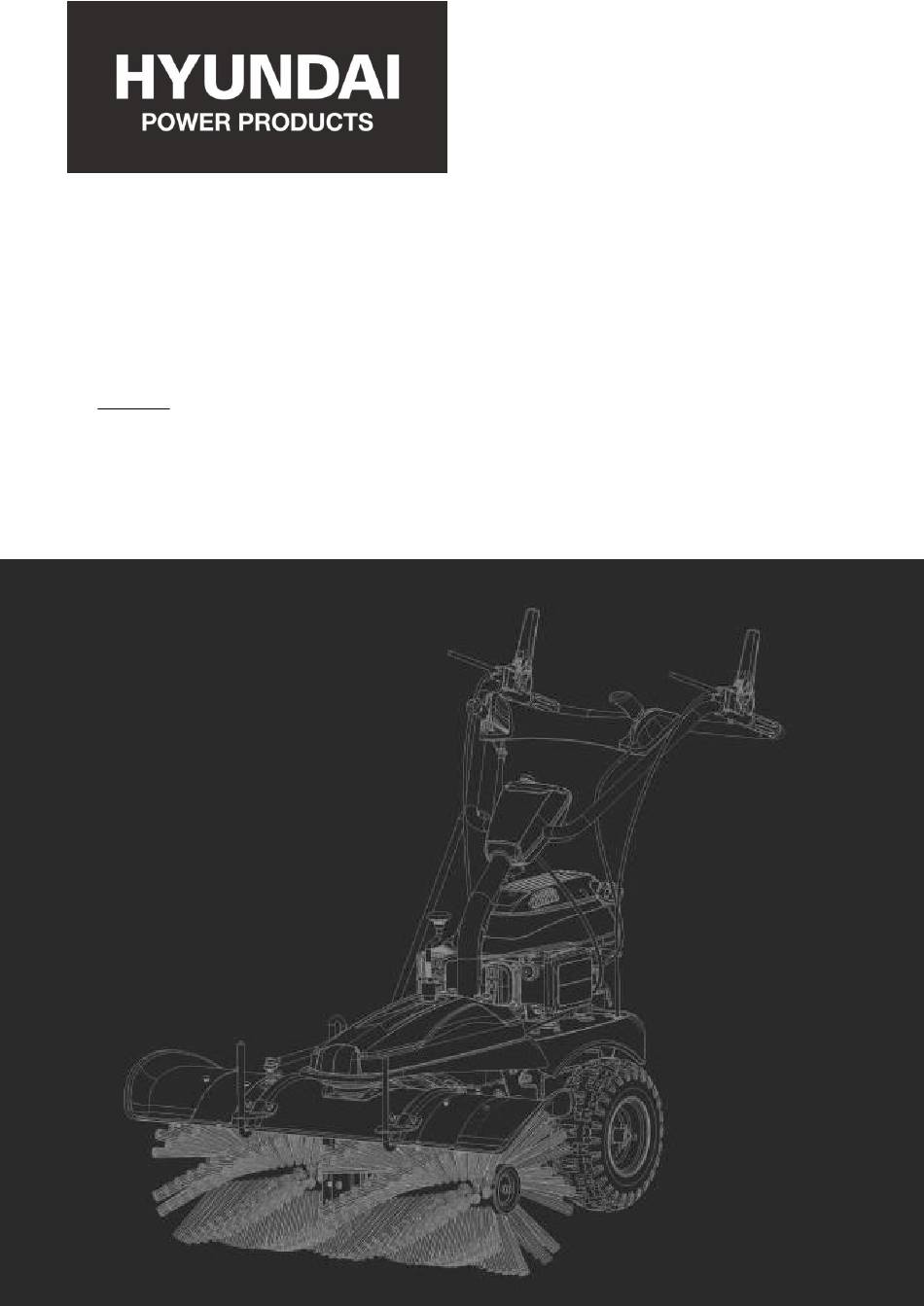

  • Page 1 PETROL SWEEPER HYSW1000 User Manual...

  • Page 2: Table Of Contents

    INDEX CONTENTS PAGE NO.S SAFETY 3 - 8 PART LOCATIONS ASSEMBLY 10 - 11 PRE OPERATION CHECKS 12 - 14 STARTING PROCEDURE 15 - 16 STOPPING PROCEDURE OPERATING PROCEDURE 17 - 21 MAINTENANCE 22 - 26 TROUBLE SHOOTING SPECIFICATION DECLARATION OF CONFORMITY RECYCLING AND PRODUCT DISPOSAL CONTACT DETAILS MANUAL UPDATES...

  • Page 3: Safety

    1. SAFETY General Safety Notes. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user.
  • Page 4 1.10 Carbon Monoxide (where applicable). 1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
  • Page 5 1.20 General Fuel Safety (where applicable). CAUTION ALL FUELS ARE FLAMABLE Fire Hazard – keep fuel away from all sources of ignition for example heaters. 1.21 Lamps, sparks from grinding or welding. DO NOT carry out hot work on tanks that have contained fuel. 1.22 1.23 ALWAYS keep the work area tidy.
  • Page 6 1.46 All trailing cables should be routed so as not to cause any kind of trip hazard. 1.47 NEVER work on or near electricity with wet hands, wet clothing and wet gloves. 1.50 Batteries (where present). 1.51 Batteries present a risk if they become damaged by the possible leaking of electrolyte.
  • Page 7 recommended to observe the condition of your hands and fingers. Seek medical attention immediately if any of the above symptoms should occur. 1.70 Noise (where applicable). 1.71 The operating noise of the machine can damage your hearing. Wear hearing protection such as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to have hearing checked regularly.
  • Page 8 1.92 NEVER allow children or anyone unable to fully understand the directions given in this manual to operate this product. 1.93 Make sure you keep this manual handy so you may refer to it whenever questions arise and ensure you pass this manual on if the machine is loaned or sold. 1.94 Correct Personal Protective Equipment (PPE) MUST be worn at all times when operating or repairing this machine.

  • Page 9: Part Locations

    2. PART LOCATIONS Drive Clutch Lever Brush Direction Adjustment Lever Brush Speed Adjustment Lever Brush Height Adjustment Lever Brush Working Clutch Lever Forward / Reverse Shift Lever Engine Speed Adjustment Lever Rear Wheels Electric Key Start Support Wheel Handle Height Adjustment Lever Brush...

  • Page 10: Assembly

    3. ASSEMBLY CAUTION Use caution when unpacking this machine. Some components are heavy and will require additional assistance or mechanical handling equipment. Attach the handle to the handle fixing plate on the sweeper using the nuts provided. Handle Handle Fixing Plate Attach the brush steering lever to the front of the machine.

  • Page 11: Assembly

    Install the shift lever to the rear of the sweeper. NOTE: You should install the shift lever into position ‘1’ for new machines. After 100 hours or if as you become more comfortable with the machine speed, you can adjust the lever to position ‘2’ or ‘3’. Slide the brush assembly over the drive shaft on either side of the sweeper and locate the drive pin into the cut out on the brush shaft.

  • Page 12: Pre Operation Checks

    4. PRE OPERATION CHECKS CAUTION This machine is shipped without fuel or oil. You MUST fill the machine BEFORE use or you may cause damage to the machine that will not be covered by the warranty. WARNING ALL fuels are flammable and should be handled with care. Wipe up any spills immediately.
  • Page 13 ADDING FUEL CAUTION ALL FUELS ARE FLAMMABLE ALWAYS fuel and defuel in a well ventilated area outside of buildings. ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are but not limited to safety gloves, overalls and eye protection. CAUTION DO NOT overfill the fuel tank, you MUST allow space for fuel expansion.
  • Page 14 CHARGING THE BATTERY NOTE Charging time: 5 Hours 3.16 For electric start models, the battery must be charged before use. 3.17 Connect the charging plug to the battery using the charging port located at the back of the sweeper. 3.18 Plug the other end of the charger into a standard 3 pin wall socket and turn on to charge.

  • Page 15: Starting Procedure

    5. STARTING PROCEDURE WARNING This machine is shipped without fuel or oil. You MUST fill the machine BEFORE use or you may cause damage to the machine that will not be covered by the warranty. RECOIL START For cold start, press the primer bulb 5 to 6 times. For warm start move straight to 4.1.
  • Page 16 ELECTRIC START For cold start, press the primer bulb 5 to 6 times. For warm start move straight to 4.7. Push the engine speed adjustment lever to the ‘CHOKE’ position. Turn the ignition key until the engine tries start. Move the engine speed adjustment lever to the ‘START’ position. 4.10 Turn the ignition key again, until the engine fires.

  • Page 17: Stopping Procedure

    6. STOPPING PROCEDURE Release the brush and drive clutch lever. Allow the engine to idle for 20 seconds. Move the engine speed adjustment lever to the ‘OFF’ position. Turn the ignition key to the ‘OFF’ position. 7. OPERATING INSTRUCTIONS CAUTION ALWAYS check the oil and fuel level BEFORE operation.
  • Page 18 Brush Height Adjustment To adjust the brush height. Undo the locking ring by turning anti-clockwise. Turn the brush height adjuster up or down depending on the brush height you require. Once the desired height has been reached, retighten the locking ring to lock the brush height in to place.
  • Page 19 Brush Activation To activate the brush, press down on the brush working clutch lever on the left handlebar. Release the lever to stop the brushes. Brush Working Clutch Lever Brush Speed Adjustment Press down the button on the brush speed adjustment lever and move the lever forwards or backwards to increase or decrease the brush speed.
  • Page 20 Forward/Reverse Lever 6.13 Once the correct gear has been selected, push down on the driving clutch lever on the right handlebar to engage the sweepers drive. 6.14 Release the drive clutch lever to stop the drive. Drive Clutch Lever 6.15 DO NOT sweep up explosive liquids, combustible gasses or undiluted acids or solvents.
  • Page 21 6.24 Prior to starting work, the operator must ensure that all protective devices are properly installed and function correctly. 6.25 The operator of the machine is liable for accidents with other individuals or their property. 6.26 Ensure the correct Personal Protective Equipment (PPE) is worn at all times when operating the machine.

  • Page 22: Maintenance

    8. MAINTENANCE WARNING Before performing any maintenance procedure or inspection, stop the engine and allow to cool for 30 minutes. ALWAYS work in a well ventilated area away from any sources of ignition. ALWAYS wear the appropriate Personal Protective Equipment (PPE) when carrying out any maintenance.
  • Page 23 THE SPARK PLUG You MUST allow the engine to cool down before carrying out any maintenance. Always replace with the same model spark plug as fitted. To check spark plug, remove spark plug cap and remove spark plug. Spark Plug Spark Plug Visually inspect the spark plug and spark plug washer.
  • Page 24 AIR FILTER CAUTION A dirty air filter will restrict the air flow to the carburetor, which will reduce engine efficiency. When using the lawnmower in very dusty areas you must clean or replace the air filter more often. Never operate machine without the air filter being fitted it can cause damage to the engine, which is not covered by warranty.
  • Page 25 FUEL & CARBURETOR CAUTION ALL FUELS ARE FLAMMABLE ALWAYS fuel and defuel in a well ventilated area outside of buildings. ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are but not limited to safety gloves, overalls and eye protection. 7.13 The use of old or stale fuel will impair starting and running of the machine.
  • Page 26 CAUTION Drain the oil while the engine is WARM not HOT. Warm engine oil drains more quickly and completely. 7.20 Oil Type: Semi-Synthetic SAE 15W-40 Engine Oil. 7.21 Oil capacity: 600ml 7.22 Place the sweeper on a flat level surface. 7.23 Clean around the oil filler and remove the oil cap and dipstick.

  • Page 27: Trouble Shooting

    9. TROUBLE SHOOTING NOTE Where necessary, all corrective actions should be carried out by suitably qualified persons. Problem Possible Cause Possible Corrective Action Incorrect speed control lever ad- Adjust speed control lever justment Fuel tank is empty Fill fuel tank Engine does not start Stale fuel Drain carburetor float bowl refill with...

  • Page 28: Specification

    10. SPECIFICATION Model Number HYSW1000 Engine Hyundai IC175VE 4 Stroke Engine Power – cc Fuel Type Unleaded Petrol Fuel Tank Capacity – ml 1000 Oil Type SAE15W40 Oil Capacity – ml Engine Speed – rpm 2800 Working Width – mm 1000 Brush Speed –...

  • Page 29: Declaration Of Conformity

    97/68/EC_2010/26/EC NRMM Emissions Directive EC DECLARATION OF CONFORMITY The undersigned. As authorised by: Genpower Ltd Declares that the following equipment manufactured is licensed by Hyundai Corporation, Korea Conforms to the Directive:- 2000/14/EC (as amended) Of the European Parliament and of the council on the approximation of the laws of the Member States relating to the noise emission in the environment by equipment for the use outdoors.

  • Page 30: Recycling And Product Disposal

    12. RECYCLING & PRODUCT DISPOSAL We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries instead the responsibility to dispose of WEEE and or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.

  • Page 31: Manual Updates

    10.0 POSTAL ADDRESS: Genpower Ltd Isaac Way, London Road, Pembroke Dock, Pembrokeshire, SA72 4RW. UK. 10.1 TELEPHONE: +44 (0) 1646 687880 10.2 FAX: +44 (0) 1646 686198 10.3 E-MAIL: aftersales@genpower.co.uk 10.4 WEBSITE: www.hyundaipowerequipment.co.uk 14. MANUAL UPDATES 11.0 Our manuals are constantly being reviewed and updated. Should you find an error, omission or something you find unclear, please contact your dealer for assistance.
