Summary of Contents for Wilfa Cool 7

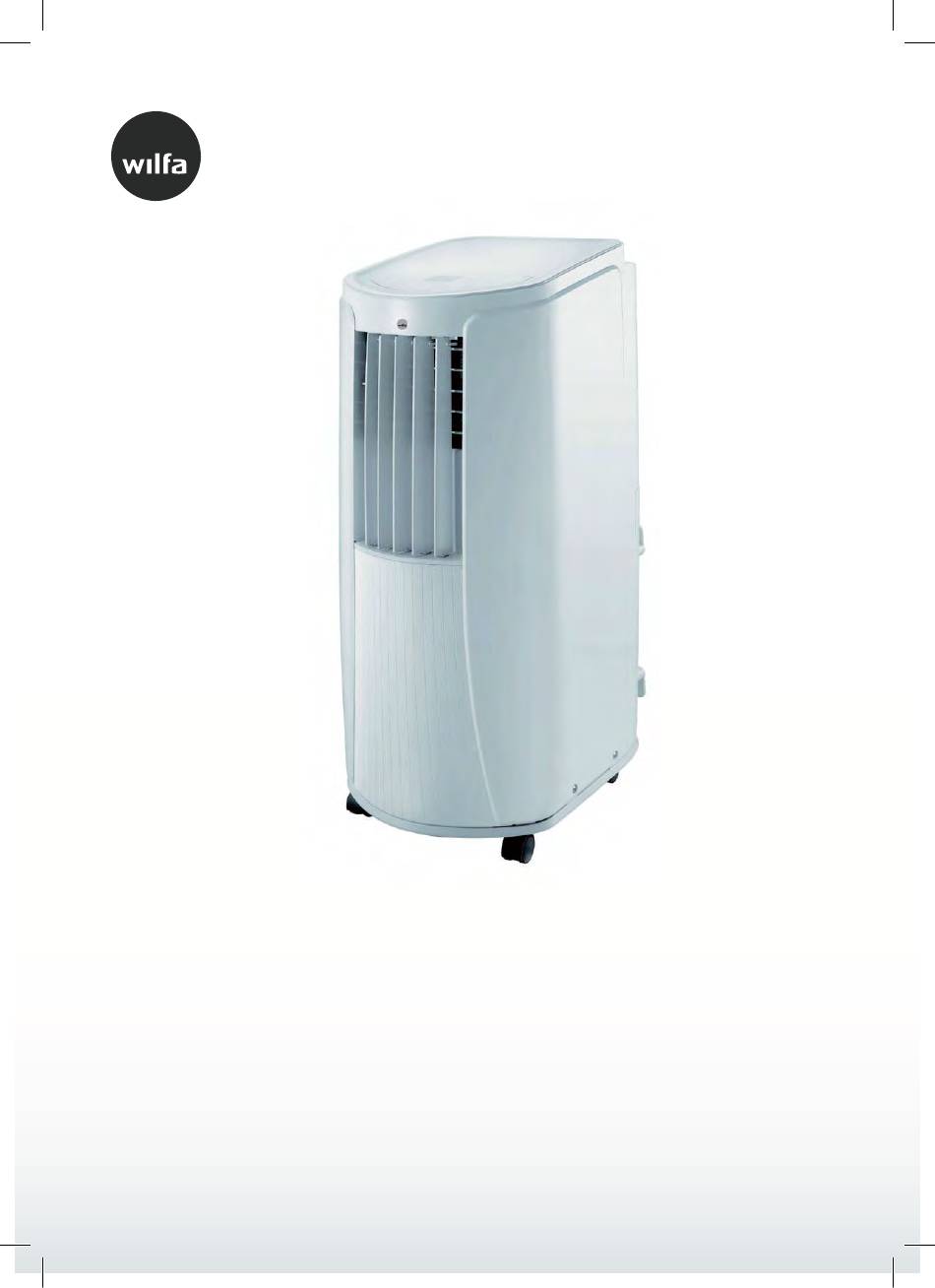

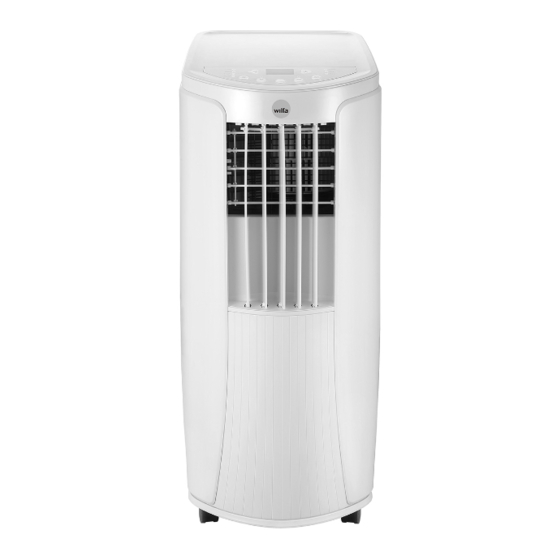

- Page 1 Wilfa Air Conditioner Bruksanvisning Bruksanvisning Betjeningsvejledning Käyttöohje Operating Instructions Cool 7 , Cool 12...
-
Page 2: Table Of Contents
Operation Environment ............Parts·description ..............Use for air conditioner ............. Operation Introduction for Control Panel ....... Buttons on Remote Controller ..........Introduction for Icons on Display Screen ........ Introduction for Buttons on Remote Controller ...... Function Introduction for Combination Buttons ..... Operation Guide .............. - Page 3 SAFETY INSTRUCTIONS • Aside from cleaning, all service should be carried out by an authorised service centre. Only authorised service personnel should carry out repair work. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance...
-
Page 4: Operation Environment
OPERATION ENVIRONMENT • The air conditioner must be operated within the temperature range: 16°C ~ 35°C. • The appliance is for indoor use only. • The appliance must be positioned so that the plug is accessible. • This air conditioner is for domestic, non-commercial use only. •... -
Page 5: Parts·description
PARTS·DESCRIPTION ➊ Controller panel ➊ Guide louver ➋ ➋ Swing louver ➌ Castor ➍ ➌ ➎ Wire-fixing hook Plug of power cord ➏ Filter ➐ ➑ Air inlet Joint A ➒ Heat discharge pipe ➓ Joint B+C ➍ ➐ ➒ ➓... -
Page 6: Use For Air Conditioner
USE FOR AIR CONDITIONER To change air flow direction 1. Up/down air flow direction • Hold the horizontal louvers as shown in the diagram and adjust the air flow direnction. • Do not adjust the horizontal louvers to the lowest or the highest position in the COOL or DRY mode with the fan speed set to Low for an extended period of time, Condensation may form on the louvers. -
Page 7: Operation Introduction For Control Panel
OPERATION INTRODUCTION FOR CONTROL PANEL Name of control panel Dual-8 nixie tube + / - button Cool mode indicator Health indicator(Optional) Dry mode indicator Fan mode indicator Fan speed indicator Mode button Sleep button Timer button Fan button ON/OFF button Operation of control panel NOTICE: •... -
Page 8: Buttons On Remote Controller
4. Fan button Press this button and the fan speed will circulate as “low speed→ medium speed → high speed → auto fan → low speed”. 5. Timer Press timer button to enter into timer setting mode. Under this mode, press "+" or "-"... -
Page 9: Introduction For Icons On Display Screen
INTRODUCTION FOR ICONS ON DISPLAY SCREEN Timer on Timer off Sending signal X-fan operation Cool operation Sleep operation Dry operation Lock Fan operation Set speed Set temperature Set timer INTRODUCTION FOR BUTTONS ON REMOTE CONTROLLER Note: • This is a general use remote controller, it could be used for the air conditioners with multifunction;... - Page 10 • When selecting dry mode, air conditioner will operate at low fan speed. In dry mode, fan speed can’t be adjusted. • When selecting fan mode, air conditioner will operate in fan mode only. Then press FAN button to adjust fan speed. 3.
-
Page 11: Function Introduction For Combination Buttons
• When unit is off, press this button to set Timer On. T-ON and H icon will be blinking. Within 5s, press + or - button to adjust the time for Timer On. Pressing + or - button once will increase or decrease the time by 0.5h. Holding + or - button for 2s, time will change quickly. -
Page 12: Clean And Maintenance
NOTICE: • During operation, point the remote control signal sender at the receiving window on unit. • The distance between signal sender and receiving window should be no more than 8m, and there should be no obstacles between them. • Signal may be interfered easily in the room where there is fluorescent lamp or wireless telephone;... - Page 13 • Do not dry the filter with fire or hair drier. Otherwise, it may be deformed or catch fire. Clean heat discharge pipe Remove the heat discharge pipe from air conditioner, clean and dry it, and then reinstall it. (For the method of installation and removal, please refer to the instruction for ”Installation and disassembly of heat discharge pipe”...
-
Page 14: Malfunction Analysis
MALFUNCTION ANALYSIS Please check below items before asking for maintenance. If the malfunction still can’t be eliminated, please contact local dealer or qualified professionals. - Page 15 Phenomenon Troubleshooting Solution Power failure? Wait after power recovery. • • Connected to power? Reinsert the plug. • • Has the air switch tripped Ask for professional help to • • off or has the fuse been replace air switch or fuse. Air conditioner blown? can’t operate...
- Page 16 Phenomenon Troubleshooting Solution Is the air outlet or air inlet Eiminate the obstacles. • • No fan blowed blocked? out from air conditioner Is the air filter unclean? Clean air filter • • Has the unit been set to Temperature can’t be •...
-
Page 17: Installation Precaution
Malfunction of evaporator Please contact professional person to deal temperature sensor. with it. 1. Refrigerant is leaking 1. Re-energize the unit after turning off and 2. System is blocked pulling out the plug for 30min; 2. If there’s still malfunction, please contact after-sales service. - Page 18 Selection of installation location Basic requirement Installing the unit in the following places may cause malfunction. If it is unavoidable, please consult the local dealer: 1. The place with strong heat sources, vapors, flammable or explosive gas, or volatile objects spread in the air. 2.
-
Page 19: Preparation Before Installation
PREPARATION BEFORE INSTALLATION Note: check if the accessories are available before installation. Accessory list heat discharge joint A joint B joint C Adapter (1) pipe wire hook (2) screw (3) pipe clip rubber plug pipe hoop (2) battery (2) drainage pipe remote controller user’s manual (AAA 1.5V) -
Page 20: Install Wire Hook
INSTALL WIRE HOOK • Assemble the wire hook at the back of the unit with screws (the direction of wire hook is as shown in following fig). direction of wire hook is upward wire hook screw direction of wire hook is downward •... -
Page 21: Removing Collected Water
REMOVING COLLECTED WATER There are 2 ways to remove collected water: ➊ Use drainage option from the bottom hole. Note: When using drainage option from the bottom hole, install drainage pipe before using, otherwise poor drainage will affect normal operation of the unit. Instructions for drainage pipe installation as follows: 1. - Page 22 4. Put the rubber plug into the other side of drainage pipe, fix it with pipe hoop and then fix it in the drainage pipe clip. rubber plug pipe hoop drainage pipe clip drainage pipe pipe hoop Drainage way as follows: 1.
- Page 23 ➋ Use the continuous drainage option from the middle hole. Note: Water can be automatically emptied into a floor drain by attaching 14mm inner diameter hose (not included). 1. Remove the continuous drain cap 1 by turning it counter clockwise then remove the rubber stopper 2 from the spout.
-
Page 24: Installation And Disassembly Of Heat Discharge Pipe
INSTALLATION AND DISASSEMBLY OF HEAT DISCHARGE PIPE Install heat discharge pipe 1. Rotate joint A and joint B clockwise into the two ends of heat discharge pipe. clockwise joint B+C clockwise heat discharge pipe joint A clasp the side with ”TOP” is upwards groove 2. - Page 25 Note of Installingheat discharge pipe In order to improve cooling efficiency, the heat discharge pipe should be as short as possible and flat without curve to ensure smooth heat discharge. correct correct correct wrong • The length of the heat discharge pipe is less than 1m. It is recommended to use it with shortest length.
- Page 26 • Correct installation is as shown in figure (When installing it on wall, height of hall should be about 40cm-130cm from floor). • Wrong installation is shown in following figure (If the pipe is bent too much, it would easily cause malfunction.) Disassemble heat discharge pipe 1.
-
Page 27: Electric Schematic Diagram
ELECTRIC SCHEMATIC DIAGRAM Cool 7 Cool 12... - Page 29 If in future you need to discard this product, please do not throw it out with your normal rubbish. Please send this product to a collection point where one is available. AS WILFA Industriveien 25 1481 Hagan wilfa.com...
