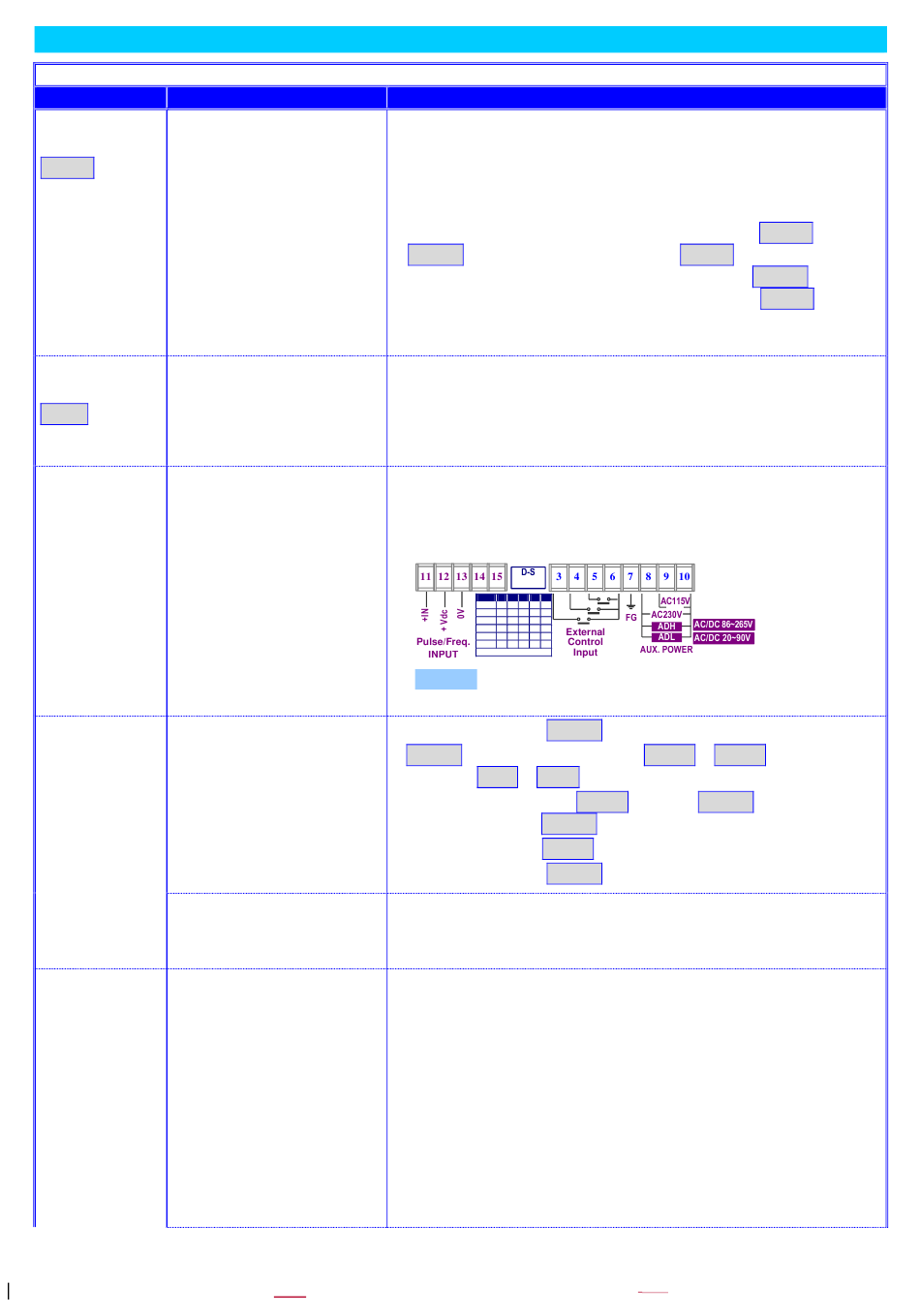

TROUBLE SHOOTING
■
Display Issue:
PROBLEM CHECKING LIST
Display 1.To inspect the input
shows range of meter whether
did match with range in
ovfl
the field or not?
Display 1.To inspect whether did
shows the wires connecting
0 and correct and secure or
not?
didn't change
2.To inspect whether did
the amplitude of pulse
correct or not?
Incorrection 1.To inspect the settings of
display value relation parameters
or out of whether did it correct or
accuracy not?
2.To inspect the fine
adjustments of PV is
changed or not?
Jittery 1.To inspect the input
Display signal and it jittery.
32 / 39
A.The input range of CS2-RL(F) is 0.01~100kHz(optional:
0.01~140kHz). Please make sure input of field is between
this range.
B.Please check the setting of [range] function whether did it
correct or not?
If user sets the [range](A-11)function to be
manul, the display maybe shows
frequency is over so that the display is over 99999(with
decimal point). Please change the setting to
decimal point will be auto changed according to the input
frequency.
A.Please checks carefully the connection diagram of label on
the meter. There are 3 terminals for signal(+), signal(-) and
excitation power supply(+). Please confirm that are correct.
B.Please uses the terminals(cord end terminal) to avoid the risk
of insecure.
A.Please check the auxilliary power of sensor and output level.
The input amplitude of meter can be changed by the dip
switchs on rear of meter. Please refer to the drawing as
below,
D-S 1 2 3 4 5
NPN
PNP
M.C.
5V
P
12V
P
24V
P
D-S is on when it is in down site
*Remark: The meter builds in a excitation power for sensor
that can not be changed. Please specified in ordering code.
A.Please check the pVtyp(A-01) whether did it correct or not?
lNspd(Linearly Line Speed),
Speed),
Linearly Line Speed:
Rotation Speed:
B.Please check the factr(A-04) whether did it correct or not?
Please check the [pVspn](A-05) in [input group] whether
did the values correct or not?
The [pVspn]can be cleared in [Sclr](A-06).
A.Please check the installation of sensor whether did it balance
and stable or not? The vibration of sensor will make the
signal unstable.
B.If the input signal is jittery continuously, please set higher
value in [ avg](A-12).
C.If the input signal is jittery uncertain period that caused by the
inductive load actions, please set higher value in
[Dfilt](A-13).
D.Please does not lay the wires of input together with
high-voltage lines or power lines. As a general rule, wire the
meter in a separate system, use an independent metal
conduit, or use shielded cable.
