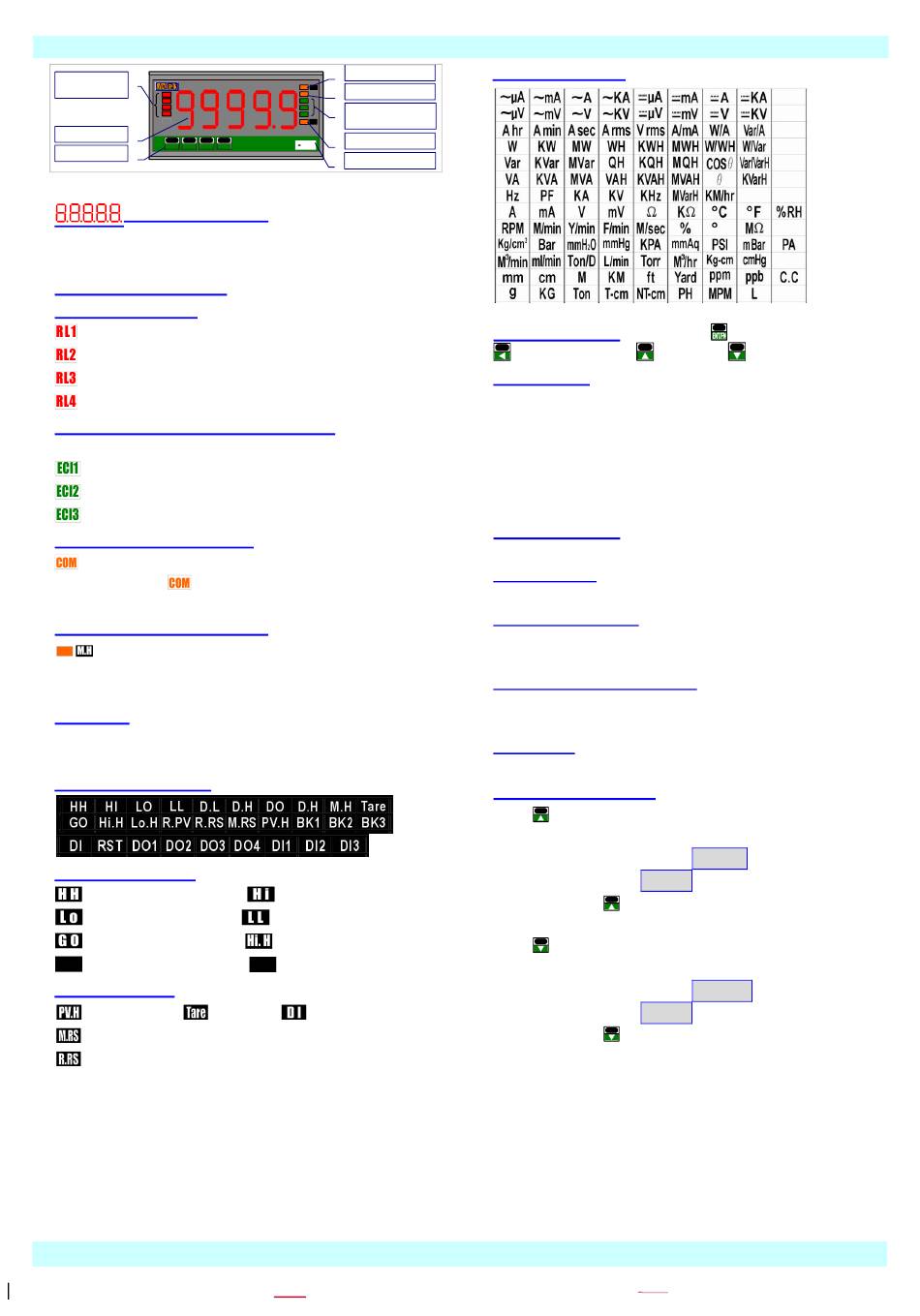

Front Panel

Relay status
Indication
R L 1
RL2
2
RL3
RL4
Display screen
? ?
ENT/FN
Operation Key

Numeric Screens
0.8"(20.0mm) red high-brightness LED for 5 digital
present value.

I/O Status Indicators

Relay Energized: 4 square red LED
display once Relay 1 has been energized;
display once Relay 2 has been energized;
display once Relay 3 has been energized;
display once Relay 4 has been energized;
 External Control Input Energized: 3 square green
LED
display once ECI.1 has been closed(dry contact)
display once ECI.2 has been closed(dry contact)
display once ECI.3 has been closed(dry contact)
 RS485 Communication: 1 square orange LED
will flash when the meter is receive or send
data, and flash quickly means the data
transient quicker.
 Max/Mini Hold indication: 2 square orange LEDs
displayed: To display function which
expressed it has been selected in Maximum or
Minimum Hold function.

Stickers:
Each meter with a sticker to describe what are the
functions and engineer label enclosure.
Functions stickers

Relay energized:
HH Energized
Lo Energized
Go Energized
D O
RS485 Energized
 ECI functions:
PV Hold
Maximum or Minimum Reset
Reset fo Relay Latch
■

Operating Key:

12 / 39
Max. Hold status
M.H
Comm. status
CO M
CI11
Control Input
CI2
CI3
status
M.H
Mini. Hold status
mA
?
Engineer Unit
Hi Energized
LL Energized
Hi Energized & Latch
Lo. H
Lo Energized & Latch
Tare Digital Input
CS2 SERIES –OPERATION
 Engineer Label: over 80 types.

Operating Key: 4 keys for
Shift(Escape) /

Pass Code:
Settable range:0000~9999;
User must key-in the exactly pass cord for access
to [Programming Level]. Otherwise, the meter
will return to measuring page. If user forget the
pass code, please contact with your service
window.

Function Lock: There are 4 levels
programmable.
none(None): no lock at all. User can access to all

level for checking and setting.
user(User Level): User Level lock. User can

access to User Level for checking, but can not
setting.
eng(Programming Level): Programming level

lock. User can access to programming level for
checking, but can not setting.
all(ALL): All lock. User can access to all level for

checking but can not setting.

Front Key Function

The Key can be set to be the same function as
the setting of [ecI1](ECI).
Ex. The [ecI1] set to be pVhld and the function
[E1=up] set to be
user presses Key, the PV will hold as like as
terminals of ECI1 close.
 The Key can be set to be the same function as
the setting of [ecI2].
Ex. The [ecI2] set to be reL.pv and the function
[E2=dn] set to be
user presses Key, the PV will show relative
value as like as terminals of ECI2 close.

If the front key function has been set, the
terminal input for ECI will be disabling.
