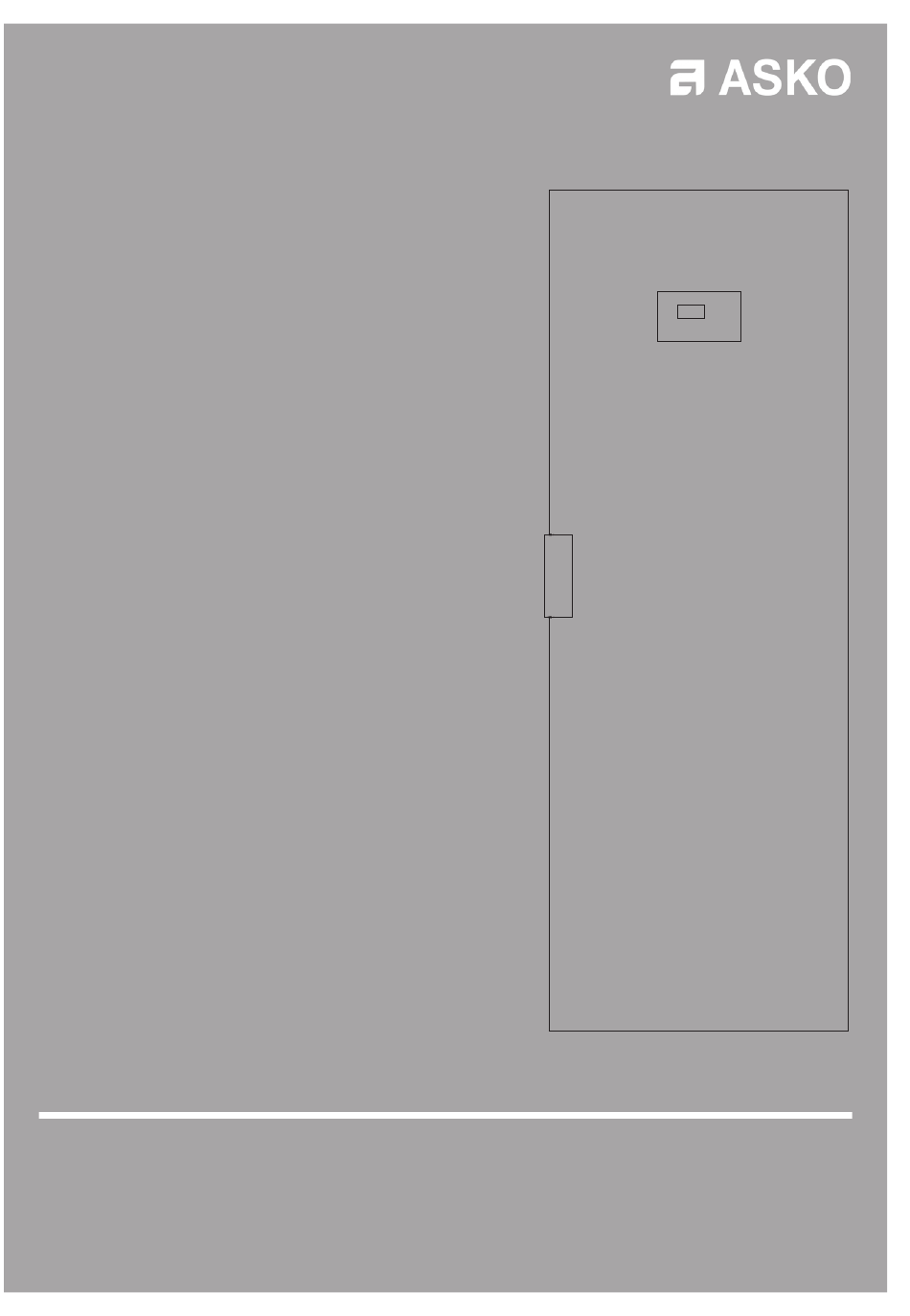

- Page 1 USER MANUAL Drying cabinet DC7774V DC7784V Read the user manual before using the machine...
- Page 2 Congratulations on the choice you have made, and welcome to the ASKO family, a global family with its roots in Sweden. We at ASKO thank you for your trust and hope that you will enjoy using your new drying cabinet.
-
Page 3: Table Of Contents
CONTENTS IMPORTANT SAFETY INFORMATION 4 SETTING DRYING PROGRAMMES Programming mode FOR A GOOD ENVIRONMENT Parameter list Packaging materials Adjustment Management of end-of-life drying cabinet Procedure COMPONENTS Restoring to factory setting Control panel CARE Language Cleaning PLACEMENT Service INSTALLATION OVERHEAT CUT-OUT Unpacking TROUBLESHOOTING Rehanging of door... -
Page 4: Important Safety Information
If the power cord is damaged, it must be immediately re- placed, and this must be done only by the manufacturer, the manufacturer's service agent or similarly qualifi ed persons in order to prevent danger. Follow ASKO instructions in repair and replacement of parts... -
Page 5: For A Good Environment
FOR A GOOD ENVIRONMENT PACKAGING MATERIALS PACKAGING MATERIALS MANAGEMENT OF END-OF-LIFE MANAGEMENT OF END-OF-LIFE DRYING CABINET DRYING CABINET The packaging that protects the drying cabinet The packaging that protects the drying cabinet against damage in transit has been chosen against damage in transit has been chosen When the drying cabinet has reached the When the drying cabinet has reached the with concern for the environment in mind and... -
Page 6: Components
COMPONENTS Connecting lead Air inlet Moist air outlet Heating and fan components are combined in the top of the cabinet in a Fan Unit. Clothes hanger rack (accessory - included in certain models) Door hangers Three extendible hanging sections (The illustration shows extended sections) Glove hangers Door, right or left-hand version... -
Page 7: Control Panel
CONTROL PANEL The drying cabinet is equipped with four automatic and four manual drying programmes suited to different types of clothing. The programmes are set using the buttons on the menu panel. Four languages can be handled. BUTTONS ON / OFF START Starts and STOP... -
Page 8: Language
LANGUAGE The following languages can be handled: English, Swedish, Norwegian, Danish, Finnish, Italian, French, German, Portuguese and Dutch. SETTING Make sure that the ON/OFF switch on the The row for current language now fl ashes. drying cabinet is off. The display is unlit. The languages have a numerical symbol as shown in the list below. -
Page 9: Placement
0°C. The drying cabinet must not be Dimensions in mm placed in an environment in which high-pressure water is used for cleaning. Cabinet desig- A mm nation DC7774V 1700 DC7784V 1840... -
Page 10: Installation
INSTALLATION UNPACKING _______________________________ ______________________________________ After unpacking, check that the product is in- CAUTION tact. Damage, defects and any missing parts The drying cabinet must be handled carefully must be reported to the dealer immediately. ______________________________________ if it is standing unsupported on its pallet. ______________________________________ RISK OF TIPPING OVER Check that all transport securing devices... -
Page 11: Rehanging Of Door
REHANGING OF DOOR The pictures below illustrate rehanging from right-hung door to left-hung. Rehanging kit For rehanging, a rehanging kit must be ordered from the supplier of the cabinet. The kit consists of a new upper hinge, as the left and right hinges are not interchangeable. The kit also includes a control cable for fitting in the door with associated hinge bushing. - Page 12 Unscrew the lower hinge pin (5). Raise the door slightly from the bottom edge and detach it from the upper hinge, to the extent that the hinge pin is visible. The pin has a recess for the control cable. Carefully pull the control cable (6) out of the recess in the hinge pin.
- Page 13 Detach the upper hinge (7) with hinge washer (8). Discard the hinge. Install the new replacement hinge on the opposite side and move the hinge washer across. The hinge forms part of the rehanging kit, which can be ordered from the sup- plier of the drying cabinet.
- Page 14 Re-attachment in the door Lay the door down with the inside facing up on a non-damag- ing surface. 10 Detach the inner plate (9) with magnetic strip, door hangers and glove hangers. Screws are beneath the magnetic strips. Remove the insula- tion (10).
- Page 15 Lay the door in position 14 Introduce the operating ca- ble through the recess in the new upper hinge and slide the door up on the hinge pin. 15 Install the lower hinge pin. Make sure that the hinge pin is tightened fi rmly. 16 Connect the control panel (13) to the connector in the upper part of the drying...
-
Page 16: Placement
PLACEMENT _______________________________________ The drying cabinet is intended only for use in- doors in a dry place. ___________________________________________ ___________________________________________ Do not place the drying cabinet in an area where high-pressure washing is used for cleaning. ___________________________________________ The drying cabinet must be level on a fl at surface, resting on all four feet. -
Page 17: Evacuation / Air Supply
EVACUATION / AIR SUPPLY When the cabinet is on, 45 m moist air per hour is evacuated. It must therefore be ensured that air can enter the room to replace the moist air that is vented out. CONNECTION TO EVACUATION The drying cabinet can be connected to the evacuation duct in two ways, either with a draft stabiliser or permanently fi... - Page 18 WITH DRAFT STABILIZER Fit the supplied hose onto the spigot. Connect the other end of the hose to the draft stabiliser and then secure this on the exhaust vent in the room. ____________________________ Moist air out The drying cabinet must not be connected to a flue.
-
Page 19: Electrical Connection
(can be ordered ___________________________________ from Asko’s spare parts department). For ___________________________________ safety reasons, the replacement may be carried out only by a qualified electrician The socket should be located so that the or by Asko Service. -
Page 20: Before Using The Drying Cabinet
BEFORE USING THE DRYING CABINET ___________________________________ _____________________________ Read this User Manual before CAUTION starting the drying cabinet. Read the safety instructions on page 4 ______________________________________ before using the cabinet. ____________________________________ Make sure that the cabinet is fi rmly at- tached to the wall. -
Page 21: Operation
OPERATION ARRANGING LAUNDRY FOR DRYING CABINET EQUIPPED WITH COAT There are three sections with hangers in the HANGER RACK AND SHOE RACK cabinet. Each section has a number of rails for hanging laundry. For more efficient drying, hang shirts, ... -
Page 22: Drying Programmes
DRYING PROGRAMMES This drying cabinet is equipped with automatic programmes and manual drying programmes for effi cient drying of fabrics of different kinds. The automatic programmes automatically switch off the drying process when the fabrics are dry. During the last 10 minutes, the heat is switched off while the fan cools down the fabrics (cool-down period). -
Page 23: Child Lock
CHILD LOCK To make sure that the drying process is not interrupted or started by mistake, a child lock func- tion can be activated. FUNCTION OF THE CHILD LOCK Activation buttons must be held down for a least 3 seconds (delay time). ACTIVATION / DEACTIVATION OF CHILD LOCK The child lock is activated and deactivated via a setting parameter described on page 28. -
Page 24: Start Automatic Programme
START AUTOMATIC PROGRAMME Start the cabinet by pressing ON/OFF. The display lights up and shows the last programme used. AUT 40° Norma L DRY E.g. The text fl ashes. If this is OK - press OK and the process will then start. - or select another programme with UP / DOWN ARROW + OK and the process will then start. -
Page 25: Tips
TIPS If you have made a mistake or are unsure where you are, you can always press ON/OFF and start selecting drying programme again. If the door is open when a drying programme is started and the OK button is activated, the display will show “close door”. -
Page 26: Setting Drying Programmes
SETTING DRYING PROGRAMMES Setting to optimise the drying cabinet's automatic programme is done using the buttons on the control panel when the drying cabinet is in programming mode. Adjustments must be made if it is found that the laundry does not dry suffi ciently. ... -
Page 27: Parameter List
PARAMETER LIST Para- Name Factory Signifi es meter preset P105 Language Swedish For setting, see page 8 P115 Child lock On/Off 0 Off. Value 1 = Child lock ON P2011 Min drying time 35 (min) Regardless of moisture level, the drying process runs 35 min. -
Page 28: Adjustment
ADJUSTMENT The programme Aut 40° Normal is controlled via temp sensor exhaust air. The programme Aut 40° Extra is controlled via temp sensor exhaust air and a time factor. The programme Aut 60° Normal is controlled via temp sensor exhaust air. The programme Aut 60°... -
Page 29: Procedure
PROCEDURE The setting parameters according to the list on pages 27 are shown on the display as follows: on the top row of the display the relevant parameter is shown, for example P 2014, on the bottom row the set value of the parameter is shown. Go to programming mode. -
Page 30: Care
CARE CLEANING _______________________________ Clean the walls of the cabinet with a mild soap solution on a damp cloth. Do not use high-pressure cleaning. Dust tends to collect around the air intake _______________________________________ on the top of the cabinet. This can cause disruption, in turn leading to breakdowns in operation. -
Page 31: Overheat Cut-Out
OVERHEAT CUT-OUT The cabinet is equipped with an overheat cut-out which is automatically restored when the temperature in the cabinet has fallen to an acceptable level. The time to restore varies from 10 to 15 minutes after the overheat cut-out has been activated. When the overheat cut-out has been tripped, the cabinet cannot be started. -
Page 32: Troubleshooting
TROUBLESHOOTING DEAL WITH MINOR FAULTS YOURSELF Problem What you can do The drying cabinet is 1. Check that the power lead is connected to a socket. not working 2. Check that no fuse has tripped 3. Have you pressed the start button? 4. -
Page 33: Technical Data
Height 1840 mm 1855 mm incl. hinge Width 595 mm Depth 608 mm 635 mm incl. door handle Weight of DC7774V ~60 kg Weight of DC7784V: ~63 kg Sound lavel: max 60 dB(A) ENERGY CONSUMPTION AND DRYING TIMES Drying of spun laundry *) - Page 34 Doc. No: 427001038 Rev 08...
- Page 36 Right to make changes reserved. ASKO DC7774V DC7784V en (02 -19)
