SERVICE MANUAL
DRYING CABINET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC7171 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Asko DC7171

Summary of Contents for Asko DC7171

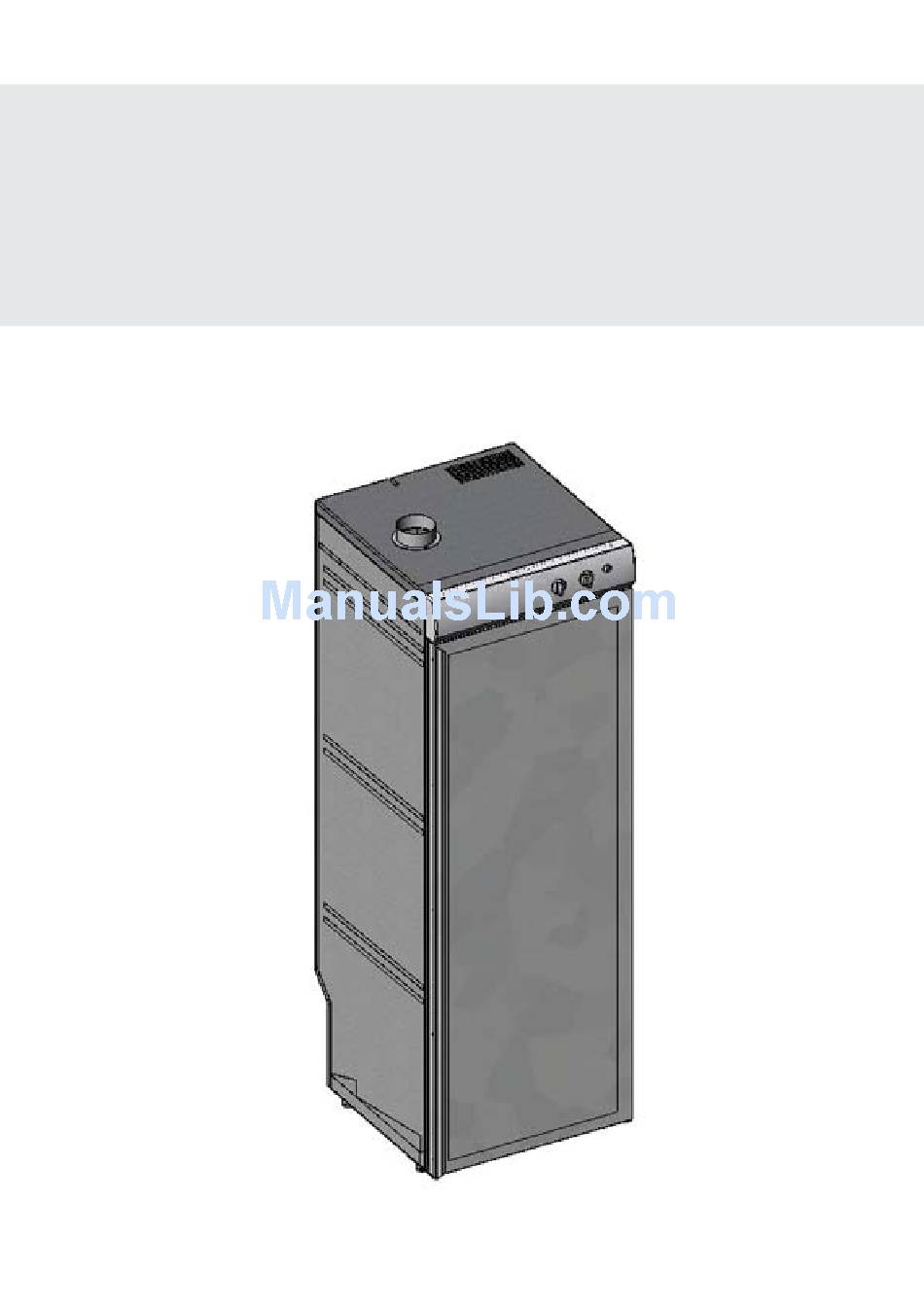

  • Page 1 SERVICE MANUAL DRYING CABINET...

  • Page 2: Table Of Contents

    Changing the timer……………………………………………… 14 Changing the start button (exterior)…………………………….. 15 Changing the start button (interior)…………………………….. Changing the contactor…………………………………………. Changing the door contact breaker……………………………... Changing the hangers…………………………………………… 19 Technical information 120V……………………………………. Circuit diagram DC7171 with start button, 120V………………. 21 Trouble shooting................

  • Page 3: Servicing

    Servicing Before you contact customer service, you should find out the designation of the model, its type and its serial number. The designation of the model is inscribed on the cabinet control panel. The type and the serial number are inscribed on the iden- tification plate which is placed on the inside of the cabinet.

  • Page 4: Presentation Of The Different Models

    Presentation of the different models ASKO DC7171 with start button, with text ASKO DC7171 without start button, with text ASKO DC7171 with start buttons, with symbols ASKO DC7171 without start button, with symbols...

  • Page 5: Setting The Temperature Selector Knob

    Setting the temperature selector knob Do not use heat when drying foam-rubber lined clothing or similar articles The cycle control regulates the temperature on a stepless scale, from no heat to the normal position with full temperature. Setting Articles to be dried Temperature Foam-rubber products, plastics, Fan only...

  • Page 6: Control Panel

    Control panel 1. Temperature setting 2. Timer START-button (only certain markets)

  • Page 7: Placing The Door The Other Way Round

    Placing the door the other way round Reverse door swing Warning! Excessive Weight Hazard You can change your door swing from a right-side opening to a left-side opening, if Use two or more people to handle the desired. drying cabinet. 1.

  • Page 8: Changing The Casing Unit

    Changing the casing unit Disengage the cabinet from the wall and pull it forward! 1- Loosen two screws at the rear edge of the 2- Draw the cover backwards cabinet 3- Lift off the cover 4- Unscrew four screws on the inside of the top cover plate 5- Unscrew two screws on the side of the casing unit, draw it backwards and lift it off.

  • Page 9: Changing The Panel

    Changing the panel Disengage the cabinet from the wall and pull it forward! 1- Loosen two screws at the rear edge 2- Draw the cover backwards of the cabinet 3- Lift off the cover 4- Unscrew three screws behind the panel 5- Stand in front of the cabinet, slanting the upper part of the panel outwards and care- fully draw it upwards (to release the catches) and then outwards.

  • Page 10: Changing The Selector Knob

    Changing the selector knob Disengage the cabinet from the wall and pull it forward! 1- Loosen two screws at the rear edge 2- Draw the cover backwards of the cabinet 3- Lift off the cover 4- Unscrew three screws behind the panel 6.

  • Page 11: Changing The Fan/Motor And The Protection Against Overheating

    Changing the fan/motor and the protection against overheating Disengage the cabinet from the wall and pull it forward! 1- Loosen two screws at the rear edge 2- Draw the cover backwards of the cabinet 4- It is firmly fixed with 4 screws 3- Lift off the cover Changing the protection against overheating Fixed on the element, screwed firmly into place with 2 screws...

  • Page 12: Changing The Element

    Changing the element Disengage the cabinet from the wall and pull it forward! 1- Loosen two screws at the rear edge 2-Draw the cover backwards of the cabinet 3- Lift off the cover 4- Unscrew four screws on the inside of the top cover plate 5- Unscrew two screws on the side of the casing unit, draw the casing unit back- wards and lift it off.

  • Page 13: Changing The Thermostat

    Changing the thermostat Disengage the cabinet from the wall and pull it forward! 1- Loosen two screws at the rear edge 2- Draw the cover backwards of the cabinet 3- Lift off the cover 4- Unscrew four screws on the inside of the top cover plate 5- Unscrew two screws on the side of the casing unit, draw the casing unit backwards...

  • Page 14: Changing The Timer

    Changing the timer Disengage the cabinet from the wall and pull it forward! 1- Loosen two screws at the rear of 2- Draw the cover backwards the cabinet 3- Lift off the cover 4- Unscrew four screws on the inside of the top cover plate 5- Unscrew two screws on the side of the casing unit, draw the casing unit backwards...

  • Page 15: Changing The Start Button (Exterior)

    Changing the start button (exterior) Disengage the cabinet from the wall and pull it forward! 1- Loosen two screws at the rear edge 2- Draw the cover backwards of the cabinet 4- Unscrew three screws behind the panel 3- Lift off the cover 5- Stand in front of the cabinet, slanting the upper 6.

  • Page 16: Changing The Start Button (Interior)

    Changing the start button (interior) Disengage the cabinet from the wall and pull it forward! 1- Loosen two screws at the rear edge 2- Draw the cover backwards of the cabinet 3- Lift off the cover 4- Unscrew four screws on the inside of the top cover plate 5- Unscrew two screws on the side of the casing unit, draw the casing unit back- wards and lift it off.

  • Page 17: Changing The Contactor

    Changing the contactor Disengage the cabinet from the wall and pull it forward! 1-Loosen two screws at the rear edge 2- Draw the cover backwards of the cabinet 4- Change the contactor by pressing it 3- Lift off the cover downwards and backwards at the same time that you lift off the back part of the contactor.
  • Page 18 Changing the doorswitch Disengage the cabinet from the wall and pull it forward! 1- Loosen two screws at the rear edge 2- - Draw the cover backwards of the cabinet 4- Unscrew three screws behind the panel 3- Lift off the cover 5- Stand in front of the cabinet, slanting the upper 6.

  • Page 19: Changing The Hangers

    Changing the hangers Detach the hanger stop on both sides and pull out the hangers. HANGER STOP Changing the door edging strip Turn up the edging strip, unscrew the screws from the metal panel and change the edging strip.

  • Page 20: Technical Data

    Technical data Technical characteristics Capacity: About 7 1/2 lbs (3.5 kg) of laundry (cotton) Dewatering capacity: 0.56 ounce/min (16 gram/min) Electrical connection: Single-phase, 120 V, 60 Hz Motor: 43 W Heating element output: 1200 W Overheating protection: Time switch: Adjustable up to 4 hours Hanging length: 630 in.

  • Page 21: Circuit Diagram Dc7171 With Start Button, 120V

    Circuit diagram, DC7171, with start button, 120V 120V Ground / Terre Timer / Minuterie Timer Motor Minuterie Moteur Push-To-Start Switch Interrupteur Door Switch Appuyer pour démarrer Interrupteru de porte Relay Relay Coil Relais Relais bobine High Limit Thermostat Thermostate limite haute...

  • Page 22: Troubleshooting

    Troubleshooting Before calling for help, first try to correct the problem using the following guide: Problem Cause Corrective action Garments The house breaker for drying Check.   are not being cabinet has tripped. dried as Cycle control and/or time expected.
  • Page 23 Article nr. 101863-1 Rev. 1 We reserve the right to make alterations. Printed on environment friendly paper, complying with the requirements of Miljöförbundet (Swedish Environmental Organization) and Naturskyddsföreningens (Swedish Association for nature conservancy).
