PASCO ME-6841 Instruction Sheet

PASCO ME-6841 Instruction Sheet

Curved pastrack

Advertisement

Quick Links

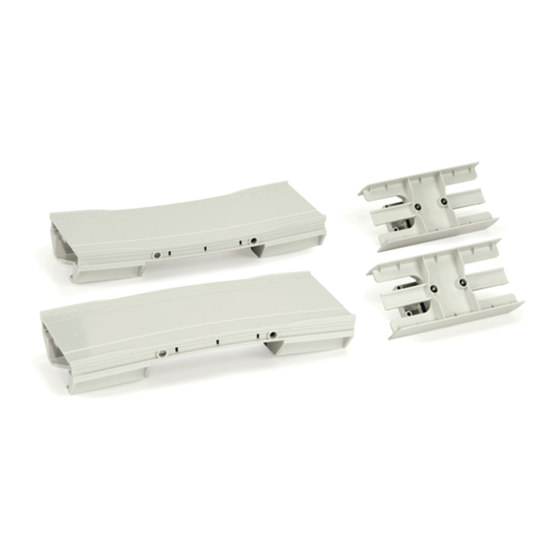

Included Equipment
1. Concave-down section
2. Concave-up section
3. Connectors (2 pieces)
Other Equipment Required
Straight PAStrack (PASCO part ME-6960, which
consists of two straight sections)
Rods, stands, and clamps for supporting elevated track
sections (see options on page 2)
PASCO Dynamics Cart (ME-6950, ME-6951, ME-9430,
or ME-9454)
Quick Start
1.
Use connector pieces to join the curved sections (part of
ME-6841) and straight sections (part of ME-6960) in any
order (see examples in figures 6 through 9).
Ensure that the wide and narrow grooves match from one
section to the next (see Figure 2).
2.
Tighten the screws on the connectors.
3.
Use rods, stands, and clamps to support the elevated straight
sections (see figures 3 through 5).
800-772-8700
®
Curved PAStrack
1
3
ME-6841
Introduction
PASCO model ME-6841 consists of two curved sections that can
be joined with straight PAStrack sections to form a single track
with different levels. The combined track can be used to study
how a change in height affects the motion of a cart. The track is
compatible with all PASCO dynamics carts (including plastic
PAScars and classic aluminum carts) and other dynamics system
accessories.
Parts of the Curved PAStrack
a
b
a.
Narrow groove
b. Wide groove
c.
Connector screws
d. Release tab
I n s tr u c t i o n S he e t
012 -105 15A
2
c
d
Figure 1
www.pasco.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ME-6841 and is the answer not in the manual?

Questions and answers

Summary of Contents for PASCO ME-6841

  • Page 1 Introduction Included Equipment 1. Concave-down section PASCO model ME-6841 consists of two curved sections that can be joined with straight PAStrack sections to form a single track 2. Concave-up section with different levels. The combined track can be used to study 3.
  • Page 2 C u r v e d P A S tr a c k ME- 6 8 41 Assembly Slide a connector piece into a track section. Push it hard until you hear it snap. Slide the next track section onto the connector piece. Push it until it snaps.
  • Page 3 PASCO scientific, is prohibited. Trademarks PASCO and PASCO scientific are trade- level section. marks or registered trademarks of PASCO scientific, in the United States and/or in other countries. All other brands, products, or service names are Oscillator or may be trademarks or service marks of, and are used to identify, prod- ucts or services of, their respective owners.
