PASCO ME-8971 Instruction Manual

Introduction

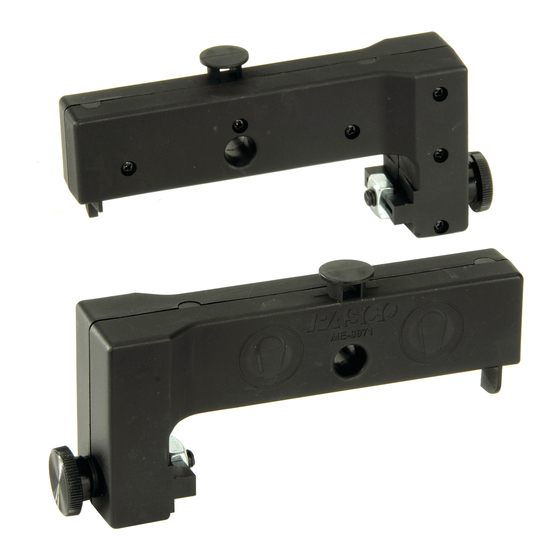

PASCO model ME-8971 is a set of two end stops for use
with PASCO tracks and carts. It is compatible with any alu-
minum or plastic PASCO track and with any PASCO cart
such as the Plunger Cart or Smart Cart. See the PASCO
catalog or the PASCO web site at
www.pasco.com
for information about other accessories such as springs,
bumpers, pulleys, masses, and special attachments that
are designed to be used with PASCO tracks and carts.

Installation

Attach each end stop to the T-slot on the side of the tracks
as illustrated. Slide the end stop to any position along the
track and secure it by tightening the thumbscrew.
One side of the end stop contains magnets to repel the
magnetic bumper of a cart. The stud on top of the end stop
800-772-8700
Adjustable End Stop
ME-8971
can be used for attaching a spring or string. The Hole is
designed to be used with a Spring Cart Launcher (PASCO
model ME-6843).
1.
2.
1: Slide tab into T-slot on side of track. 2: Tighten thumbscrew
to secure end stop. 3: Magnets repel cart's magnetic bumper.
4: Spring attachment stud
Instruction Manual
012-09992B
4.
3.
www.pasco.com
