PASCO ME-8594 Quick Start Manual

Water reservoir

Model No. ME-8594

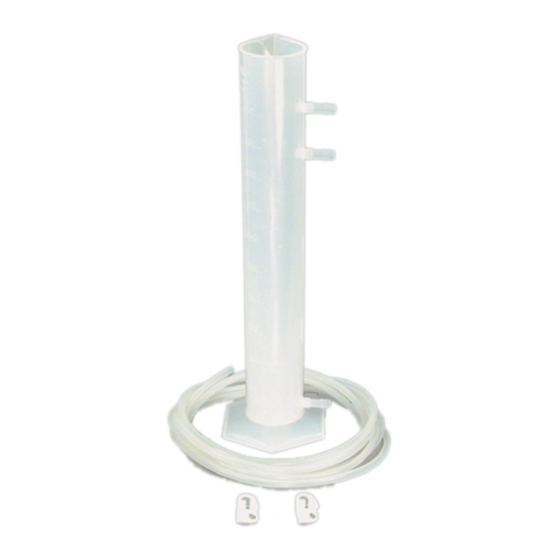

Equipment List

Included Equipment

1. Graduated Cylinder (Water Reservoir), 1 liter (1)

2. Plastic Tubing, 19.7 feet (6 meters), 1/4" ID x 3/8" OD (1)

3. Plastic Hose Clamps (2)

*Use Replacement Model Numbers to expedite replacement orders.

Additional Equipment Suggested

Clamps, three-fingered

Energy Transfer - Hydro Accessory

Energy Transfer - Generator

Large Rod Base

Steel Rod, 90 cm

Beaker, 1000 ml

Water Reservoir

Model No. ME-8594

Replacement

Model Number

648-08457

640-012

640-075

Model Number

SE-9445

ET-8772

ET-8771

ME-8735

ME-8738

SE-7288

012-08438A

Table of Contents

Do you have a question about the ME-8594 and is the answer not in the manual?

Page 1 Model No. ME-8594 012-08438A Water Reservoir Model No. ME-8594 Equipment List Included Equipment Replacement Model Number 1. Graduated Cylinder (Water Reservoir), 1 liter (1) 648-08457 2. Plastic Tubing, 19.7 feet (6 meters), 1/4” ID x 3/8” OD (1) 640-012 3. Plastic Hose Clamps (2) 640-075 *Use Replacement Model Numbers to expedite replacement orders.
Page 2 Water Reservoir Model No. ME-8594 Introduction The Water Reservoir is a plastic, graduated cylinder used as a water source for equipment such as the ET- side port Hydro Accessory (ET-8772) and the ET-Generator (ET- top hose fitting 8771). The Water Reservoir holds up to 1 liter of water and is...
Page 3 Model No. ME-8594 012-08438A 4. Use three-fingered clamps to attach the reservoir to a rod stand (Figure 2). 5. Connect the top hose to a water faucet. (Note: Keep the rod stand below the height of the water faucet to allow water flow to travel downward.) Turn on the tap water and allow water to flow in through the top port.
Page 4 PASCO scientific warrants the product to be free from defects in materials and workmanship for a period of one year from the date of shipment to the customer. PASCO will repair or replace, at its option, any part of the product which is deemed to be defective in material or workmanship.
