- Page 1 User Manual for Indoor LoRa Gateway WisDevice Series RAK7258 Version 1.3 | March, 2019 www.RAKwireless.com Visit our website for the latest copy of this manual. 12 PAGES...
-
Page 2: Table Of Contents
LoRa ........................... 6 2.2.4 Network ........................7 2.2.5 Management ......................7 Main Electronic Circuit Board ....................7 Hardware Interfaces ......................8 Declaration of Conformity ......................10 Contact Information ........................11 Revision History ........................12 Document Summary ......................... 12 RAK7258 User Manual V1.3... - Page 3 Table 3 | LoRa Radio Specifications ....................6 Table 4 | LEDs Status Description ....................9 List of Figures Figure 1 | Network Architechture ....................4 Figure 3 | Circuit Board ........................7 Figure 4 | Hardware Interfaces ....................... 8 RAK7258 User Manual V1.3...
-
Page 4: General Description
RAK7258 is built-in heat sink to dissipate the heat from the LoRa concentrator which can withstand hot and cold environments. It can be installed on a wall and has a Power- over-Ethernet (POE) supply mode, making it convenient for site construction and installation. -
Page 5: Product Specifications
Weight • 0.3kg Dimension • 180mm x 120mm x 43mm Operating Temp. • -10 to 40 ˚C Installation method • Wall mounting • Hardware Version: VA Version • Firmware Version: 1.1.0037_Release Table 1 | Main Specifications RAK7258 User Manual V1.3... -
Page 6: Rf Specifications
Table 3 | LoRa Radio Specifications Software Specifications LoRa 2.2.3 • Supports class A, C • Supports LoRa package forward • Supports country code setup • Supports TX power setup • Supports data logger • Supports statistic • Supports location setup RAK7258 User Manual V1.3... -
Page 7: Network
Supports DHCP Server/Client • Supports router module NAT • Supports firewall Management 2.2.5 • Supports WEB management • Supports SSH2 • Supports firmware update • Supports NTP Main Electronic Circuit Board Figure 2 | Circuit Board RAK7258 User Manual V1.3... -
Page 8: Hardware Interfaces

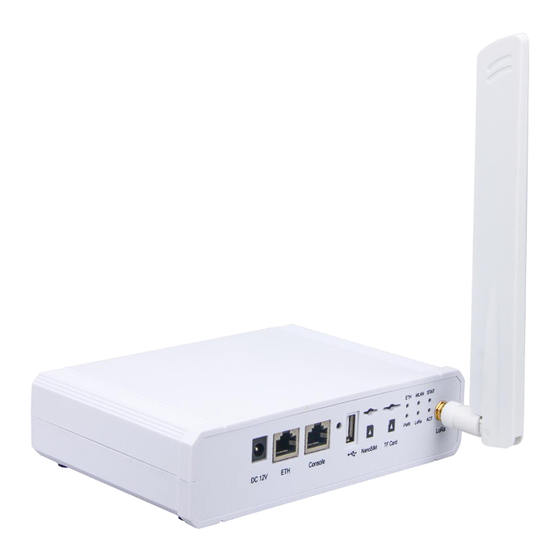

7258 Hardware Interfaces The hardware interfaces of RAK7258 gateway include DC 12V, ETH interface, Console interface, Reset key, USB port, Nano SIM slot, TF Card slot, Status indicator LEDs(6), LoRa Antenna connector etc. As shown in the following figure. Figure 3 | Hardware Interfaces The function of the Reset key is as follows: Short press: Restart the Gateway;... -
Page 9: Table 4 | Leds Status Description
ON - WLAN is working; Flash - Data Transmitting and Receiving WLAN • STA Mode : Slow Flash(1Hz) - Connection Disconnected; ON - Connection Successful; • Flash - Data Receiving and Sending; Table 4 | LEDs Status Description RAK7258 User Manual V1.3... -
Page 10: Declaration Of Conformity
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: RAK7258 User Manual V1.3... -
Page 11: Contact Information
Shenzhen Business ken.yu@rakwireless.com Room 506, Bldg B, New Compark, Pingshan First Road, Taoyuan Street, Nanshan District, Shenzhen, China Shenzhen Technical steven.tang@rakwireless.com 0755-86108311 Room 506, Bldg B, New Compark, Pingshan First Road, Taoyuan Street, Nanshan District, Shenzhen, China RAK7258 User Manual V1.3... -
Page 12: Revision History
Terry About RAKwireless: RAKwireless is the pioneer in providing innovative and diverse cellular and LoRa connectivity solutions for IoT edge devices. It's easy and modular design can be used in different IoT applications and accelerate time-to-market turnover. For more information, please visit RAKwireless website at www.rakwireless.com.
