- Page 1 User Manual for Indoor LoRa Gateway WisDevice Series RAK7258 Version 1.3 | March, 2019 www.RAKwireless.com Visit our website for the latest copy of this manual. 12 PAGES...
-
Page 2: Table Of Contents
2.2.2 LoRa Radio Specifications....................6 Software Specifications........................7 2.2.3 LoRa............................7 2.2.4 Network........................... 7 2.2.5 Management.......................... 7 Block Diagram............................ 8 Main Electronic Circuit Board......................8 Hardware Interfaces.......................... 9 User instructions............................11 Contact Information..........................11 Revision History............................. 12 Document Summary..........................12 RAK7258 User Manual V1.3... - Page 3 Table 3 | LoRa Radio Specifications......................6 Table 4 | LEDs Status Description......................10 List of Figures Figure 1 | Network Architechture........................4 Figure 2 | Block Diagram..........................8 Figure 3 | Circuit Board..........................8 Figure 4 | Hardware Interfaces........................9 RAK7258 User Manual V1.3...
-
Page 4: General Description
RAK7258 can connect the standard NS (network server) and the local NS. At the same time, RAK7258 also supports the built-in NS. It does not need users to deploy NS in the cloud and locally. It is especially suitable for small and medium-sized scenarios in industry applications, saves the cost for server and R&D investment, and has the... -
Page 5: Product Specifications
WiFi LED(1) Ingress Protection IP30 Enclosure Material Plastics Weight 0.3kg Dimension 180mm x 120mm x 43mm Operating Temp. -10 to 55 ˚C Installation method Wall mounting Table 1 | Main Specifications RAK7258 User Manual V1.3... -
Page 6: Rf Specifications
• EU433 / CN470 / EU868 / US915 / AS923 Operating Frequency / AU915 / IN865 / KR920 Transmit Power • 27 dBm (Max) Receiver Sensitivity • -142 dBm (Min) Table 3 | LoRa Radio Specifications RAK7258 User Manual V1.3... -
Page 7: Software Specifications
Supports LTE APN setup Supports uplink backup Supports 802.1q Supports DHCP Server/Client Supports router module NAT Supports firewall Management 2.2.5 Supports WEB management Supports SSH2 Supports firmware update Supports NTP RAK7258 User Manual V1.3... -
Page 8: Block Diagram
7258 Block Diagram Figure 2 | Block Diagram Main Electronic Circuit Board Figure 3 | Circuit Board RAK7258 User Manual V1.3... -
Page 9: Hardware Interfaces

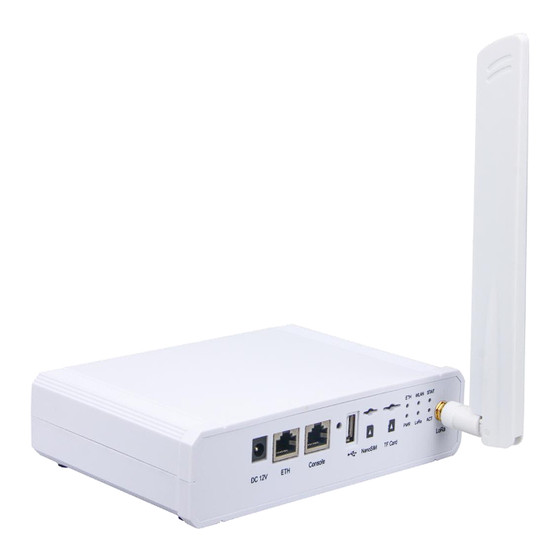

7258 Hardware Interfaces The hardware interfaces of RAK7258 gateway include DC 12V, ETH interface, Console interface, Reset key, USB port, Nano SIM slot, TF Card slot, Status indicator LEDs(6), LoRa Antenna connector etc. As shown in the following figure. Figure 4 | Hardware Interfaces The function of the Reset key is as follows: Short press: Restart the Gateway;... -
Page 10: Table 4 | Leds Status Description
ON - WLAN is working; Flash - Data Transmitting and Receiving WLAN STA Mode : Slow Flash(1Hz) - Connection Disconnected; ON - Connection Successful; Flash - Data Receiving and Sending; Table 4 | LEDs Status Description RAK7258 User Manual V1.3... -
Page 11: User Instructions
For more information about the WEB Management platform and the configuration guide of the gateway, please refer to this document: RAK_LoRaWAN_Commercial_Gateway_Configuration_Guide Contact Information Please contact us if you need technical support or want to know more information. Support center: https://forum.rakwireless.com/ Email us: info@rakwireless.com RAK7258 User Manual V1.3... -
