PAC RP5-GM11 Manual

RP5-GM11

Introduction and Features

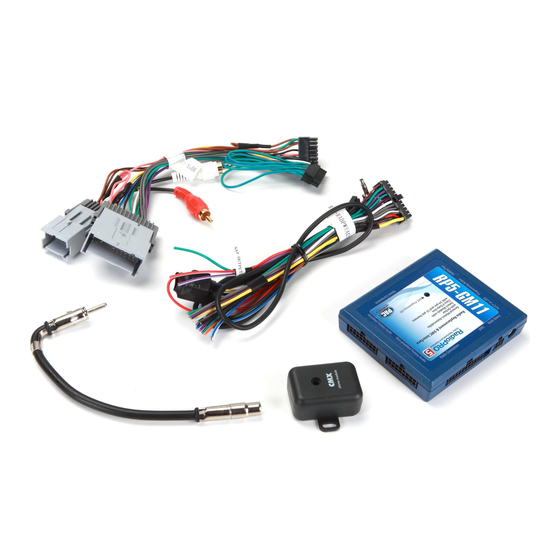

The RP5-GM11 interface allows the replacement of a factory radio in select General Motors vehicles with Class II radios.
Using this interface will retain factory features such as OnStar, steering wheel controls (SWC), warning chimes, Rear
RP5-GM11 also provides data bus driven outputs such as retained accessory power (RAP), vehicle speed signal (VSS),
illumination, reverse trigger and parking brake.

Important Notes

1. These instructions only apply to R.2.2.6.13 or later revisions. The revision info can be found on a small white sticker on the
interface and packaging.
2. The radio select rotary switch on the side of the interface must be adjusted to the proper radio setting before plugging the
interface into the vehicle (see next page for setting chart).
3. The interface comes pre-programmed for all of the vehicles factory SWC functions and does not require programming unless
you wish to re-assign the SWC functions to different buttons. The SWC can always be restored to default settings by pressing
for the SWC assignments to make sense. Whatever you assign as aftermarket volume commands will also be the
OnStar volume commands.
4. The aftermarket radio must have an auxiliary input in order for the factory RSE audio to be retained through the cabin speakers.
5. RSC buttons that are identical to the SWC will mimic the SWC one for one.
6.

Wiring Connection Chart

Aftermarket Radio Connections

Yellow * +12v from RP5
Yellow * +12v from vehicle
Black ** Ground from RP5
Black ** Ground from vehicle
Red Acc. Output
White Front Left + input
White / Black Front Left - input
Grey Front Right + input
Grey / Black Front Right - input
Green Rear Left + input
Green / Black Rear Left - input
Purple Rear Right + input
Purple / Black Rear Right - input

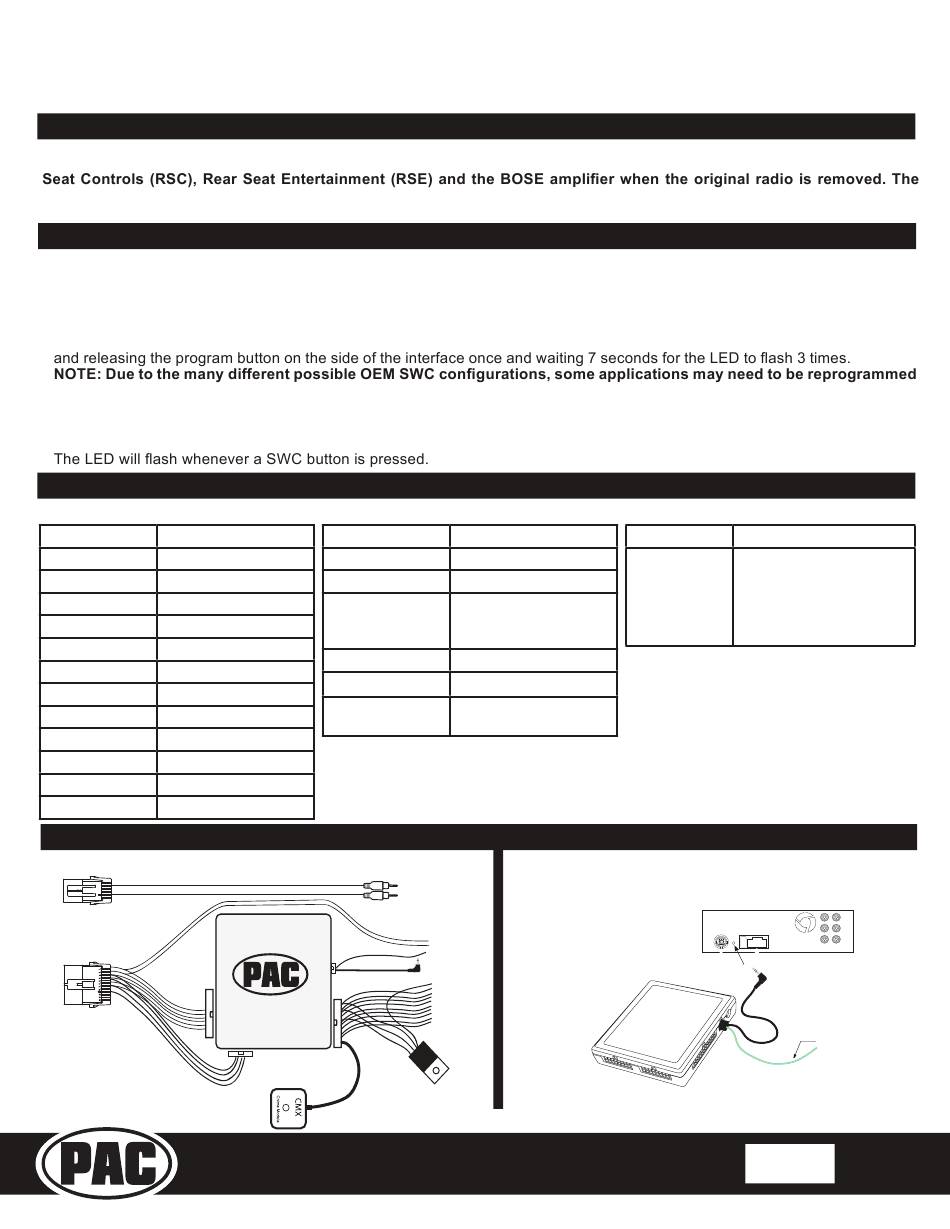

Illustration / Schematic

Rear Seat Entertainment
Audio Retention Harness
Vehicle
Connections
Power and Speaker
Connections
P ifi A C ti
Light Green
Pink
Blue
Blue / White
Orange / White
Purple / White
Brown Loop
IMPORTANT NOTES REGARDING YELLOW AND BLACK WIRE CONNECTIONS
* Connect both Yellow wires from the
RP5 harnesses to the radio's 12v
constant input.
Wiring
© 2018 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
Radio Replacement & Steering Wheel Control Interface
with OnStar Retention for General Motors Vehicles
Parking Brake Output (-)
Vehicle Speed Output
Not Used
Factory Amp Turn On
Input (required for Bose
systems)
Illumination Output (+)
Reverse Output (+)
Mute Loop - See
installation note 6.
Aftermarket
Radio
Connections
PAC-audio.com
SWC Connector
Blue / Yellow Kenwood, Newer JVC
Alpine, JVC, Clarion,
Fusion, Pioneer, Sony,
3.5mm Jack Dual, Axxera, Lightning
Audio, Jensen, Rockford
Fosgate
** Connect both Black wires from the
RP5 harnesses to the radio's ground
input.

SWC Connection

SWC Connection
Rev: 5
Date: 050918
PLEASE
See above chart for
different radio type
connections
Page 1
