48"
Max 72"
© PAC International, LLC. All Rights Reserved. • (866) 774-2100 • Fax (866) 649-2710
RSIC® is a registered Trade Mark of PAC International, LLC.
RSIC-SI-CRC2 LP

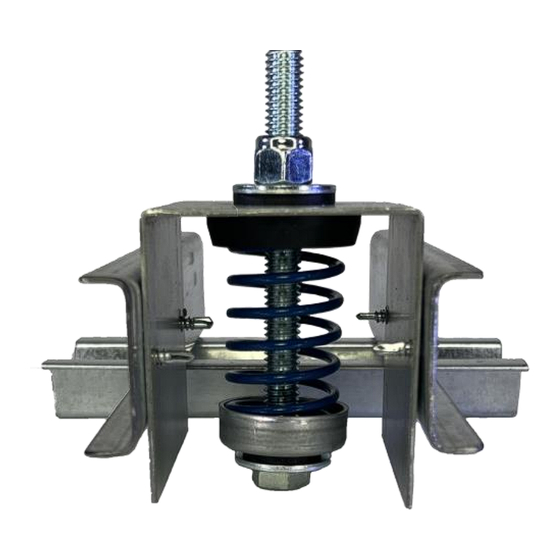

The RSIC-SI-CRC2 LP is designed to isolate
the ceiling at greater spans with two 1.5" x 16 Ga
cold-rolled channel and furring channel (25 or 20
Ga). The RSIC-SI-CRC2 LP clip is available in 10 lb,
20 lb, 30 lb, 40 lb, 60 lb, 80 lb, 100 lb, 120 lb
versions. Maximum spacing for the RSIC-SI-CRC2
LP is 48" x 72" oc.
Concrete
Apartment
Retail
Conference Rooms
RSIC-SI-CRC2 LP specifications:
Acoustical design load:
Total deflection
Pre-Calibrated
Pre-Assembled
Adjustable
Cavity min
Cavity Max
Use on Ceilings
Use on walls
New Construction
Tested, Engineered, Designed, and Calibrated In USA
Condo
Commercial
Recording Studio
Home Theater
Commercial theater
10 lbs to 120 lbs
7/8 inch
YES
YES
YES
3-7/8"
Bolt Length
YES
NO
YES
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PAC RSIC-SI-CRC2 LP
Summary of Contents for PAC RSIC-SI-CRC2 LP
- Page 1 Use on Ceilings Use on walls New Construction Tested, Engineered, Designed, and Calibrated In USA Max 72" © PAC International, LLC. All Rights Reserved. • (866) 774-2100 • Fax (866) 649-2710 RSIC® is a registered Trade Mark of PAC International, LLC.
- Page 2 RSIC-SI-CRC2 LP Fully-Loaded "As Installed" 3-5/16" 3-5/16" RSIC-SI-CRC2 12/1/2023 SCALE...
- Page 3 RSIC-SI-CRC2 LP Height Variance 3-5/16 4-5/16 RSIC-SI-CRC2 12/1/2023 SCALE...
- Page 4 RSIC-SI-CRC2 LP SOUND ISOLATION CLIP RSIC-SI-CRC2 LP INSTALLATION GUIDE RSIC-SI-CRC2 LP PAC International, LLC. All Rights Reserved. • (866) 774-2100 • Fax (866) 649-2710 RSIC® is a registered Trade Mark...
- Page 5 Maximum Spacing: 60” x 48" oc. with Two Cold Rolled Channels • Finish elevation is 1/2” below preset height with 2 layers of 5/8” gypsum board. PAC International, LLC. All Rights Reserved. • (866) 774-2100 • Fax (866) 649-2710 RSIC® is a registered Trade Mark...
- Page 6 • Carefully remove RSIC-SI-CRC2 LP pre-assembled, and pre-calibrated clips from packaging. • Be cautious to not rotate the RSIC-SI-CRC2 LP clips separate from the 10 Lb White Upper bracket. This may change the factory calibration of RSIC-SI-CRC2 • Verify the correct quantity of each RSIC-SI-CRC2 LP isolator (weight / 20 Lb Blue color) is included in the shipment.
- Page 7 Caulk around the entire perimeter of the ceiling wall intersection. • Use fire and smoke rated acoustical sealant where required. The RSIC-SI-CRC2 LP is recommended with a minimum of 2 layers of 5/8” gypsum board or equal mass • General Information: •...
- Page 8 RSIC-SI-CRC2 LP SOUND ISOLATION CLIP RSIC-SI-CRC2 LP Sample Layout 25 Ga. Drywall Furring Channel Cold Rolled Channel PAC International, LLC. All Rights Reserved. • (866) 774-2100 • Fax (866) 649-2710 RSIC® is a registered Trade Mark...
- Page 9 Assume they are outside the 500 mile radius. Ave Canby, OR 97013 • (866) 774-2100 • Fax (866) 649-2710 PAC International, LLC., 2000 4 © PAC International, LLC. All Rights Reserved. RSIC® is a registered Trade Mark of PAC International, LLC.
- Page 10 Ave Canby, OR 97013 • (866) 774-2100 • Fax (866) 649-2710 PAC International, LLC., 2000 4 © PAC International, LLC. All Rights Reserved. RSIC®, RSIC-1®, RC-1 Boost® is a registered Trade Mark of PAC International, LLC.
- Page 11 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state Ave Canby, OR 97013 • (866) 774-2100 • Fax (866) 649-2710 PAC International, LLC., 2000 4 © PAC International, LLC. All Rights Reserved. RSIC® is a registered Trade Mark of PAC International, LLC.
