PAC RP4-HD11 Introduction And Features

RP4-HD11
Introduction and Features

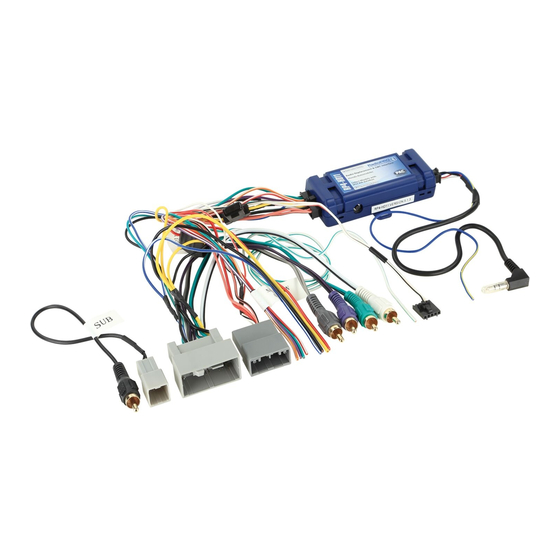

The RP4-HD11 interface allows the replacement of a factory radio in select Honda vehicles with MSCAN databus radios. Using this
interface will retain factory features, such as steering wheel controls (SWC), the factory amplifier, and the ability to set the factory
clock when the original radio is removed. Use of this interface also allows you to program two radio functions to each SWC button by
using short press long, press dual command functionality. The RP4-HD11 also provides data bus driven outputs, such as accessory
power, vehicle speed sensor (VSS), illumination, reverse trigger, and parking brake.
Important Notes
1. These instructions apply to R.1.5.1.4 or later revisions. The revision info can be found on a small white sticker on the interface and
packaging.
2. The radio select rotary switch, on the side of the interface, must be adjusted to the proper radio setting before plugging the interface into the
vehicle (see next page for setting chart).
3. The interface comes pre-programmed for all of the vehicles factory SWC functions and does not require programming, unless you wish
to re-assign the SWC functions, or utilize short press long press dual command functionality. The SWC can always be restored to default
settings by pressing and releasing the program button on the side of the interface once, and waiting 7 seconds for the LED to flash 4 times.
4. Vehicles equipped with factory navigation must follow the installation tech brief listed at
page.
5. Vehicles equipped with a 7" touchscreen: Once the factory head unit has been removed, you will no longer be able to set the clock
or date on the factory display, as this is derived from the factory head unit. The date on the screen can be permanently removed by
disconnecting the batttery to clear the screen's memory. In order to set the clock you will need to disconnect the vehicles battery at 1:00, as
this is the time the screen defaults to once it has been reset.
6. The LED will flash whenever a SWC button is pressed.

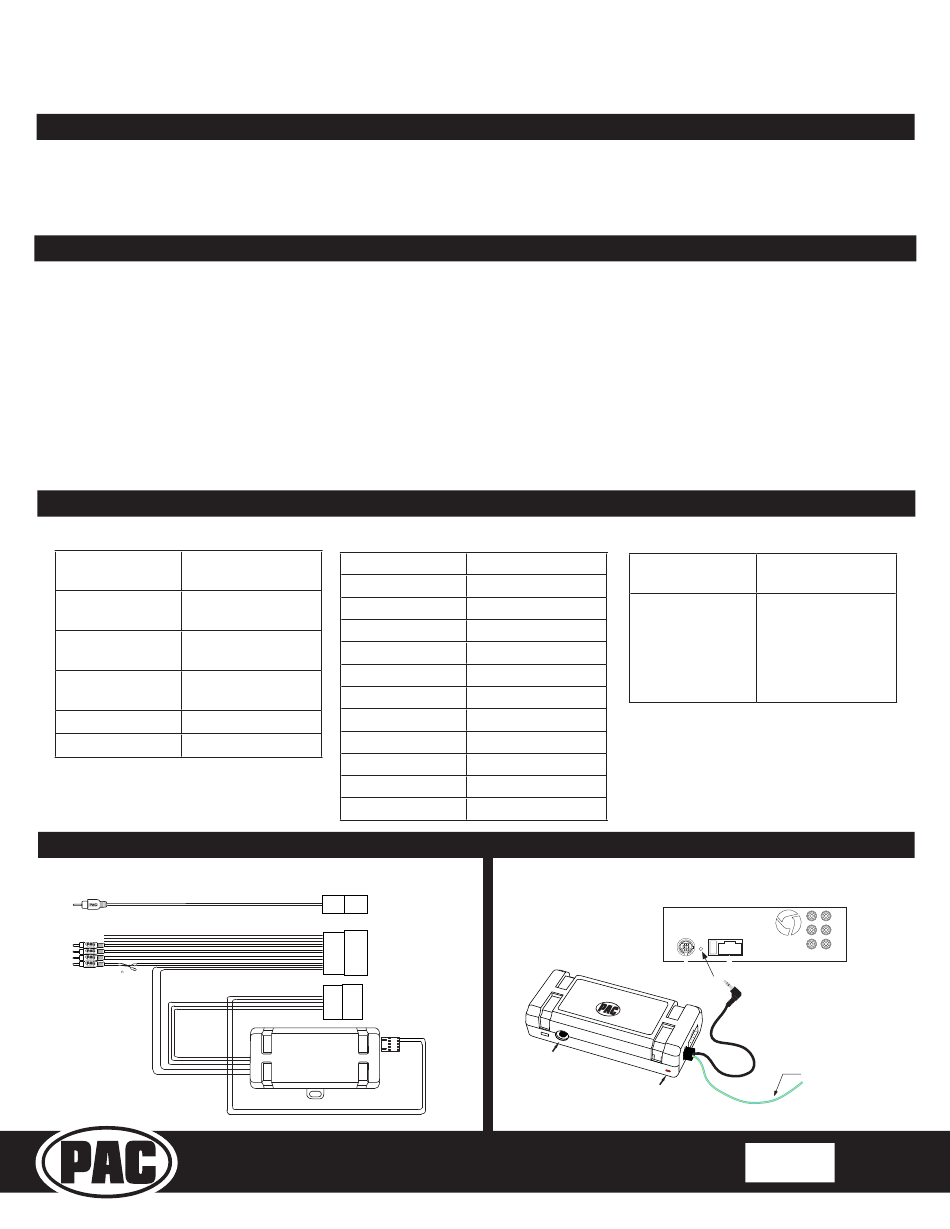

Wiring Connection Chart
Interface Connector
Red / White Parking Brake
Purple / White Vehicle Speed
Red Accessory Output
Orange / White Illumination Output
Green Reverse Output (+)
White/Green SWC Analog Input
Illustration / Schematic
Cut for Non-Ampli ed systems
Aftermarket Radio Connections
See above chart for wire color
description.
Pacific Accessory Corporation
Vehicle Connector
Yellow
Output (-)
Black
Orange
Output
Orange/White
White
(10 amp)
White / Black
(+)
Gray / Black
Green
Green / Black
Purple
Purple / Black
Wiring
Vehicle Connections
