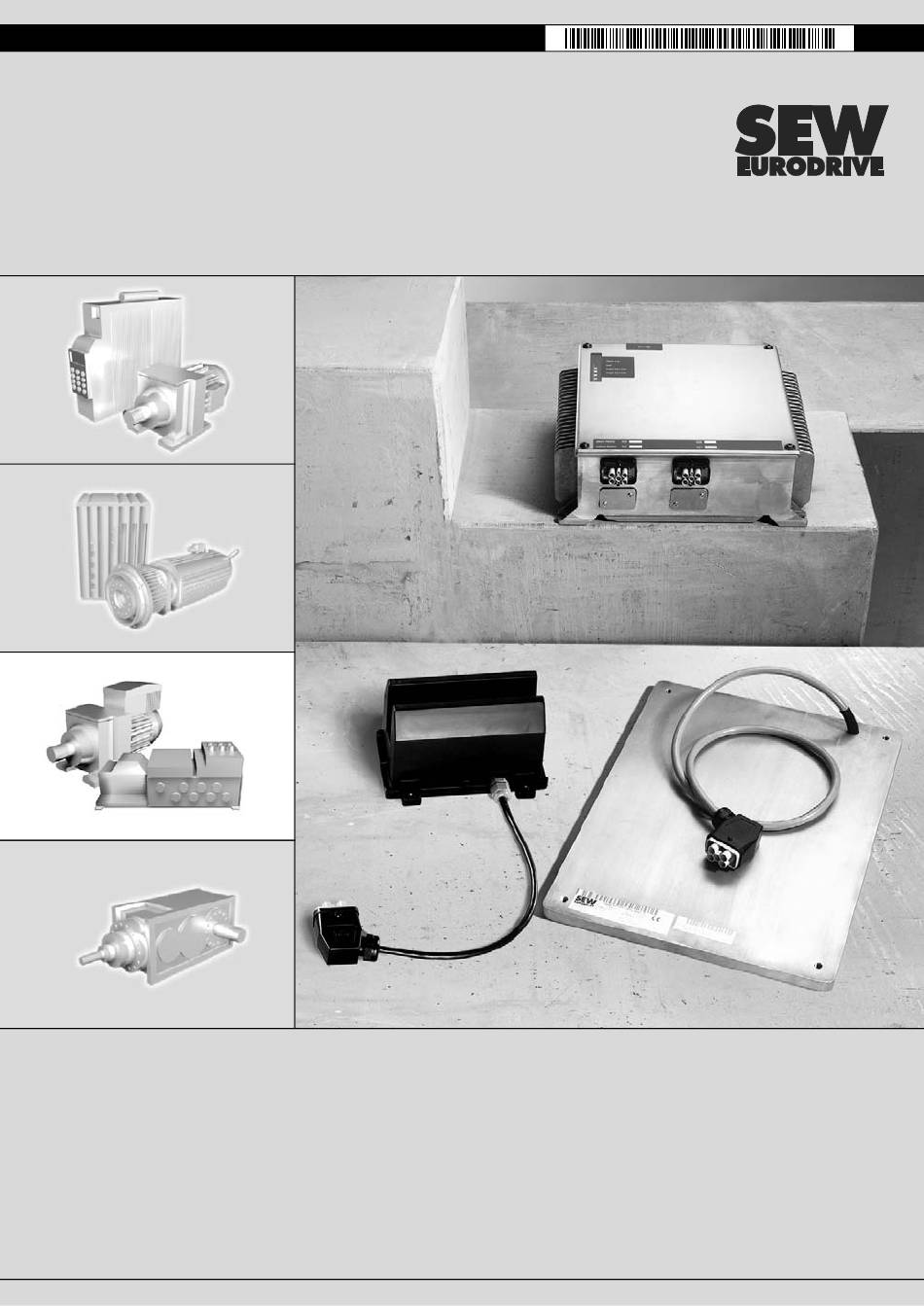

- Page 1 Gearmotors \ Industrial Gear Units \ Drive Electronics \ Drive Automation \ Services GC430000 Mobile Energy Supply ® MOVITRANS THM10C / THM10E Pick-Ups Edition 07/2006 perating nstructions 11445017 / EN...
- Page 2 SEW-EURODRIVE – Driving the world...
-
Page 3: Table Of Contents
Contents 1 Important Notes....................4 2 Safety Notes ...................... 6 3 Installation ......................7 Unit designation, nameplates and scope of delivery......... 7 ® MOVITRANS THM10C unit design............9 ® MOVITRANS THM10E unit design ............10 ® Assembly and installation notes MOVITRANS THM10C...... -
Page 4: Important Notes
Important Notes Important Notes Betriebsanleitung Explanation of Always follow the safety and warning instructions in this documentation. symbols of safety and warning instructions Hazard Possible consequences: Severe or fatal injuries. Hazardous situation Possible consequences: Slight or minor injuries. Harmful situation Possible consequences: Damage to the drive and the environment. - Page 5 Important Notes Application The following uses are prohibited, unless measures are expressly taken to make environment them possible: • In explosion-proof areas • In areas exposed to harmful oils, acids, gases, vapors, dust, radiation, etc. Disposal Please follow the current regulations: Dispose of the following materials in accordance with the regulations in force: •...
-
Page 6: Safety Notes
Safety Notes Safety Notes Installation and • Never install damaged products or take them into operation. Submit a complaint startup to the shipping company immediately in the event of damage. • Installation, startup and service work is to be performed by trained personnel only. -
Page 7: Installation
Installation Unit designation, nameplates and scope of delivery Installation Unit designation, nameplates and scope of delivery ® Example of a unit designation for MOVITRANS THM10C T H M 10 C 008 - 022 - 076 - 1 Version: 1 = customized Compensation capacity: 076 = 76 nF Inductance: 022 = 220 µH Rated power: 008 = 0.8 kW... - Page 8 Installation Unit designation, nameplates and scope of delivery Sample The nameplate is attached to the side of the unit. nameplate 58736AXX ® Figure 1: MOVITRANS THM10C nameplate (example) 13000470 LISTED IND. CONT. EQ: 2D06 55164AXX ® Figure 2: MOVITRANS THM10E nameplate (example) ®...
-
Page 9: Movitrans® Thm10C Unit Design
Installation MOVITRANS® THM10C unit design ® MOVITRANS THM10C unit design 55931AXX U-shaped pick-up Permanently installed connection cable (max. length 6 m) with HANQ4/2M plug connector with angled cable outlet Four threaded holes M6 for fastening of pick-up. Operating Instructions – MOVITRANS® THM10C / THM10E Pick-Ups... -
Page 10: Movitrans® Thm10E Unit Design
Installation MOVITRANS® THM10E unit design ® MOVITRANS THM10E unit design 53901AXX Flat pick-up Permanently installed connection cable (max. length 6 m) with HANQ4/2M plug connector with angled cable outlet Four M8 threaded holes to attach the pick-up. Operating Instructions – MOVITRANS® THM10C / THM10E Pick-Ups... -
Page 11: Assembly And Installation Notes Movitrans® Thm10C
Installation Assembly and installation notes MOVITRANS® THM10C ® Assembly and installation notes MOVITRANS THM10C Comply with the safety notes during installation. Installation notes Pay attention to the following points when installing the THM10C pick-up: 55928AXX M6 retaining screw Retaining plate ®... -
Page 12: Assembly And Installation Notes Movitrans® Thm10E
Installation Assembly and installation notes MOVITRANS® THM10E ® Assembly and installation notes MOVITRANS THM10E Comply with the safety notes during installation. ® Installation notes SEW recommends that you use the MOVITRANS THM10E flat pick up. Note the following points when installing the THM10E pick-up: max. - Page 13 Installation Assembly and installation notes MOVITRANS® THM10E Equipotential Local equipotential bonding must be established between the individual mobile bonding THM10E electrical units so that excessive contact voltage cannot occur in the event of a fault. ® • Ensure high-frequency compatibility when connecting MOVITRANS THM10E and all additional devices to the reference potential of the mobile unit (wide area, metallic contact of the unit housing to the non-coated metallic housing of the mobile...
-
Page 14: Wiring Diagram Movitrans® Thm10C
Installation Wiring diagram MOVITRANS® THM10C ® Wiring diagram MOVITRANS THM10C MOVITRANS ® TPM12B THM10C THM10C THM10C THM10C 58737AXX ® Wiring diagram MOVITRANS THM10E MOVITRANS ® TPM12B THM10E THM10E 53905AXX Operating Instructions – MOVITRANS® THM10C / THM10E Pick-Ups... -
Page 15: Technical Data
Technical Data General technical data of MOVITRANS® THM10C Technical Data ® General technical data of MOVITRANS THM10C ® MOVITRANS THM10C008-022-076-1 ϑ Ambient temperature 0 °...+50 °C Climate class EN 60721-3-3, class 3K3 Storage and transportation temperature Hϑ 0 °C...+80 °C Degree of protection IP65 Pollution class... - Page 16 Technical Data MOVITRANS® THM10C unit data ® Transmittable For the MOVITRANS THM10C008-022-076-1 pick-up, a differentiation is made power between peak power P (20 s with a cycle duration of 5 min) and continuous power P ≈ 1.1). Line cable geometry / Transmittable power Distance x between line cable and Line cable current = 60 A...
-
Page 17: Dimension Sheet For Movitrans® Thm10C
Technical Data Dimension sheet for MOVITRANS® THM10C ® Dimension sheet for MOVITRANS THM10C 112 ±0.5 M6 (4x) 87 ±0.4 69 ±0.4 130 ±0.6 186 ±0.7 55917BXX Operating Instructions – MOVITRANS® THM10C / THM10E Pick-Ups... -
Page 18: General Technical Data Of Movitrans® Thm10E
Technical Data General technical data of MOVITRANS® THM10E ® General technical data of MOVITRANS THM10E ® MOVITRANS THM10E015-010-000-1 ϑ Ambient temperature 0 °...+40 °C Climate class EN 60721-3-3, class 3K3 ϑ Storage and transportation temperature 0 °C...+80 °C Degree of protection IP65 Pollution class 2 according to IEC 60664-1 (VDE 0110-1) -
Page 19: Dimension Sheet For Movitrans® Thm10E
Technical Data Dimension sheet for MOVITRANS® THM10E Wiring diagram for HAN Q4/2M BK/3 BK/1 GNYE BK/2 BK/4 53936AXX Contact no. Core color / core designation Assignment bk/1 Pole 1 bk/2 Pole 1 bk/3 Pole 2 bk/4 Pole 2 gnye 11, 12 Not assigned ®... -
Page 20: Index Of Changes
Index of Changes Changes to the previous version Index of Changes Changes to the previous version The following section lists the changes from edition 06/2005, publication number 11360917 (EN). • Installation, assembly and technical data of the new THM10C pick-up has been included. -
Page 21: Index
Index Index Safety notes Application environment ........5 Installation and startup ........6 Scope of delivery ..........8 Connection cable THM10C ............16 Technical data THM10C THM10E ............18 Connection cable ......... 16 Connection HAN Q4/2M ......16 Dimension sheet .......... 17 Designated use .............4 General ............ - Page 22 16, rue des Frères Zaghnoun Fax +213 21 8222-84 Bellevue El-Harrach 16200 Alger Argentina Assembly Buenos Aires SEW EURODRIVE ARGENTINA S.A. Tel. +54 3327 4572-84 Sales Centro Industrial Garin, Lote 35 Fax +54 3327 4572-21 Service Ruta Panamericana Km 37,5 sewar@sew-eurodrive.com.ar...
