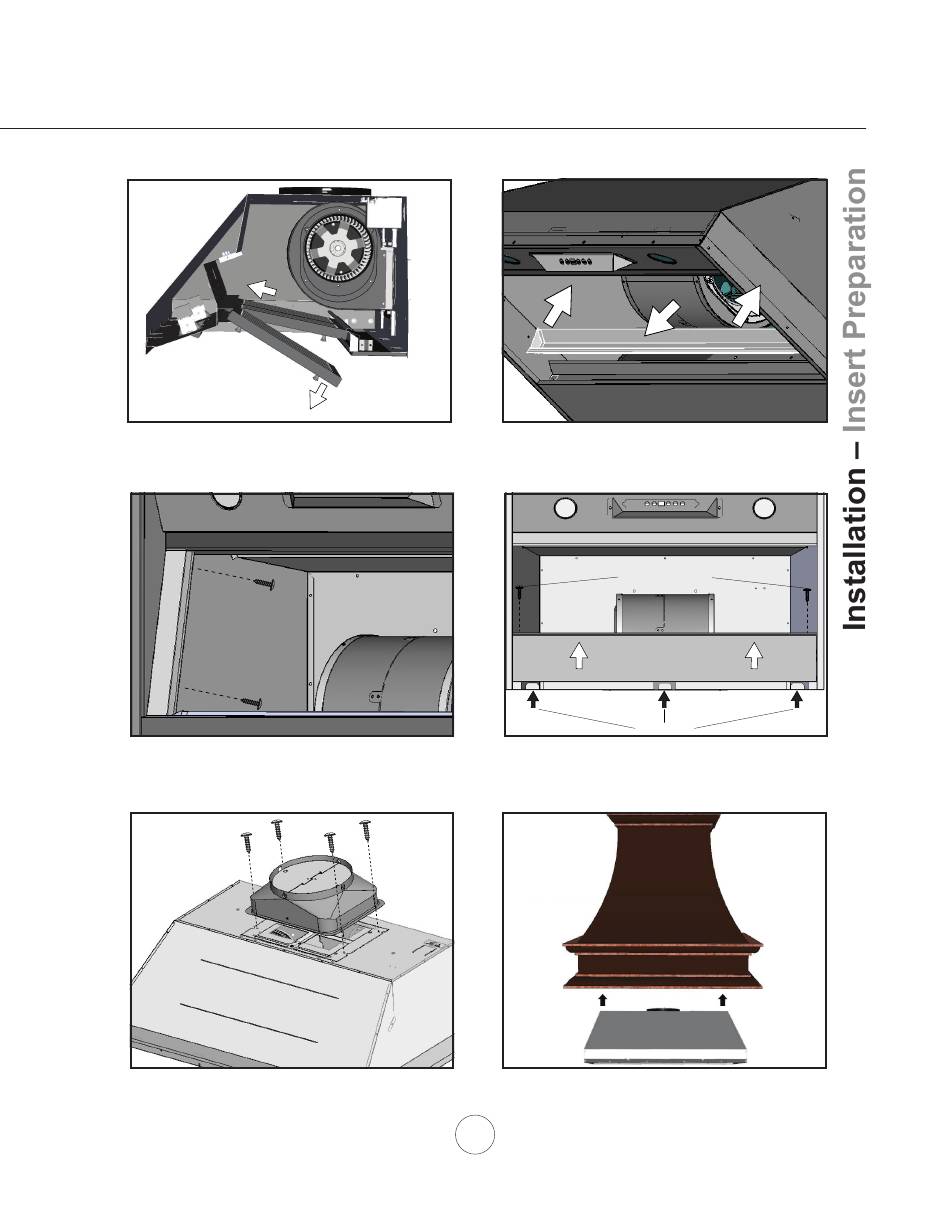

1. Remove baffle filters by: 1) Pulling filter toward
front of insert. 2) Pivoting rear of filter down.
3. Remove left and right side spacer panels by
removing (2) screws from behind each panel.
5. Secure 10" round ducting collar to top of insert by
(4) M4 x 6mm screws.
2
2. Remove grease tray by: 1) Pulling up on tray to
4. Remove bottom panel by: 1) Removing (2)
6. Hood preperation is complete. Refer to page 10,
11
1
2
release from bottom panel. 2) Lifting tray out of
insert body.
1
Bottom Panel Screws
2
Locking Tabs
screws from left and right sides of bottom panel.
2) Pulling bottom panel toward front of insert to
release from locking tabs.
step 4 to complete installation.
