Summary of Contents for Tektronix TRCP0300

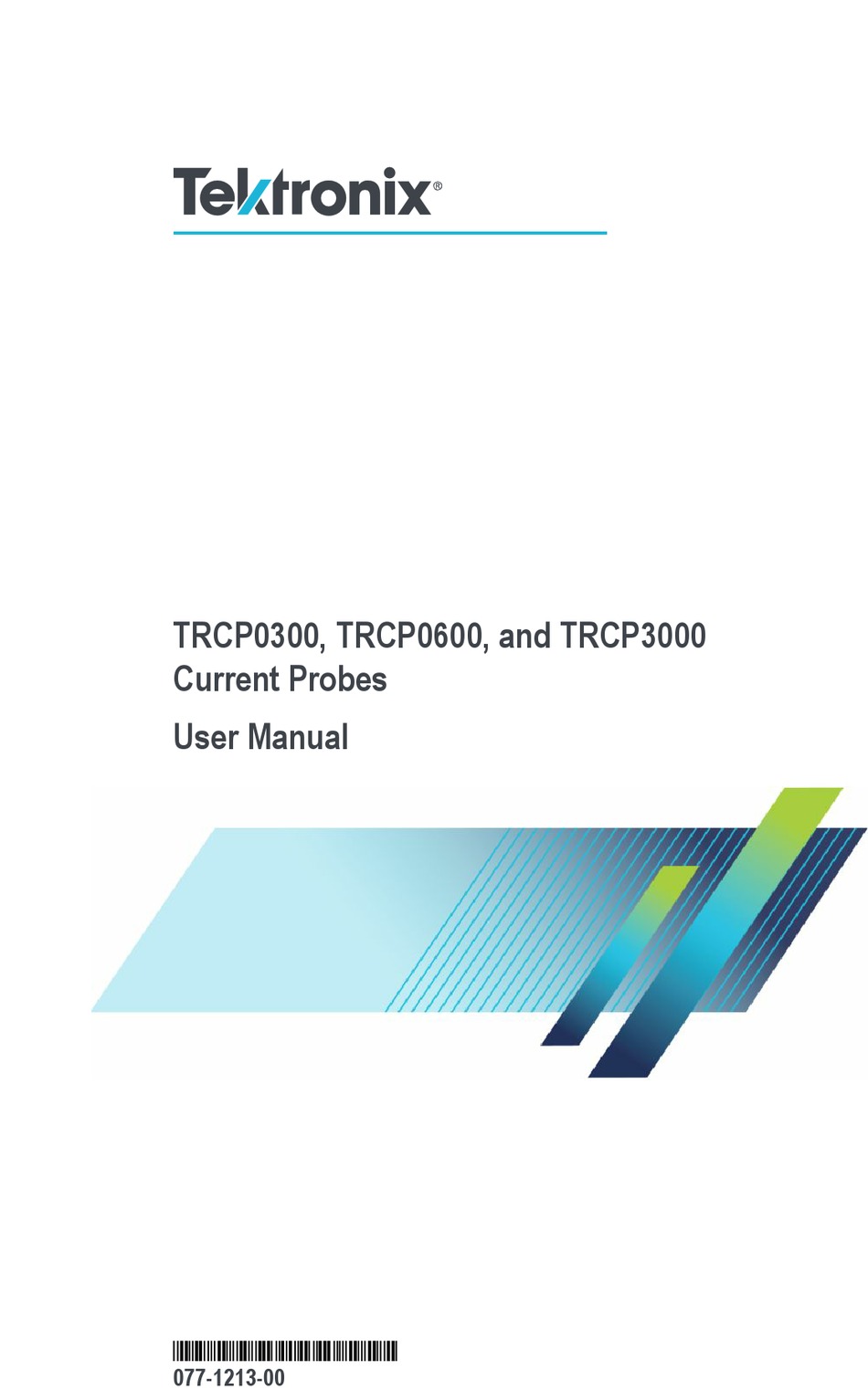

- Page 1 TRCP0300, TRCP0600, and TRCP3000 Current Probes User Manual *P077121300* 077-1213-00...
- Page 3 TRCP0300, TRCP0600, and TRCP3000 Current Probes User Manual Warning The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified to do so. Refer to all safety summaries prior to performing service.
- Page 4 Copyright Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
-
Page 5: Table Of Contents
Using your Rogowski Probe Replacing the battery ..............Switching on ................. Obtaining the best measurement ..........Sensitivity to external currents and voltages ......Output cables ................Cleaning and decontamination ............. Returning your probe for recalibration or repair ......TRCP0300, TRCP0600, TRCP3000 User Manual... - Page 6 Table of Contents TRCP0300, TRCP0600, TRCP3000 User Manual...
-
Page 7: Important Safety Information
When incorporating this equipment into a system, the safety of that system is the responsibility of the assembler of the system. The intended use of this product is for the measurement of AC current. TRCP0300, TRCP0600, TRCP3000 User Manual... - Page 8 Before use, inspect probes, test leads, and accessories for mechanical damage and replace when damaged. Do not use probes or test leads if they are damaged, if there is exposed metal, or if a wear indicator shows. TRCP0300, TRCP0600, TRCP3000 User Manual...
- Page 9 BNC cables for any measurement. Beware of high voltages. Connect and disconnect properly. Connect and disconnect properly. De-energize the circuit under test before connecting or disconnecting the current probe. Inspect the coil and accessories. TRCP0300, TRCP0600, TRCP3000 User Manual...
-
Page 10: Service Safety Summary
These terms may appear in this manual: WARNING. Warning statements identify conditions or practices that could result in injury or loss of life. CAUTION. Caution statements identify conditions or practices that could result in damage to this product or other property. TRCP0300, TRCP0600, TRCP3000 User Manual... -
Page 11: Terms On The Product
(This symbol may also be used to refer the user to ratings in the manual.) The following symbols may appear on the product: TRCP0300, TRCP0600, TRCP3000 User Manual... - Page 12 Important safety information viii TRCP0300, TRCP0600, TRCP3000 User Manual...
-
Page 13: Compliance Information
IEC 61010-1. Safety Requirements for Electrical Equipment for ■ Measurement, Control, and Laboratory Use – Part 1: General Requirements. IEC 61010-2-032. Particular requirements for handheld current ■ clamps for electrical measurement and test equipment. Equipment type Test and measuring equipment. TRCP0300, TRCP0600, TRCP3000 User Manual... - Page 14 Measurement Category II. For measurements performed on ■ circuits directly connected to the low-voltage installation. Measurement Category III. For measurements performed in the ■ building installation. Measurement Category IV. For measurements performed at the ■ source of low-voltage installation. TRCP0300, TRCP0600, TRCP3000 User Manual...
-
Page 15: Environmental Compliance
This symbol indicates that this product complies with the applicable European Union requirements according to Directives 2012/19/EU and 2006/66/EC on waste electrical and electronic equipment (WEEE) and batteries. For information about recycling options, check the Tektronix Web site (www.tek.com/productrecycling). TRCP0300, TRCP0600, TRCP3000 User Manual... - Page 16 Compliance Information TRCP0300, TRCP0600, TRCP3000 User Manual...
-
Page 17: Specifications
Specifications The Tektronix Rogowski Current Probes, the TRCP0300, TRCP0600, and TRCP3000, combines high bandwidth performance with minimal disruption to the circuit under test. Refer to these instructions when using your probe. They will help you obtain the best and safest performance from your product. - Page 18 ±2% variation of accuracy with conductor position in the loop Obtaining the best measurement on page 12 Linearity ±0.05% of reading Coil insulation TRCP0300: 1.2 kV TRCP0600: 5 kV TRCP3000: 10 kV Operation with external adaptor DC supply voltage 12 VDC (±10%) DC socket type 3.5 mm OD and 1.3 mm ID jack socket, center positive...
- Page 19 1000 V CAT III Environmental Rated for indoor use Altitude Up to 2,000 m (6,562 ft) Installation Category Pollution Degree Maximum relative 80% up to 31 °C Decreasing linearly to 50% at 40 °C humidity TRCP0300, TRCP0600, TRCP3000 User Manual...
- Page 20 Specifications TRCP0300, TRCP0600, TRCP3000 User Manual...
-

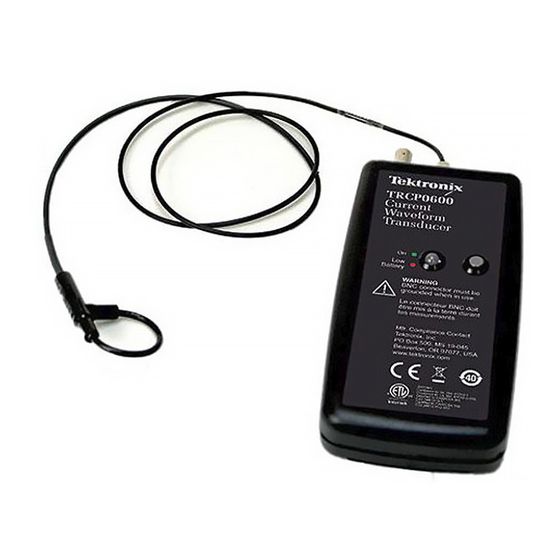

Page 21: Tektronix Rogowski Current Probe
Tektronix Rogowski Current Probe Index number Description Rogowski coil (probe) Probe free end Ferrule Connecting cable DC power socket DC power status LED Enclosure TRCP0300, TRCP0600, TRCP3000 User Manual... -
Page 22: Handling Instructions
To prolong the life of the coil please observe the following handling instructions. The free end of the coil is unclipped in the direction shown. While the illustration below is specifically related to the TRCP0300, Similar handling instructions apply for the TRCP0600 and TRCP3000. TRCP0300, TRCP0600, TRCP3000 User Manual... -
Page 23: Safety And Pre-Use Checks
If hazardous live voltages are present and accessible in the installation, appropriate protective equipment must be used. WARNING. The Rogowski coil must not be used if the coil outer layer is damaged or in any way compromised. TRCP0300, TRCP0600, TRCP3000 User Manual... -
Page 24: The Rogowski Coil
WARNING. The voltage rating (safe PEAK working voltage) is clearly labeled on the cable adjacent to the coil. For the TRCP0300, TRCP0600, and TRCP3000, see the coil insulation and voltage rating in Specifications. -
Page 25: The Integrator
Healthy batteries are indicated by the Green Status Indicator LED. If the LED is Red, the batteries are delivering less than 2V and must be replaced. When the DC voltage is present the batteries are inoperative. TRCP0300, TRCP0600, TRCP3000 User Manual... - Page 26 Tektronix Rogowski Current Probe TRCP0300, TRCP0600, TRCP3000 User Manual...
-
Page 27: Using Your Rogowski Probe
Use the Power button to switch the transducer On by pressing and releasing the button. Turn the transducer Off by pressing and releasing the button when the transducer is on. The transducer is on when the Status Indicator LED is Green. TRCP0300, TRCP0600, TRCP3000 User Manual... -
Page 28: Obtaining The Best Measurement
If there is a surface with a high voltage very close to the coil and the voltage is subject to high rates of change (e.g. 1kV/µs) or high frequency oscillations in the MHz range, then measurement error can arise due to capacitive coupling to the coil. TRCP0300, TRCP0600, TRCP3000 User Manual... -
Page 29: Output Cables
Returning your probe for recalibration or repair To return your product for repair or recalibration, please contact Tektronix in advance for shipping instructions (refer to Contacting Tektronix for contact details). - Page 30 Using your Rogowski Probe TRCP0300, TRCP0600, TRCP3000 User Manual...
