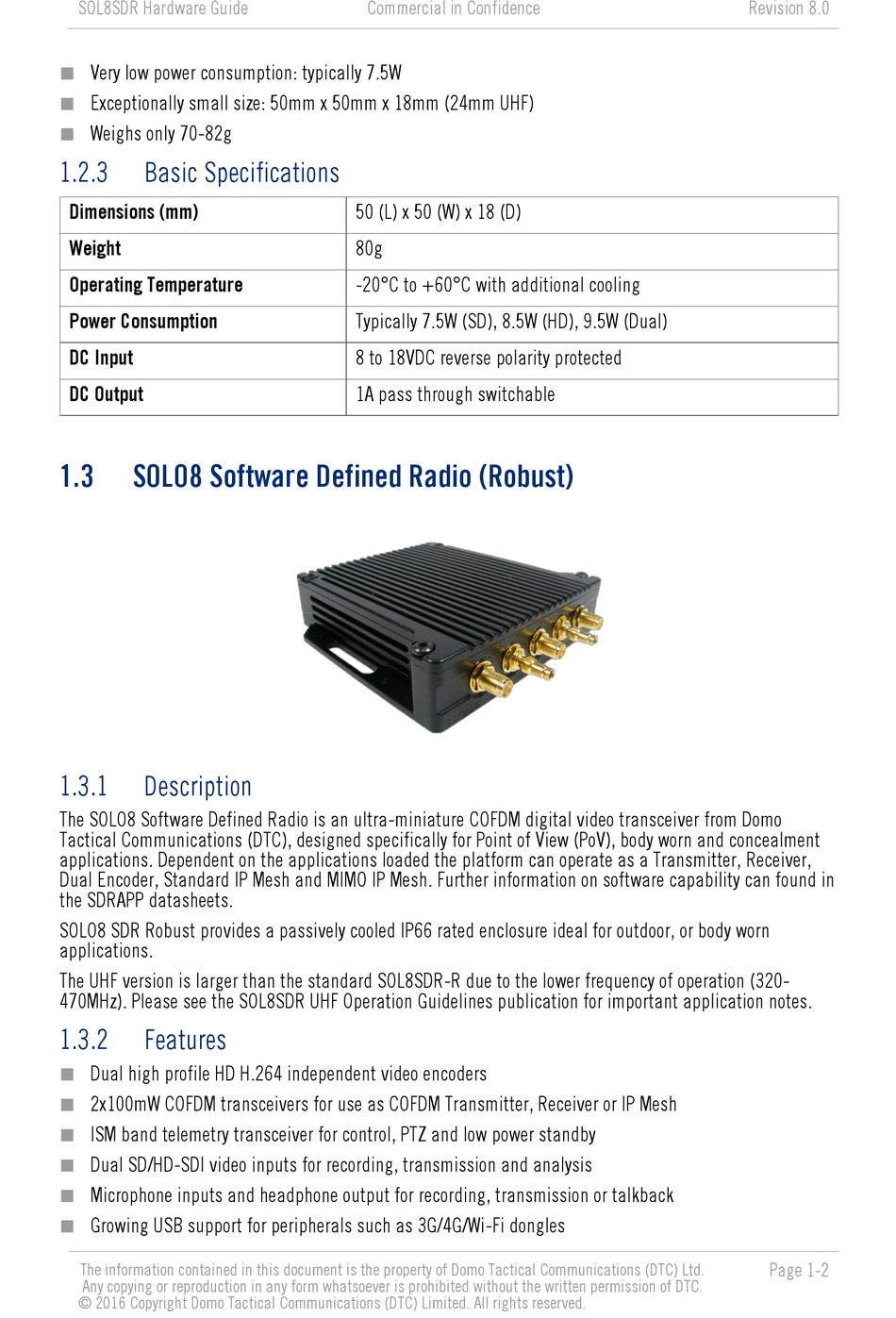

Solo8 Software Defined Radio (Robust) - DTC SOL8SDR-R Hardware Manual

SOL8SDR Hardware Guide
Very low power consumption: typically 7.5W

Exceptionally small size: 50mm x 50mm x 18mm (24mm UHF)

Weighs only 70-82g

1.2.3 Basic Specifications
Dimensions (mm)
Weight
Operating Temperature
Power Consumption
DC Input
DC Output
1.3

SOLO8 Software Defined Radio (Robust)

1.3.1 Description
The SOLO8 Software Defined Radio is an ultra-miniature COFDM digital video transceiver from Domo
Tactical Communications (DTC), designed specifically for Point of View (PoV), body worn and concealment
applications. Dependent on the applications loaded the platform can operate as a Transmitter, Receiver,
Dual Encoder, Standard IP Mesh and MIMO IP Mesh. Further information on software capability can found in
the SDRAPP datasheets.
SOLO8 SDR Robust provides a passively cooled IP66 rated enclosure ideal for outdoor, or body worn
applications.
The UHF version is larger than the standard SOL8SDR-R due to the lower frequency of operation (320-
470MHz). Please see the SOL8SDR UHF Operation Guidelines publication for important application notes.
1.3.2 Features
Dual high profile HD H.264 independent video encoders

2x100mW COFDM transceivers for use as COFDM Transmitter, Receiver or IP Mesh

ISM band telemetry transceiver for control, PTZ and low power standby

Dual SD/HD-SDI video inputs for recording, transmission and analysis

Microphone inputs and headphone output for recording, transmission or talkback

Growing USB support for peripherals such as 3G/4G/Wi-Fi dongles

The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2016 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Commercial in Confidence
50 (L) x 50 (W) x 18 (D)
80g
-20°C to +60°C with additional cooling
Typically 7.5W (SD), 8.5W (HD), 9.5W (Dual)
8 to 18VDC reverse polarity protected
1A pass through switchable
