SOL8SDR Hardware Guide

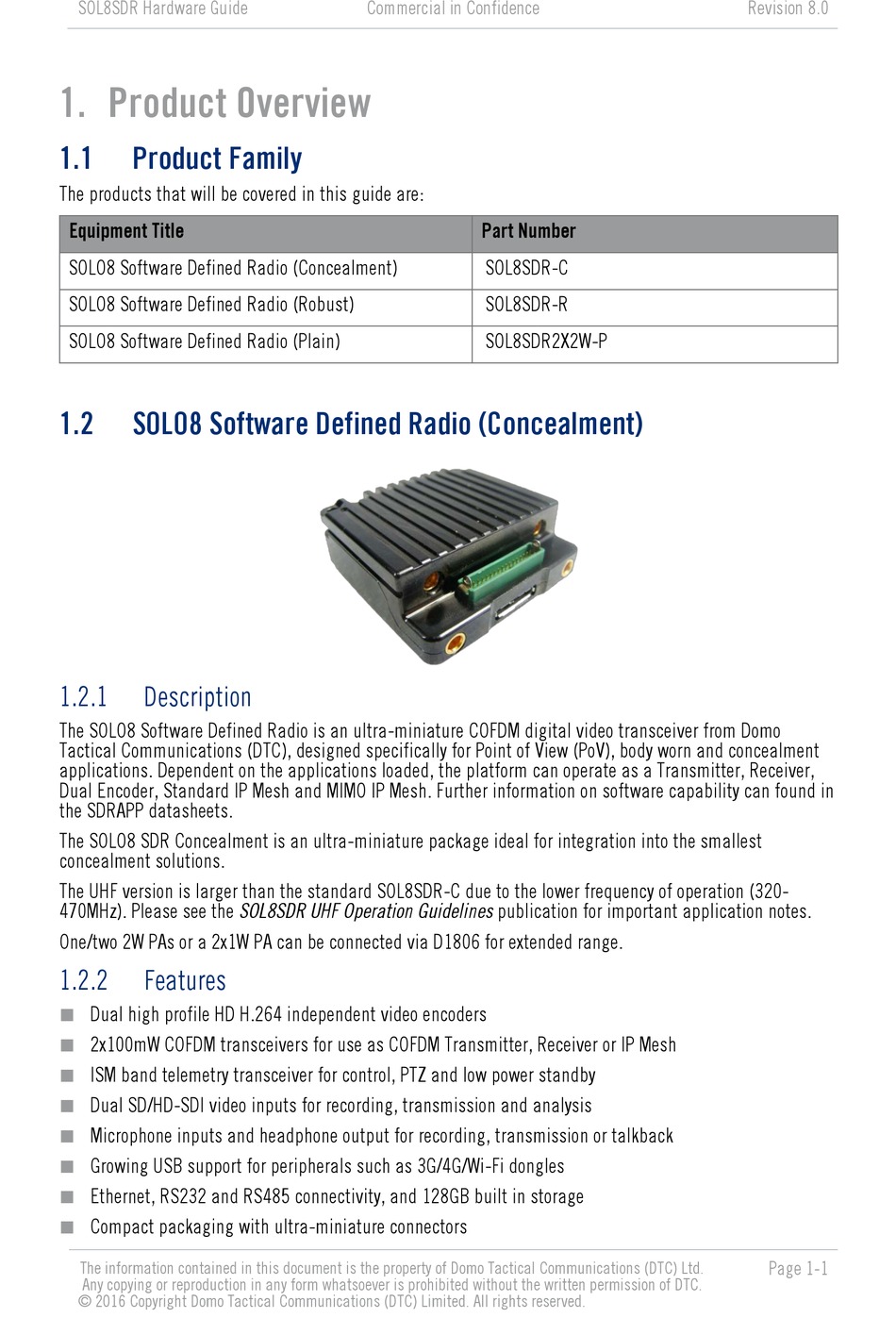

1. Product Overview

1.1

Product Family

The products that will be covered in this guide are:
Equipment Title

SOLO8 Software Defined Radio (Concealment)

SOLO8 Software Defined Radio (Robust)
SOLO8 Software Defined Radio (Plain)
1.2 SOLO8 Software Defined Radio (Concealment)
1.2.1 Description
The SOLO8 Software Defined Radio is an ultra-miniature COFDM digital video transceiver from Domo
Tactical Communications (DTC), designed specifically for Point of View (PoV), body worn and concealment
applications. Dependent on the applications loaded, the platform can operate as a Transmitter, Receiver,
Dual Encoder, Standard IP Mesh and MIMO IP Mesh. Further information on software capability can found in
the SDRAPP datasheets.
The SOLO8 SDR Concealment is an ultra-miniature package ideal for integration into the smallest
concealment solutions.
The UHF version is larger than the standard SOL8SDR-C due to the lower frequency of operation (320-
470MHz). Please see the SOL8SDR UHF Operation Guidelines publication for important application notes.
One/two 2W PAs or a 2x1W PA can be connected via D1806 for extended range.
1.2.2 Features
Dual high profile HD H.264 independent video encoders

2x100mW COFDM transceivers for use as COFDM Transmitter, Receiver or IP Mesh

ISM band telemetry transceiver for control, PTZ and low power standby

Dual SD/HD-SDI video inputs for recording, transmission and analysis

Microphone inputs and headphone output for recording, transmission or talkback

Growing USB support for peripherals such as 3G/4G/Wi-Fi dongles

Ethernet, RS232 and RS485 connectivity, and 128GB built in storage

Compact packaging with ultra-miniature connectors

The information contained in this document is the property of Domo Tactical Communications (DTC) Ltd.
Any copying or reproduction in any form whatsoever is prohibited without the written permission of DTC.
© 2016 Copyright Domo Tactical Communications (DTC) Limited. All rights reserved.
Commercial in Confidence
Part Number
SOL8SDR-C
SOL8SDR-R
SOL8SDR2X2W-P
Revision 8.0
Page 1-1
