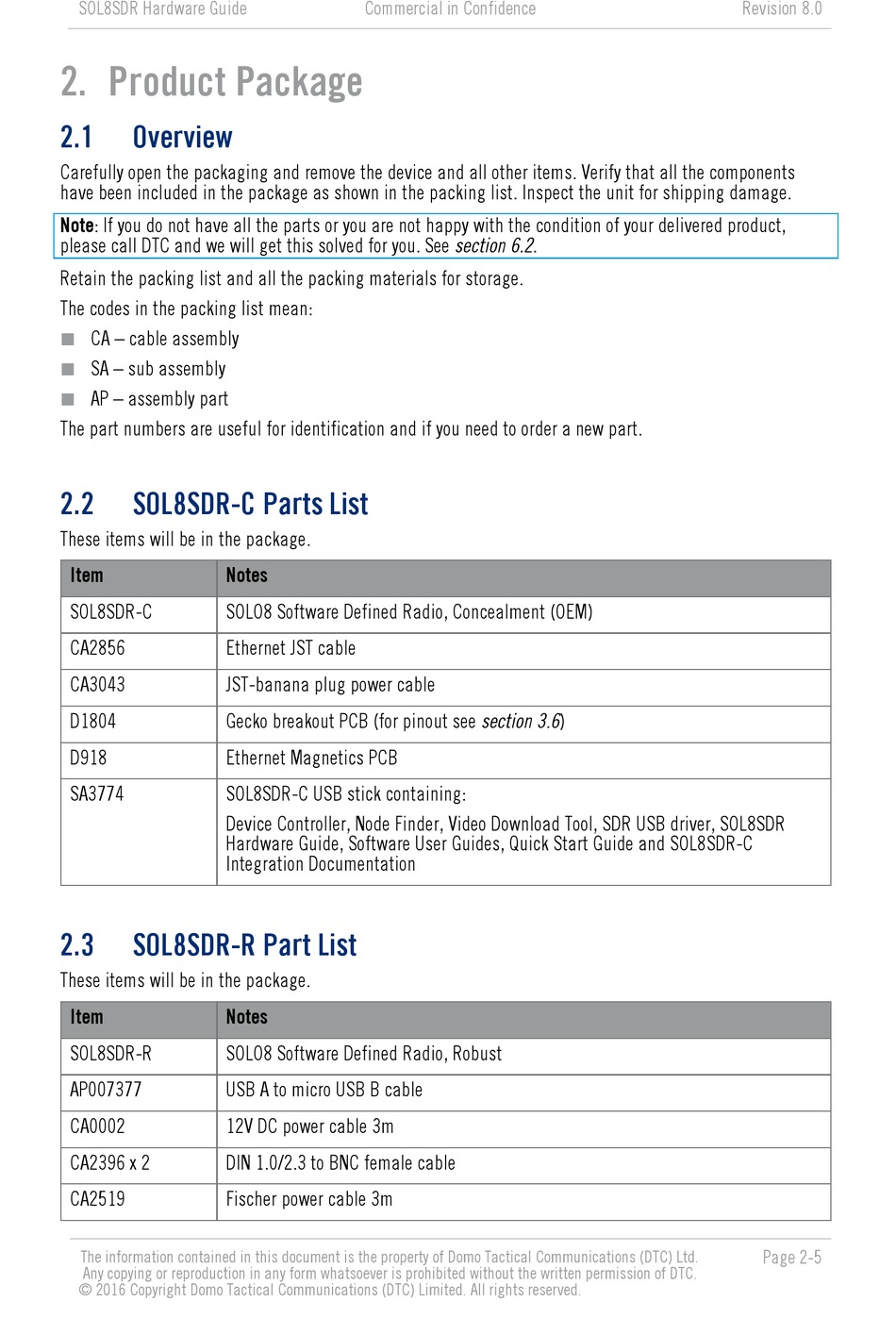

2. Product Package

2.1

Overview

Carefully open the packaging and remove the device and all other items. Verify that all the components
have been included in the package as shown in the packing list. Inspect the unit for shipping damage.
Note: If you do not have all the parts or you are not happy with the condition of your delivered product,
please call DTC and we will get this solved for you. See section 6.2.
Retain the packing list and all the packing materials for storage.
The codes in the packing list mean:
CA – cable assembly

SA – sub assembly

AP – assembly part

The part numbers are useful for identification and if you need to order a new part.
2.2

SOL8SDR-C Parts List

These items will be in the package.
Item Notes
SOL8SDR-C SOLO8 Software Defined Radio, Concealment (OEM)
CA2856 Ethernet JST cable
CA3043 JST-banana plug power cable
D1804 Gecko breakout PCB (for pinout see section 3.6)
D918 Ethernet Magnetics PCB
SA3774 SOL8SDR-C USB stick containing:
Device Controller, Node Finder, Video Download Tool, SDR USB driver, SOL8SDR
Hardware Guide, Software User Guides, Quick Start Guide and SOL8SDR-C
Integration Documentation
2.3

SOL8SDR-R Part List

These items will be in the package.
Item Notes
SOL8SDR-R SOLO8 Software Defined Radio, Robust
AP007377 USB A to micro USB B cable
CA0002 12V DC power cable 3m
CA2396 x 2 DIN 1.0/2.3 to BNC female cable
CA2519 Fischer power cable 3m
