Revision: 2.0

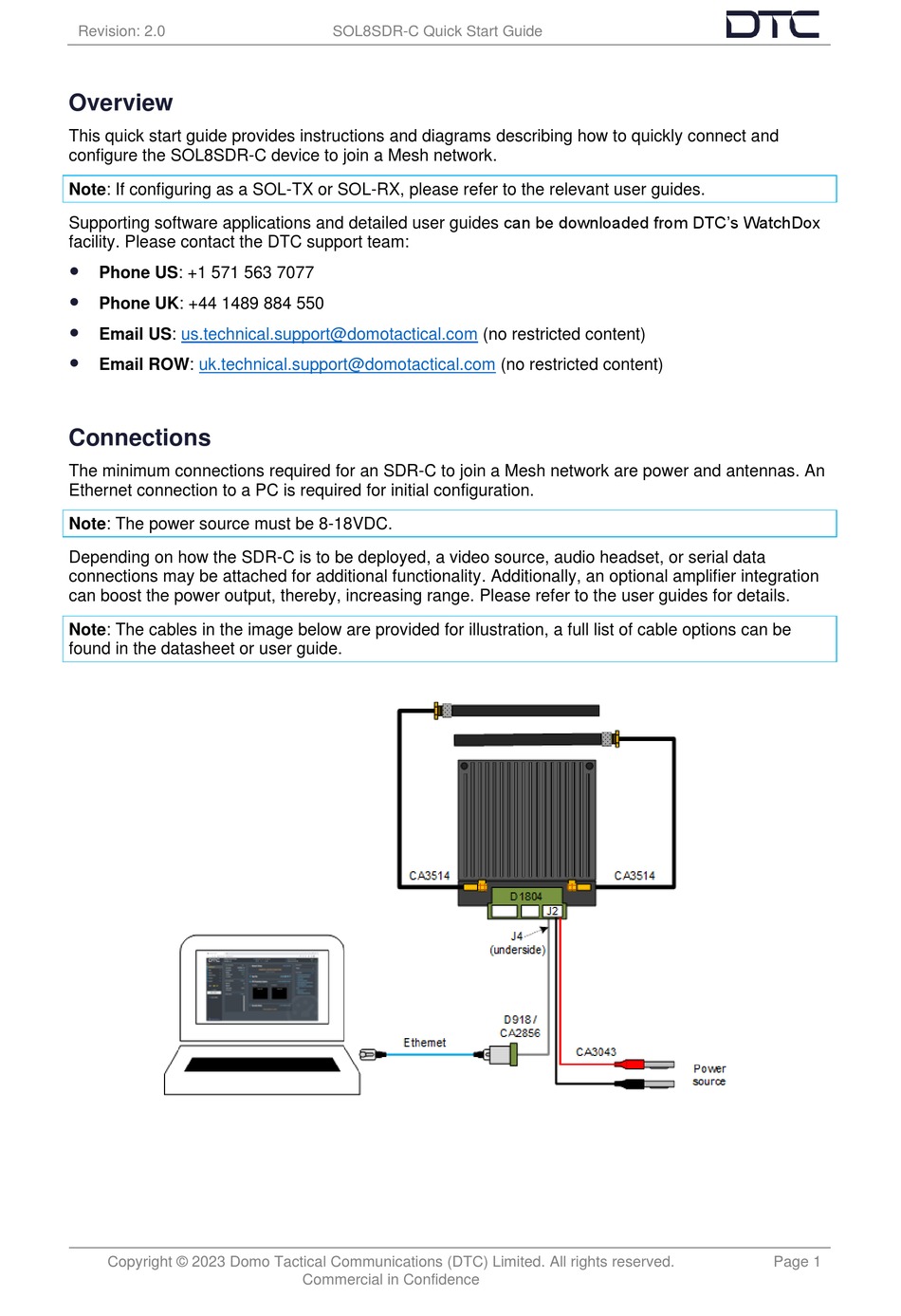

Overview

This quick start guide provides instructions and diagrams describing how to quickly connect and

configure the SOL8SDR-C device to join a Mesh network.

Note: If configuring as a SOL-TX or SOL-RX, please refer to the relevant user guides.

Supporting software applications and detailed user guides can be downloaded from DTC's WatchDox

facility. Please contact the DTC support team:



Phone US: +1 571 563 7077



Phone UK: +44 1489 884 550



Email US:

us.technical.support@domotactical.com



Email ROW:

uk.technical.support@domotactical.com

The minimum connections required for an SDR-C to join a Mesh network are power and antennas. An

Ethernet connection to a PC is required for initial configuration.

Note: The power source must be 8-18VDC.

Depending on how the SDR-C is to be deployed, a video source, audio headset, or serial data

connections may be attached for additional functionality. Additionally, an optional amplifier integration

can boost the power output, thereby, increasing range. Please refer to the user guides for details.

Note: The cables in the image below are provided for illustration, a full list of cable options can be

found in the datasheet or user guide.

SOL8SDR-C Quick Start Guide

Commercial in Confidence

(no restricted content)

Page 1
