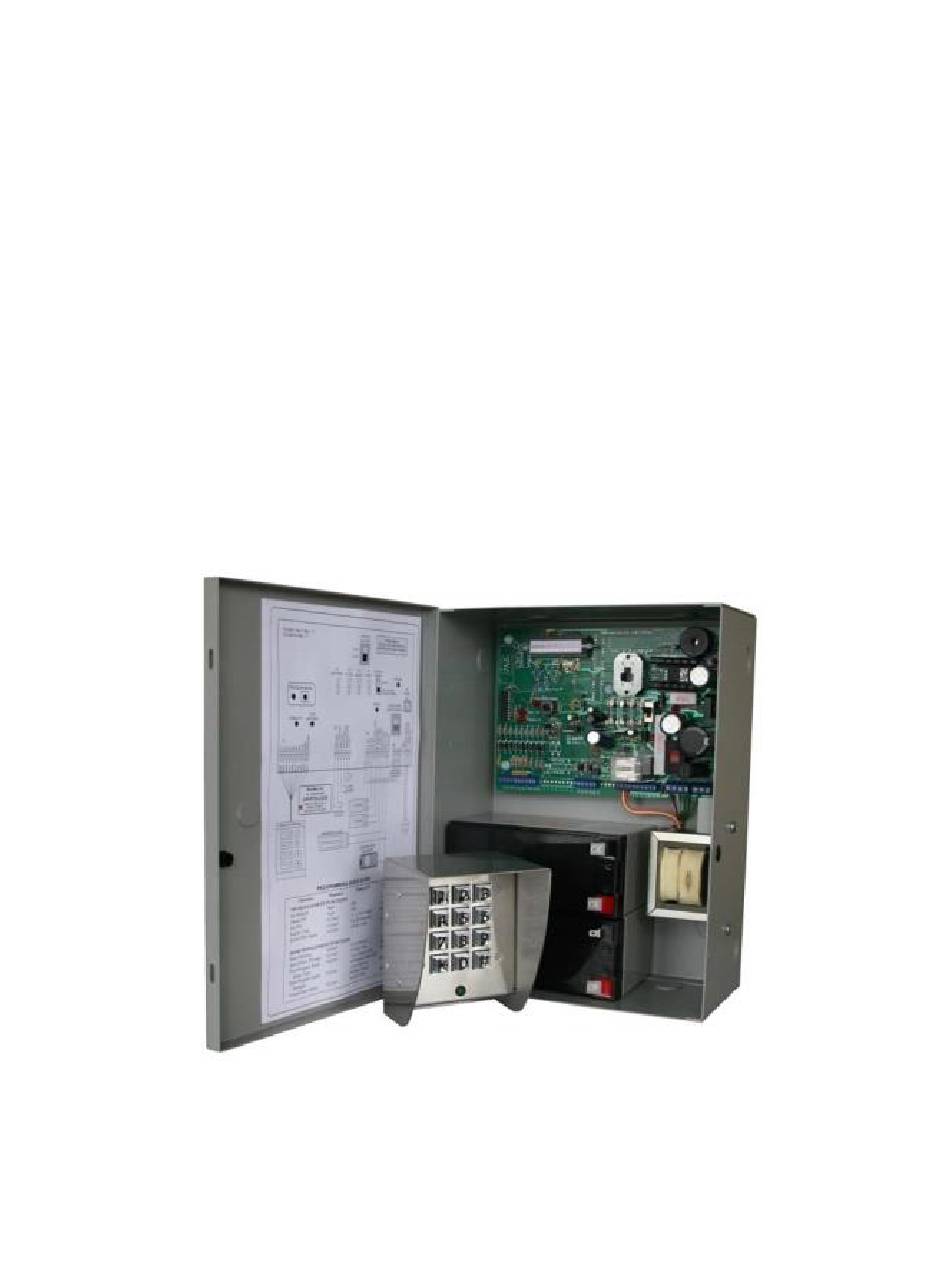

- Page 1 CRYPTO-LOCK Model CC-8521B Access Control System Instruction Manual Ed. 11/17 Moniteq, Inc.
-
Page 3: Table Of Contents
Table of Contents Introduction ............................4 Specifications ............................6 Supplied Equipment ..........................7 Functions of Controls and Indicators ..................... 8 KEYPAD ............................8 PROGRAMMING MODE ........................8 CONTROL UNIT ..........................8 Installation ............................. 9 Setup ..............................10 Programming ............................12 Operating Procedure ........................... -
Page 4: Introduction
Introduction The Crypto-Lock Model CC-8521B is a single door access control system providing keypad control using a single 3-6 digit PIN code. It can be used with most magnetic and electric strikes, including doors with both features. Typical installation is illustrated in Figure 1. - Page 5 CC-8521B CRYPTO -LOCK Low Battery Warning Output Stand-by Batteries External Magnetic Lock Annunciator (fail-safe) Output Door Switch Release Button Electric Lock or Strike (fail-secure) Keypad with Status LED 115/230 Vac, 50/60Hz Figure 1, Typical Installation...
-
Page 6: Specifications
Specifications Power Required 115 or 230VAC, 50 or 60Hz, 25W Output 12VDC or 25 VDC, 4A continuous In-rush Current Capacity Relay Contacts 10A, SPDT (Form C) Battery Backup 12VDC or 24VDC, automatic transfer and charging (batteries optional) Enclosure Description 19 gauge steel, powder coated paint, gray color, knockouts for conduit and cam lock (included), holes to accommodate padlock (not included) -
Page 7: Supplied Equipment
PURPOSE Control Unit Main Processor and Power Supply Keypad with 15’ Cable Accepts PIN Code Entries Manual, Crypto-Lock CC-8521B Installation and Operating Instructions Keypad Mounting Template Keypad Installation Line Cord with U.S. 3-prong plug, 10 ft. Connection to AC Power Threaded Rod, #8 x 12”... -
Page 8: Functions Of Controls And Indicators
Functions of Controls and Indicators KEYPAD Normal Operation Mode Keys 1 through 0: enter PIN code # Key: sound annunciator in Control Unit and activate 12VDC output signal for use with external device (not included) * Key: not used Green LED: illuminates when correct PIN code has been entered and door is released; flashes when any key is pressed PROGRAMMING MODE Keys 1 through 0: enter programming codes... -
Page 9: Installation
Installation WARNING: DO NOT CONNECT AC POWER CORD TO POWER SOURCE UNTIL ALL SET UP IS COMPLETE!!! Consult Figure 2 for installation. 1) Mount the keypad approximately 36 to 44 inches above the floor on the unsecured side of the door. Use the keypad installation template to mark and drill holes. Through- wall mounting can be accomplished using the #8 threaded rod, acorn nuts, hex nuts, lock washers and 1 ½”... -
Page 10: Setup
Setup 1) Set the Output Source switch (S2) to 12 or 24VDC as dictated by the voltage rating of the lock being used. If both lock types are being used, they must have the same voltage rating. 2) Set the Output Mode switch to LIMIT when used with Brute electric lock or a similar heavy-duty solenoid operated lock. - Page 11 Figure 2, Wiring Diagram...
-
Page 12: Programming
Programming Function Sequence Range of N Default PIN Management Functions Set Defaults *00* Delete PIN *10* Set PIN *11*N* 000 to 999, 9999, 99999 or No valid PIN 999999 Penalty Time *12*N* 5 to 60 (seconds) 5 seconds Invalid PIN Alarm *13*N* 0=off, 1=on Door Management Functions... - Page 13 PINs with only 3 or 4 digits. An invalid PIN alarm feature sounds an alarm (three short beeps) whenever an invalid PIN is entered. This feature is disabled by default. To enable, enter *13*1*. To disable, enter *13*0*. Door Monitoring: The system includes a number of functions that make it possible to monitor the status of the door during operation.
-
Page 14: Operating Procedure
If the external release button has been installed, it can be used by an attendant to release the lock from a location on the secure side of the door. Diagrams and schematics are available on www.moniteq.com. Various alarm situations activate different sequences of sounds on the alarm in the control unit. -
Page 16: Limited Warranty
Limited Warranty Moniteq, Inc. products are warranted to be free from factory defects for a period of one year from the date of shipment. The repair or replacement of a defective part shall be at the option of the factory when the product is shipped, prepaid and insured, by the owner.
