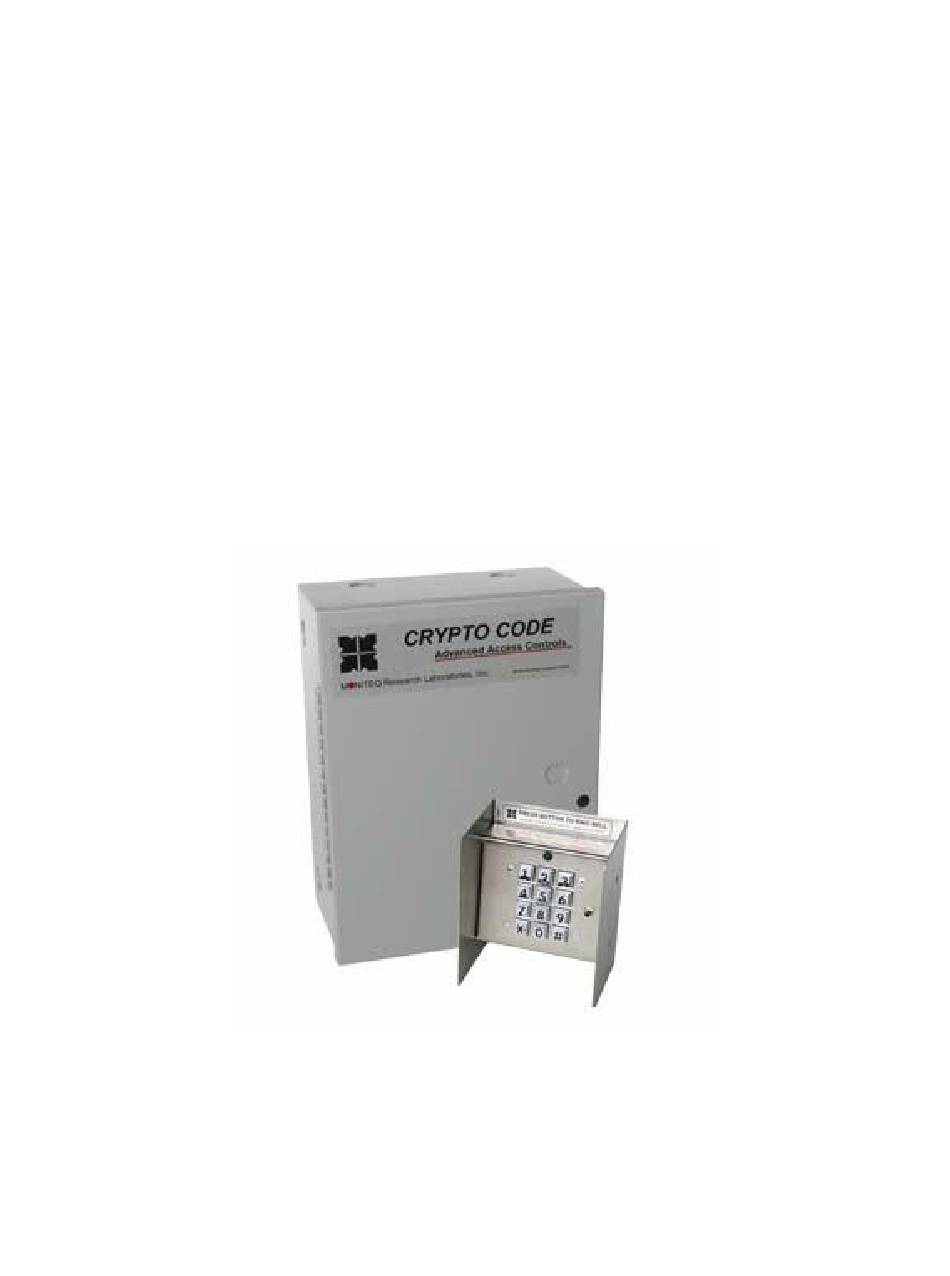

- Page 1 CRYPTO-LOCK Model CC-8521A Access Control System Instruction Manual Ed. 10/17 Moniteq, Inc.
-
Page 3: Table Of Contents
Table of Contents Introduction ............................4 Specifications ............................6 Supplied Equipment ..........................6 Functions of Controls and Indicators ..................... 7 Keypad .............................. 7 Logic Board ............................7 Power Supply Board .......................... 7 Installation ............................. 8 Setup ..............................9 Operating Procedure ........................... 11 Limited Warranty .......................... -
Page 4: Introduction
Introduction The Crypto-Lock Model CC-8521A is a single door access control system providing keypad control using a single 3-5 digit PIN code. Typical installation is illustrated in Figure 1. The system includes a built-in 12VDC and 24VDC, 4A power supply to power electric strikes and magnetic locks, eliminating the need for a separate power unit. - Page 5 CC-8521A CRYPTO -LOCK Low Battery Warning Output Stand-by Batteries External Magnetic Lock Annunciator (fail-safe) Output Release Button Electric Lock or Strike (fail-secure) Keypad with Status LED and Visitor Button 115/230 Vac, 50/60Hz Figure 1, Typical Installation...
-
Page 6: Specifications
ITEM PURPOSE Control Unit Main Processor and Power Supply Keypad with 15’ Cable Accepts PIN Code Entries Manual, Crypto-Lock CC-8521A Installation and Operating Instructions Keypad Mounting Template Keypad Installation Line Cord with U.S. 3-prong plug, 10 ft. Connection to AC Power Threaded Rod, #8 x 12”... -
Page 7: Functions Of Controls And Indicators
Functions of Controls and Indicators Keypad Keys 1 through 0: enter PIN code Keys * and #: not used Green LED: illuminates when correct PIN code has been entered and door is released Annunciator Button: sounds annunciator in control unit and activates 12VDC signal for an external device (not included) Logic Board PIN Code Digit Select Switches: set the PIN code;... -
Page 8: Installation
Installation WARNING: DO NOT CONNECT AC POWER CORD TO POWER SOURCE UNTIL ALL SET UP IS COMPLETE!!! Consult Figure 2 for installation. 1) Mount the keypad approximately 36 to 44 inches above the floor on the unsecured side of the door. Use the keypad installation template to mark and drill holes. Through- wall mounting can be accomplished using the #8 threaded rod, acorn nuts, hex nuts, lock washers and 1 ½”... -
Page 9: Setup
Setup 1) Set the Output Source switch (S2) to 12 or 24VDC as dictated by the voltage rating of the lock being used. 2) Set the Output Mode switch to LIMIT when used with Brute electric lock or a similar heavy-duty solenoid operated lock. - Page 10 Figure 2, Wiring Diagram...
-
Page 11: Operating Procedure
PIN code on the keypad will release the door. If the external release button has been installed, it can be used by an attendant to release the lock from a location on the secure side of the door. Diagrams and schematics are available on www.moniteq.com. -
Page 12: Limited Warranty
Limited Warranty Moniteq, Inc. products are warranted to be free from factory defects for a period of one year from the date of shipment. The repair or replacement of a defective part shall be at the option of the factory when the product is shipped, prepaid and insured, by the owner.
