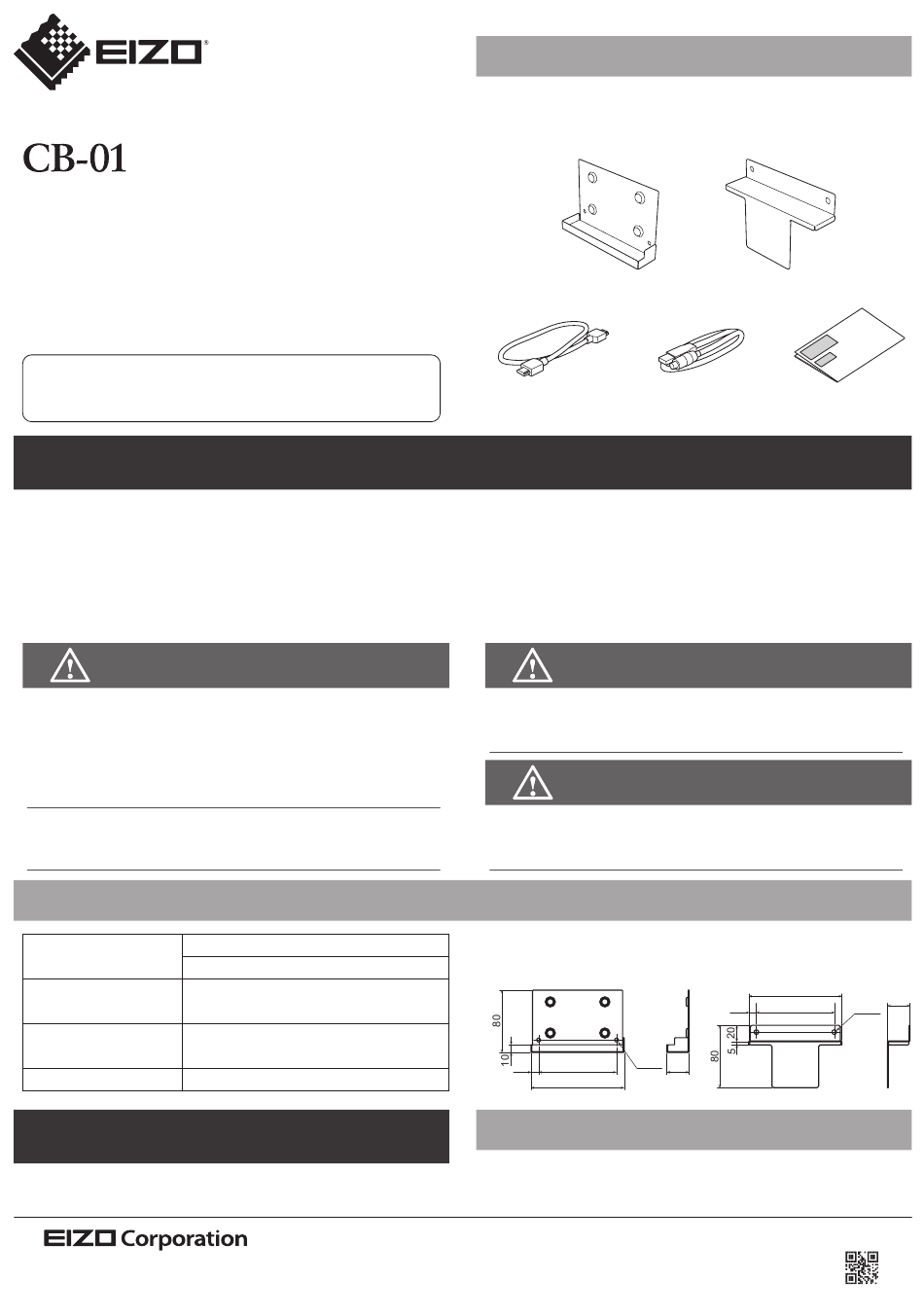

User's Manual
SDI Converter Bracket
Thank you very much for choosing an EIZO product. Please read
this User's Manual carefully before using this product in order to
familiarize yourself with safe and effective usage.
Please retain this User's Manual for future reference.
For information regarding compatibility of the CG3145 and
SDI-HDMI converter, please refer to our website
(www.eizoglobal.com).

Precautions

• Only the following SDI-HDMI converter can be attached to this
product. Attaching any other converter to this product may lead
to the converter falling, which may result in injury or equipment
damage.
• AJA Video Systems, Inc. manufactured Hi5-4K-Plus
• Use the monitor in a landscape display orientation when using
this product. The converter cannot be used when the monitor is
oriented in portrait display.
WARNING
• Be sure to use the screws that were attached to the
monitor as the screws for installing the converter, and
tighten them completely
Install them securely following the instructions in this manual.
If not sufficiently attached, the converter may come off, which
may result in injury or equipment damage.
• Re-tighten the screws regularly
If the screws become loose, the converter may fall, which may
result in injury or equipment damage.

Specifications

Mounting bracket A: 108 g
Weight
Mounting bracket B: 73 g
Dimension of
100 mm × 100 mm
installation holes
Dedicated converter
USB Type-A, or DC power connector
power cable
for converter: 55 cm
HDMI cable
HDMI to HDMI: 50 cm

Disposal

Dispose of this product according to the regulations issued by
your local authority.
153 Shimokashiwano, Hakusan, Ishikawa 924-8566 Japan
www.eizoglobal.com
Copyright © 2019 EIZO Corporation. All rights reserved.

Package Contents

Check that all of the following items are contained in the package.
If any of these items are missing, contact your local EIZO
representative.
Mounting bracket A
HH050HS
Dedicated converter power cable
HDMI cable
• This product can only be attached to certain models of the
ColorEdge CG3145-BSBK (base stand model (fixed stand model)).
Serial numbers of compatible models (S/N):
  - 3xxxxxxx and on
- 2xxxxxxx, a portion of the previous models
    (For details, contact your local EIZO representative.)
• Retain the metal cover that was removed to allow installation.
WARNING
• Do not disassemble or modify the cable or power plug
Doing so may cause malfunction.
CAUTION
• Take care not to pinch your fingers between the converter
and the mounting brackets during installation
• Outline Dimensions (unit: mm)
Left: mounting bracket A Right: mounting bracket B
2xΦ5
9.9
100
119.7
Inquiries
Inquiries regarding this product should be made to your local
EIZO representative.
1st Edition-April, 2019 Printed in Japan.
Mounting bracket B
User's Manual
(this document)
119.7
9.9
100
28.7
00N0N124A1
UM-CB-01-EN
28.7
2xΦ6
