Caution
• This controller is intended to control equipment under normal operating
conditions. If failure or malfunction of the controller may lead to abnormal
operating conditions that may result in personal injury or damage to the
equipment or other property, devices (limit or safety controls) or systems
(alarm or supervisory) intended to warn of or protect against failure or
malfunction of the controller must be incorporated into and maintained as
part of the control system.
• This controller carries a one (1) year warranty. This warranty is limited to
the controller only.

1. Product Overview

This controller SYL-2615 is a Wi-Fi enabled dual-probe PID controller
designed for charcoal smokers and grills. It not only monitors the pit and food
temperature, it also controls the temperature. It will regulate a 12 VDC blower
to stabilize the temperature in the charcoal smoker by either PWM or fan
speed. It has built-in solid state relay that can drive a 12 VDC operated blower
up to 60 CFM. It has a built-in buzzer that can be set for both low limit and
high limit alarm.
Two RTD temperature probes are available on this controller. Probe 1 is for
measuring the smoker temperature (Pit Temp). The controller regulates the
power output of the controller based on the temperature difference between
Probe 1 and the Pit set temperature. Probe 2 is for measuring the food
temperature (Food Temp), which can be used to decide whether it is the time
to change the set temperature for the pit, or to decide whether is food is done.
This controller can be set to single-step mode, or multi-step mode. In the
single-step mode, the user only needs to set the target pit temperature; timer
setting is not needed. In the multi-step mode, the user can program up to 3
cooking steps. Each cooking step can either end by time or end by food
temperature. When the user is cooking food of small size of which the cooking
time is known, or only to add the smoke flavor to the food, the user can simply
use the timer to end a step. When the user is cooking food of large size of
which the cooking time is unknown, it is better to set a target food temperature
to end the step.
SYL-2615 has a build-in Wi-Fi module which allows its user to monitor the
temperature and control the device from a smart phone or a tablet. Once the
connection is set up, the user can access the data and change parameter
settings even the user is miles away from the device. For details, please check
the supplementary manual for details regarding the Wi-Fi function.

2. Specifications

AC adaptor: 100 V ~ 240 V, 50 / 60 Hz input. 12 VDC, 1 Amp output.
Power consumption: < 0.9 W (without blower).
2019.07
SYL-2615 Wi-Fi BBQ Controller
Version 1.3 (July, 2019)
LCD display: Black on white with backlight.
Output for fan: 12 VDC, 1 Amp *.
Control mode: PID-PWM, PID-Fan Speed, Manual.
Alarm: High/low alarms for pit temperature. High alarm for food temperature.
Sampling rate: 2 samples/second.
Accuracy: 0.2% full scale.
Display range: -99° F ~ 930° F, or -99° C ~ 500° C.
Sensor type: PT1000 RTD, -99° F ~ 660° F (-99° C ~ 350° C).
Wi-Fi module Wireless standards: IEEE 802.11 b/g/n
Security protocols: 64/128 - bit WEP, WEPA, WPA2, TKIP, AES.
Dimensions: 4.4" x 3.3" x 1.3" (113 x 83 x 33 mm).
Note * Up to 3 Amp can be supplied if more powerful power adapter is used.

3. Front Panel and Connections

① LCD display.
② Set key. Press momentarily to enter the cooking step settings. Press and
hold about 2 seconds to enter the parameter settings.
③ Timer/Back key. Press it in main display will show the cook time. Press it
in the parameter setting mode will return back to the upper level menu. When
open lid detection stops the blower, press it will resume the blower normal
function.
④ Down key. Decrease value, scroll down the menu, mute the buzzer.
⑤ Up key. Increase value, scroll up the menu, or mute the buzzer.
New feature for Up key: Press and hold UP key for 3s to pause the fan output
temporarily. Press the UP key again momentarily to resume the previous fan
output. This feature is available for firmware version 1.9 or newer.
⑥ Wi-Fi status indicator. Solid ON: the controller is connected to the internet.
Quick flashing: Wi-Fi module ready for configuration. Slow blinking: Wi-Fi
module is initializing its connection to the router. Off: no Wi-Fi connection.
⑦ OUT indicator. It indicates the current output status. Its flashing rate only
represents the output level and it is not synchronized with the actual output
status.
⑧ Probe 1 input for Pit temperature.
WWW.AUBERINS.COM

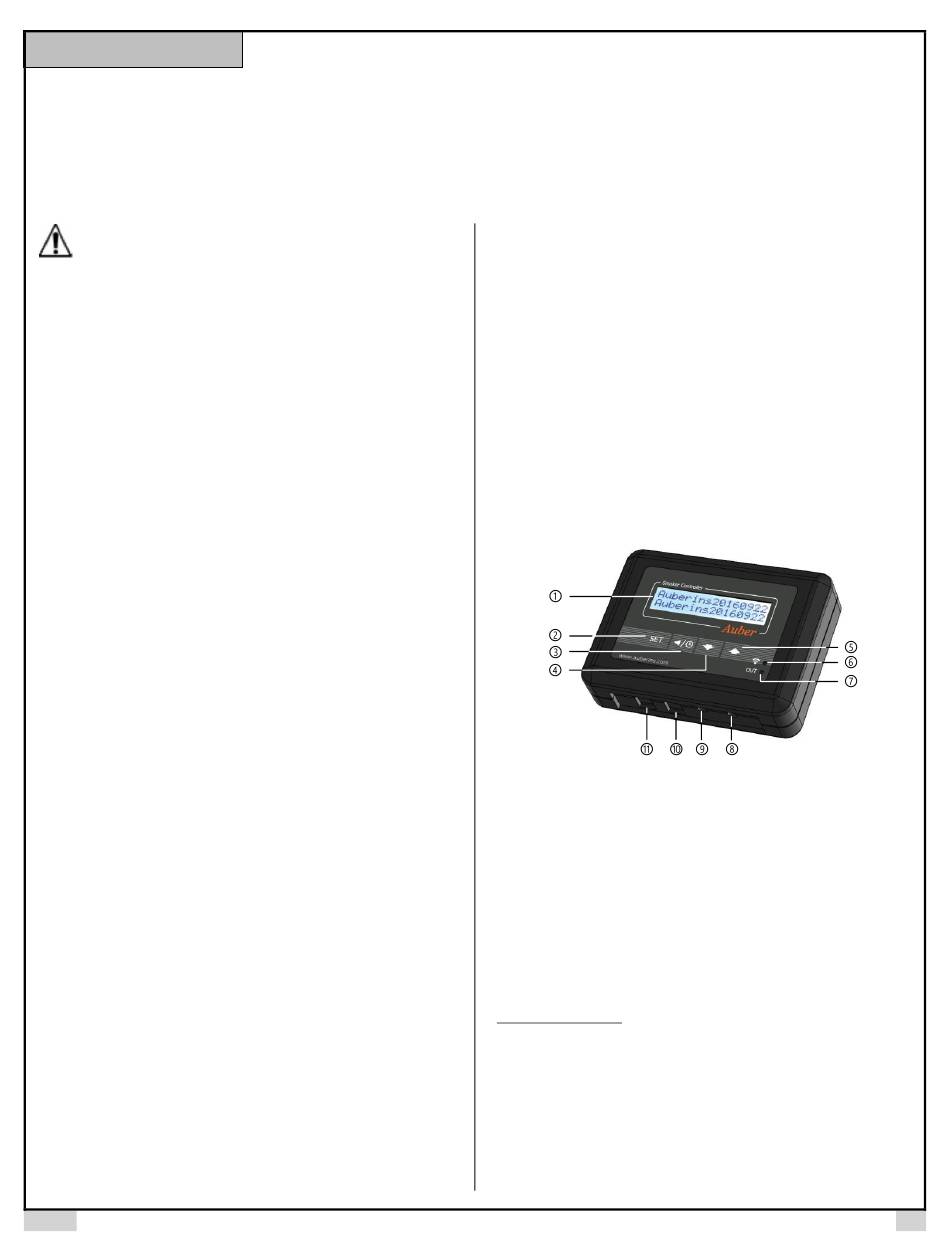

Figure 1. Controller SYL-2615.
P1/7
