Summary of Contents for Friedrich VRPXWPC-8

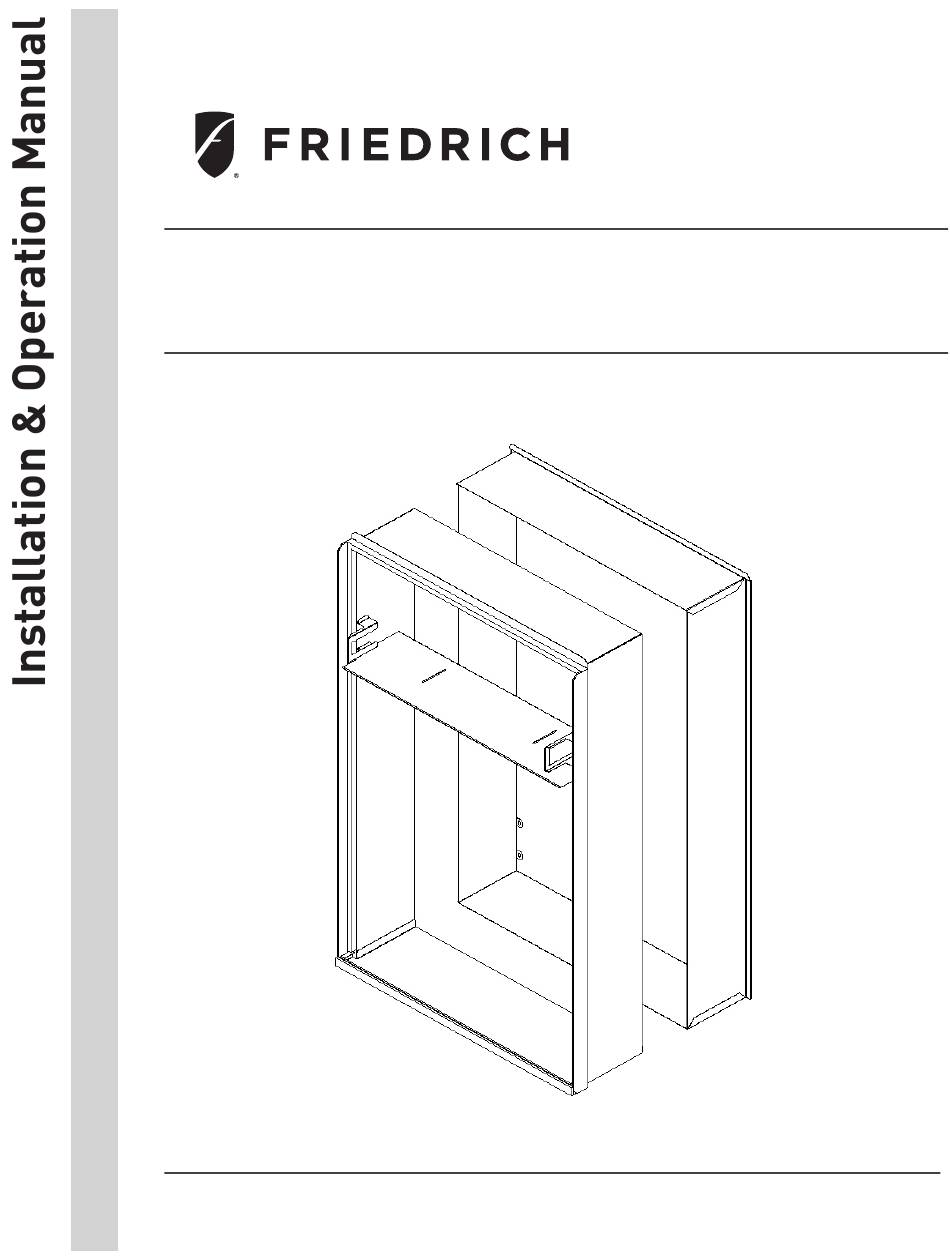

  • Page 1 VRPXWPC-8 VRPXWPC-14 VRPXWPC IOM 92303009_00...
  • Page 2 Exterior Wall Opening Dimensions Exterior Wall Rough Opening Dimensions Unit Width Heigth Compact 33" 52 1/4" (VRPXWPC-*) NOTE: The distance between the rough opening and the finished floor/platform must be 4”.
  • Page 3 Sealant, attachment screws, and flashing Flashing are field supplied. Silicone sealant is recommended. Sealant VRPXWPC-8 adjust for walls up to 4”- 8” thick. VRPXWPC-14 adjust for walls up to 8” - 14” thick Shim All installations are similar. 1”-3” Screws to...
  • Page 4 Wall Plenum Installation Step 1 - Outside Wall Plenum Half Note: The wall plenum is not designed to carry any structural load. A load bearing header must be built above the rough opening. 1) Prepare the rough opening. The rough opening should be lined with metal or wood. The plenum will warp if sealed against concrete or brick.
  • Page 5 Wall Plenum Installation Step 2 - Inside Wall Plenum Half Caulk all 8 Flange Corners and Unused Holes Detail A 1) Apply sealant to all 4 flange corners and unused holes. See Detail A. 2) Place the baffle (Part D) on the approprate baffle mounting tabs located on the inner perimeter of the inside plenum half based on unit size (Compact/Standard).
  • Page 6 Wall Plenum Installation Step 3 - Inside Wall Plenum (cont.) Detail A Note: Do not place any screws, fasteners, or penetrating holes through the top or bottom of the plenum assembly. 1) Drill pilot holes on the interior of the inside plenum half (Part B) as show in Detail B. Pilot holes should be located approxiamtely 4”...
  • Page 7: Louver Installation

    Installation of the louver PRIOR to Wall Plenum Installation Louver Installation Hold the louver up to the Outside Wall Plenum Part A and line up the louver top with the very top edge of the 3/4” flange. Line up the Wall Plenum holes with the threaded holes in the louver, install and tighten the 8 screws. Installation of the louver PRIOR to Wall Plenum Installation Attach louver with 8 screws provided...
  • Page 8 Final Wall Plenum and Architectural Louver Installation Plenum Divider Extension Plate Installed Plenum Divider Extension Plate (Baffle) into Full Plenum Assembly Ensure that the weather strip is undamaged and provides a continuous seal around the inner perimeter of the plenum. Apply silicone grease or other non-petroleum-based lubricants to the weather strip to enhance the sealing capability of the weather strip and ease installation of the air conditioner chassis.
  • Page 9: Unit Installation

    Unit Installation Unit Placement Prior to Installation (Front-Install Configuration) All louver, plenum, rough plumbing, and rough wiring steps must be complete prior to final installation of the air conditioning chassis.
  • Page 10 Friedrich Air Conditioning Co. | 10001 Reunion Place, Suite 500 | San Antonio, TX 78216 | 877.599.5665 | www.friedrich.com VRPXWPC IOM 92303009_00...
