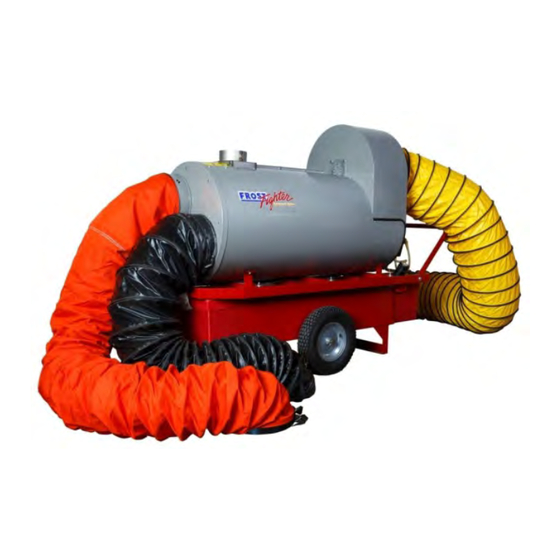

INDIRECT FIRED SPACE HEATERS
Installation - Operation/Maintenance
Instructions and Parts List
READ INSTRUCTIONS PRIOR TO STARTING HEATERS
WWW.FROST-FIGHTER.COM
TOLL FREE 1-888-792-0374
OIL FIRED
MODEL IDH400QR
MODEL IDH400QRC
FROST FIGHTER INC.
100-1500 NOTRE DAME AVE
WINNIPEG, MANITOBA
CANADA R3E 0P9
TEL : (204) 775-8252
FAX: (204) 783-6794
1
REV 1.3
JUNE 2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Frost Fighter IDHQR Series
Summary of Contents for Frost Fighter IDHQR Series
- Page 1 MODEL IDH400QR MODEL IDH400QRC Installation - Operation/Maintenance Instructions and Parts List READ INSTRUCTIONS PRIOR TO STARTING HEATERS REV 1.3 FROST FIGHTER INC. JUNE 2018 100-1500 NOTRE DAME AVE WINNIPEG, MANITOBA CANADA R3E 0P9 TEL : (204) 775-8252 FAX: (204) 783-6794 WWW.FROST-FIGHTER.COM...
- Page 2 6. The heat exchanger shows no signs of an implosion or explosion. No representative of Frost Fighter Inc., nor any of its distributors or dealers, is authorized to assume for Frost Fighter Inc. any other obligations or liability in connection with this product, nor alter the terms of the warranty in any way.
-
Page 3: Specifications
SPECIFICATIONS MODEL IDH400QRC IDH400QR 400,000 MAXIMUM 340,000 BTU/HR BTU/HR INPUT NOZZLE 2.00 USGPH 2.25 USGPH 45’ B (SOLID) 45’B (SOLID) SIZE PUMP 140 P.S.I. 155 P.S.I. PRESSURE MAXIMUM MAXIMUM 35 IMP GALS. FUEL 35 IMP GALS. 42 US GALS. TANK CAP. 42 US GALS. - Page 4 Dimensions of IDHQR series of heaters Heater Only With Packaging MODEL WEIGHT (LBS) WEIGHT (LBS) 83" 27" 38" 52 1/2" 51" 76 1/2" IDF350 83" IDF500 51" 76 1/2" 38" 27" 52 1/2" Heater Only With Packaging MODEL WEIGHT (LBS)
-
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS 1. The recommendations of local authorities having jurisdiction must be followed. For recommended Installation practices refer to C.S.A. Standard B139 (CANADA) or NFPA 54 (US) 2. When firing the unit in an enclosed area 3 square feet must be provided to allow the free entry of the air required for operation. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS TO START HEAT WITH GENISYS CONTROL Ensure unit is on flat, level ground before starting, canopy and fan guards must be closed. Flip switch to “OFF” position Check fuel level ( 2-4 gallons to start) Plug in supply cord to 115 volt outlet. Flip switch to “MANUAL”... - Page 7 IDH MAINTENANCE INSTRUCTIONS !WARNING!: Heaters should be fully serviced annually to ensure proper performance. Maintenance should be performed by trained personnel only. Incorrect maintenance may result in improper operation and serious injury. HIGH LIMIT SWITCH It is recommended that the limit switch should be checked every heating season to ensure the switch limits the temperature to 250 F (IDH400QR) 290°F (IDH400QRC) (This can be done by restricting the air flow through the unit.
-
Page 8: Cleaning Procedure
CLEANING PROCEDURE 1. Remove front cap. (48205 or 48205A) 2. Remove cover panel (jacket to front). (48119) 3. Remove fan thermostat cover on outer jacket (the one nearest the burner). (48112A) Loosen thermostat and remove from the jacket. Remove high limit thermostat cover.(48112). - Page 9 TEMPERATURE FEELER ADJUSTMENT THAT IS ATTACHED TO THE FAN SWITCH ALWAYS MAKE SURE THAT THE TEMPERATURE FEELER IS TOUCHING THE HEAT EXCHANGER!! The temperature feeler provides air flow over the fan switch, which regulates the cycling of the fan. The temperature feeler can be adjusted for different outside temperatures, by rotating the location of the temperature feeler holes.
- Page 10 ELECTRODE SETTINGS FOR IDH400QR & IDH400QRC MODELS SLIDE PLATE SETTINGS FOR IDH400QR & IDH400QRC...
- Page 11 BURNER JUNCTION BOX OF IDH400QR AND IDH400QRC...
- Page 12 THE SETTING OF THE “Z” DIMENSION ON IDH400QR & IDH400QRC...
- Page 13 IDH SERIES TROUBLE SHOOTING GUIDE ALWAYS DOUBLE CHECK FOR SUFFICIENT POWER , GAUGE OF CORD (SEE TOP OF PAGE #5) AND PROPER FUEL SUPPLY. POWER AND FUEL SUPPLY MUST BE SHUT OFF/DISCONNECTED BEFORE REMOVING OR REPLACING ANY COMPONENTS ON THE HEATER. 1.
- Page 14 IDH TROUBLE SHOOTING GUIDE d. Wires between cad cell and primary control should be checked to see that they are pinched or crimped. e. Prime fuel pump by loosening bleeder screw till steady stream of fuel comes out to ensure no air or bubbles in fuel line.. If unit locks out three times in succession, it will go into restricted lock out mode.
- Page 15 Sequence of Operation for Genisys Controller Burner States Standby: The burner is idle, waiting for a call for heat. Valve-On Delay: The igniter and motor are on while the control delays turning on the oil solenoid valve for 45 seconds.. Trial For Ignition: The oil solenoid valve is energized.
- Page 16 IDH400QR & IDH400QRC WIRING DIAGRAM MALE PLUG (115V/1 /60Hz) Ø GREEN WHITE GROUND POWER ON BLACK WHITE FAN MOTOR THERMOSTAT THERMOSTAT RECEPTICLE THERMOSTAT BLACK WHITE BLACK CAPACITOR(S) MANUAL GREEN WHITE GROUND 15AMP GENISYS IGNITION BURNER CONTROLER BREAKER HIGH LIMIT SWITCH BLACK BLACK BLACK...
-
Page 17: Wiring Diagram
WIRING DIAGRAM POWER SUPPLY PLUG IDH400QR / IDH400QRC 115V 1PH V 60HZ -OIL FIRED- (With Power Meter) WHITE AUG. 2018 JUNCTION BOX ON SIDE OF FAN HOUSING POLARITY PICK UP INDICATOR COIL BLACK BLACK WHITE 1 AMP FUSE MOTOR POWER METER CAPACITOR BLUE WHITE... -
Page 18: Display Screen
Frost Fighter IDH-QR (IDH-QRM) Heaters after June 2018 may be equipped with optional power meter providing a real time display of critical information about the electrical power that is being supplied to the heater as well as heater's function and performance. - Page 19 IDH400QR/IDH400QRC CF BURNER ELECTRODE ASSEMBLY (PART #B30268A) NOZZLE LINE / OIL PIPE BUSS BAR HOLDER SOLID NOZZLE NOZZLE ADAPTER 1.75-2.25 GPH - B48150 B20262 ELECTRODE INSULATOR KIT INC. BUSS BARS & ELECTRODES...
- Page 20 IDH400QR & IDH400QRC BURNER COMPONENTS Primary control B48183A 50144 Genisys Ignitor B30798 Solenoid Valve B30255A Blast tube 48152 & 48152B Copper line 48139 Suntec A pump B48253 Air Band B48254 Air Shutter 48140 Burner motor...
- Page 21 LIMITS, FAN SWITCHES AND TEMPERATURE FEELERS ADJUSTABLE FAN SWITCH 90-130’F ( 48111B) ALL MODELS MAXIMUM TEMP. HIGH LIMITS IDH400QRC (400,000 BTU/HR) IDH400QR (340,000 BTU/HR) (CANADA ONLY) (CANADA & US) IDH400QR HIGH LIMIT 48110D 48110C L250 - 40F (48110C) 250°F 1331) 610080 IDH400QRC HIGH LIMIT L300 - 40F (48110C) 300°F (A1442) 610026...
- Page 22 “A” PUMP (#48139) IDH400QR & IDH400QRC When replacing a fuel pump, ensure 1/16” by pass plug is installed in return port. Use a 5/32” allen wrench.
- Page 23 HEAT EXCHANGER FOR OIL UNITS P/N 50200-ALL IDH SERIES COMBUSTION CHAMBER ASSEMBLY C/W INNER SHELL FLUE COLLAR ASSEMBLY P/N 50113-ALL UNITS P/N 50207-IDH MODELS OUTER SHELL P/N 50206-ALL IDH MODELS RETAINER BOLT CAP RING W/WASHER 2 PER ASSEMBLY 24 PER UNIT P/N 50115 ALL IDH MODELS P/N 48116 ALL UNITS *COMBUSTION CHAMBER ASSEMBLY &...
- Page 25 IDH400QR & IDH400QRC BURNER SETTINGS...
- Page 26 IDH400QR AND IDH400QRC BACK VIEW 52000-3 52009 OUTER ACCESS COVER FAN ENCLOSURE 52011 INNER ACCESS COVER 35002 FAN ADAPTOR PLATE 35000-1 FAN INLET 52010-OUTER JACKET 52011-INNER JACKET 35000 115 v HIGH STATIC FAN 400MM NOT SHOWN: 52000-8 BURNER COVER 52000-10 COVER W/ HR IDH400QR BURNER- SEE PAGE 22 FOR DETAILS...
-
Page 27: Under Cover
FRONT OF IDH500QR & IDH350QR HEATERS 52014 ELECTRICAL BOX UNDER COVER 52000-6 COVER 48111B ADJUSTABLE FAN SWITCH UNDER COVER 50uF CAPACITOR 48110C HIGH LIMIT SWITCH - IDH400QR 48110D HIGH LIMIT SWITCH - IDH400QRC...
