Manual

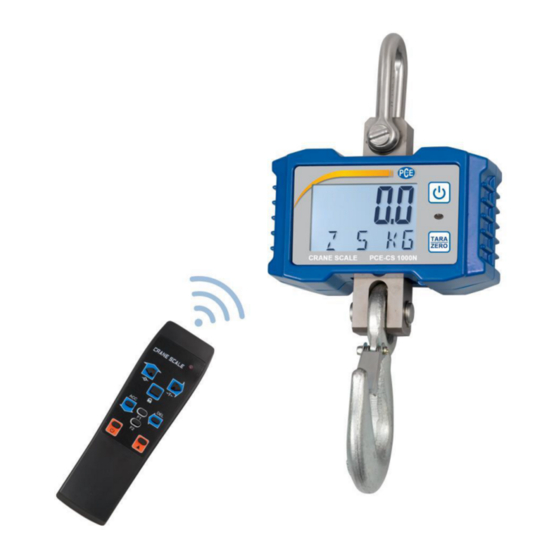

Force Gauge
PCE-CS 1000 N
Version 1.0
26.08.2014
PCE Americas Inc.
711 Commerce Way
Suite 8
Jupiter
FL-33458
USA
From outside US: +1
Tel: (561) 320-9162
Fax: (561) 320-9176
info@pce-americas.com
www.pce-instruments.com/english
www.pce-instruments.com
PCE Instruments UK Ltd.
Units 12/13
Southpoint Business Park
Ensign way
Hampshire / Southampton
United Kingdom, SO31 4RF
From outside UK: +44
Tel: (0) 2380 98703 0
Fax: (0) 2380 98703 9
info@pce-instruments.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCE-CS 1000 N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PCE Instruments PCE-CS 1000 N

Summary of Contents for PCE Instruments PCE-CS 1000 N

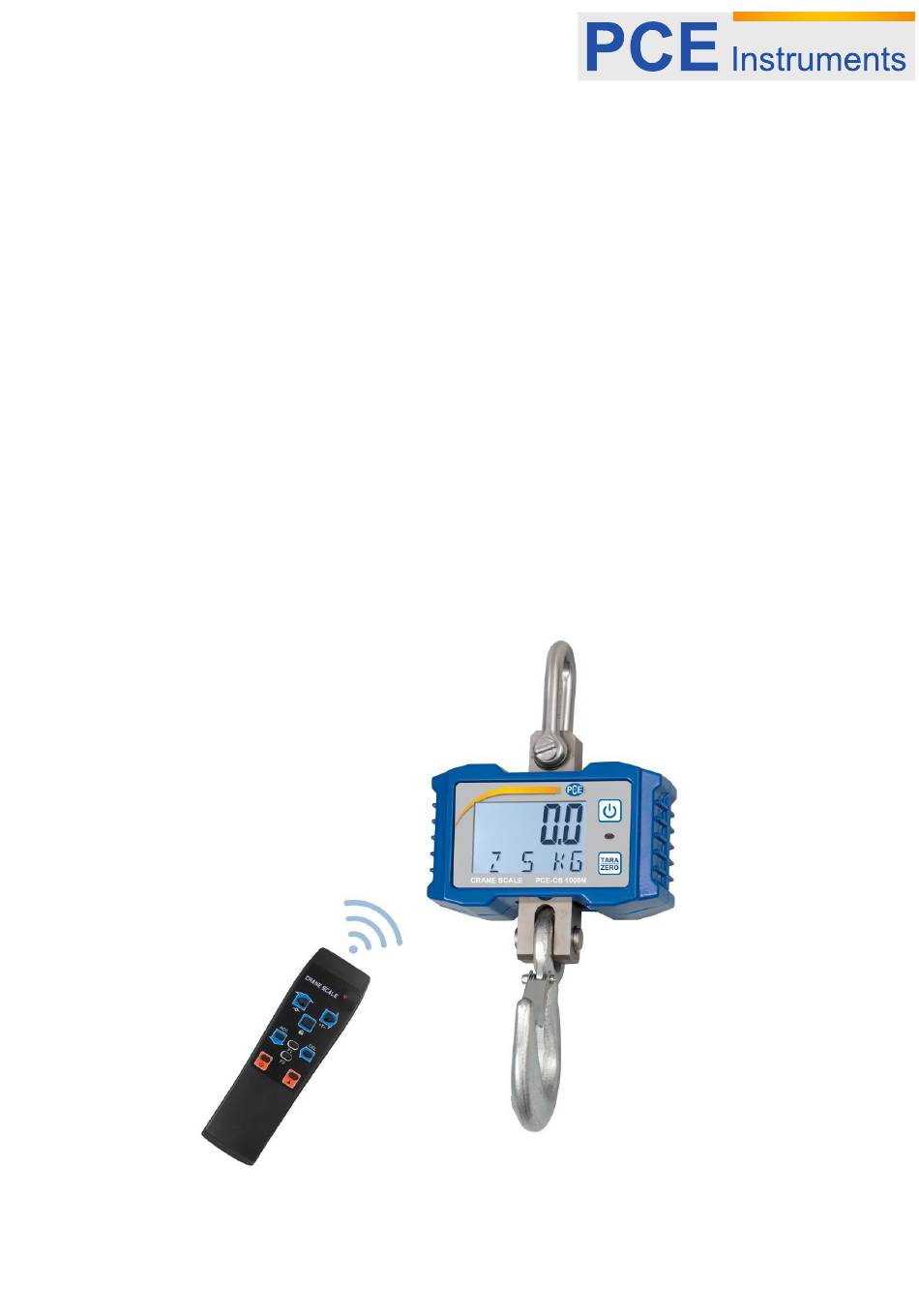

  • Page 1 PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Units 12/13 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0...

  • Page 2: Table Of Contents

    OPERATING INSTRUCTIONS Table of contents Introduction ....................... 3 Safety precautions..................... 3 Specifications ......................6 Delivery content and assembly ......................7 Equipment description ....................7 Measuring equipment .......................... 7 Remote control ............................ 8 Operating Instructions ....................9 Switching on / off ..........................9 Zero ..............................

  • Page 3: Introduction

    OPERATING INSTRUCTIONS Introduction The crane scale carries out internal weight checks. The crane scales power is supplied via the 3 x AA batteries, which have an operating time of up to 65 hours. The crane scale has a maximum load range of 1.000kg.
  • Page 4 Directly beneath the load is of course an obvious hazardous area, but the danger of, for example a cable snapping, should also be taken into consideration, and a sufficient amount of safety distance should be observed. If you have any questions, please contact PCE Instruments UK Ltd...
  • Page 5 These do not replace the valid standards and regulations, but are there to ensure a safe usage of the measuring equipment. You should familiarise yourself with the valid national safety and regulations. If you have any questions, please contact PCE Instruments UK Ltd...

  • Page 6: Specifications

    OPERATING INSTRUCTIONS Specifications Technical Data Measuring range 1.000 kg Resolution 200 g Minimum load 10 kg Measurement error ± 1% of the measuring range Tare range 100 % F.s. ≥ 1 second Response time Safety load 150 % (On no account may this be exceeded) Display LCD with background lighting Digit height...

  • Page 7: Delivery Content And Assembly

    OPERATING INSTRUCTIONS Delivery content and assembly 1 x PCE-CS 1000N / 5 x 1,5 V AA-Batteries / 1 x remote control / 1 x operating instructions Equipment description Measuring equipment 4-1 “Power” button 4-2 Infrared sensor 4-3 Display 4-4 “Tare/Zero” button ...

  • Page 8: Remote Control

    OPERATING INSTRUCTIONS Remote control 4-1 Upwards / Zero 4-2 Hold button / Enter 4-3 Downwards 4-4 Change unit 4-5 Turns the equipment off 4-6 Right /Tare 4-7 Comma placements 4-8 Left 4-9 Setup  Upwards / Zero Move one value upwards ...

  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS Operating Instructions 5.1 Switching on / off  Press the on / off button until an acoustic signal is emitted. Then “8.8.8.8.8” appears on the display. The maximum weight is shown “1000.0”. (= 1000 kilograms or 1 ton). The next information shown on the display is the battery value “Bat (Percentage value)”.

  • Page 10: Equipments Settings

    OPERATING INSTRUCTIONS Equipments settings The remote control is required to get to the equipments setup. Press the “ “and then press straight after. “Setup” then appears on the display. You are now in the equipments setup. To access the following functions, you must press “oFF”...

  • Page 11: Custom Settings

    OPERATING INSTRUCTIONS Custom settings Important: The following setting options should only be carried out by a suitably trained operator. Incorrect settings can make the scale unusable. The remote control is required to get to the custom settings Press the “▲“button twice. “P0000“ appears on the display. The codes for the individual sections are to be entered here with help of the blue arrow button on the remote control.

  • Page 12: Setting Measuring Interval

    OPERATING INSTRUCTIONS 8.1.7 Setting measuring interval  seven times. “Stb (strength)“ is displayed. To set the stability strength, press  The strength can be changed with the remote control. Choose between 0 (switched off), 1 (weakest), 2 (weak), 3 (normal), 4 (strong), 5 (strongest). ...

  • Page 13: Calibration

    OPERATING INSTRUCTIONS  Calibration If the scale is giving incorrect readings, it is possible to re-adjust them. The scale will permit the resetting or adjustment of the gravitational force. If the correct factor is entered, the scale will give an accurate weight reading.

  • Page 14: Linear Calibration

    OPERATING INSTRUCTIONS 8.2.3 Linear calibration Three different weights with large weight size differences should be used for the calibration. The scale must hang freely whilst measuring.  again. “LoAd0“is displayed. To change the linear calibration, press  Press to start the measurement. ...

  • Page 15: Disposal

    We will either re-use the equipment or it will be disposed of by a recycling company according to legal requirements. If you have any questions, please contact PCE Instruments UK Ltd To comply with ElektroG (Rücknahme und Entsorgung von Elektro- und Elektronikaltgeräten) our equipment can be returned.
