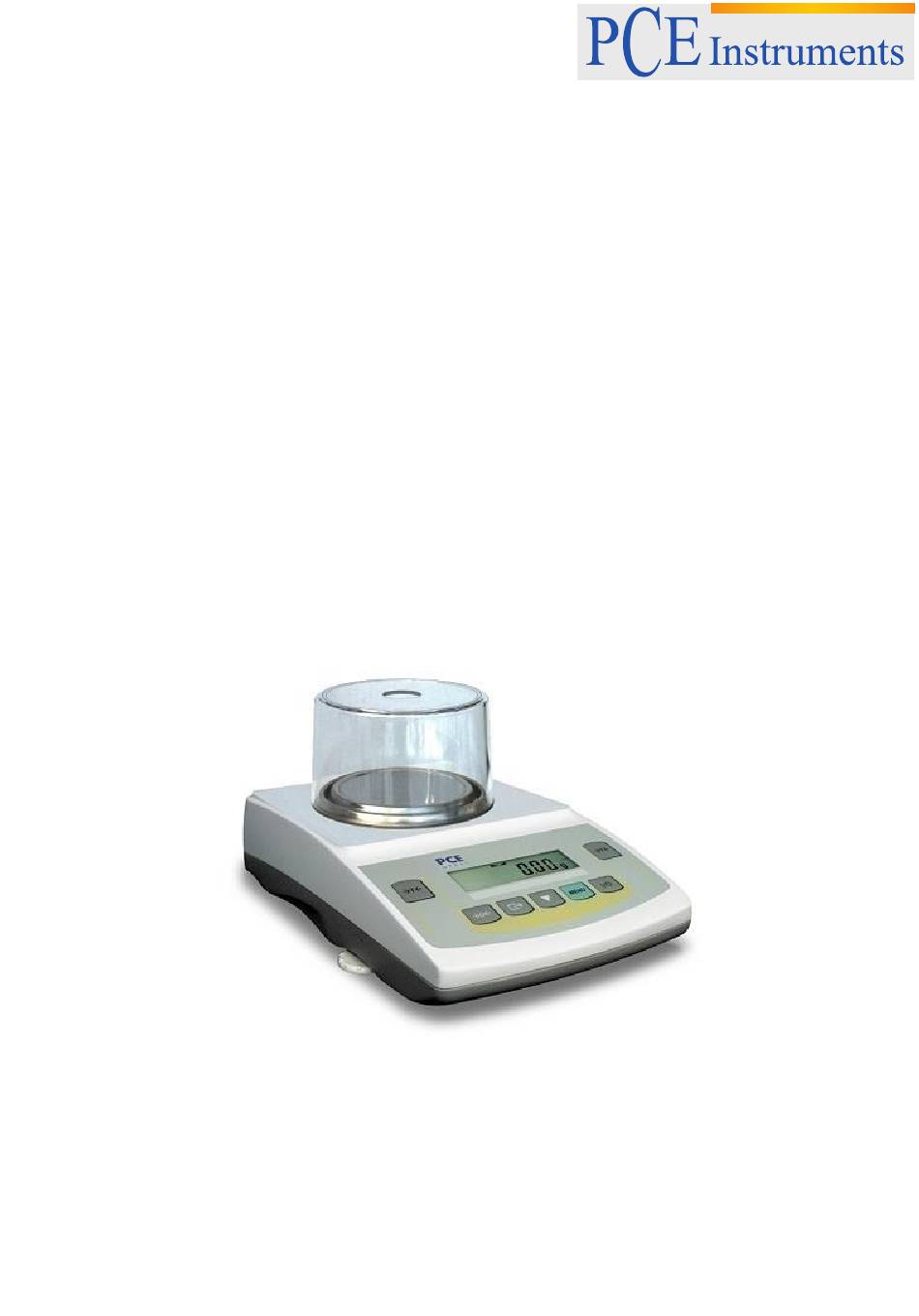

Manual
Laboratory Balances
PCE-LSZ
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PCE Instruments PCE-LSZ Series
Summary of Contents for PCE Instruments PCE-LSZ Series
- Page 1 PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Units 12/13 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0...
-
Page 2: Table Of Contents
Contents: 1. General description ....................3 2. Completeness ......................3 3. Balance description ....................4 4. Keys and indicators ....................6 5. Technical data......................7 6. Security rules ......................8 7. Environment protection ..................8 8. Working environment ..................... 9 9. -
Page 3: General Description
1. General description This type of scale PCE-LSZ...C is mainly used in paper production, tissue production, paper laboratories, textile production companies as well as by material importing companies ... and in laboratory practice. This scale it's perfect for sales departments comparing the paper or fabric weight to the competition when visiting customers. -
Page 4: Balance Description
3. Balance description Front view (PCE-LSZ 100C - PCE-LSZ 600C) 1 – pan 2 – pan support 3 – pan ring 4 – LCD display 5 – keys 6 – rotating legs 7 – water level 8 – antiblast shield Note: PCE-LSZ 600C does not have the pan ring... - Page 5 Rear view: Feeder Computer Zasilacz Drukarka or printer lub komputer ~230V Feeder Zasilacz Przełącznik RS232C Adjustation adjustacji switch RxD (odbiór) RxD ( receiver ) TxD (nadawanie) TxD (send) masa Mass obudowa Housing...
-
Page 6: Keys And Indicators
4. Keys and indicators Basic functions: →T← tare (subtract package weight from weighed mass) →0← zeroing (balances for direct sale use only), data output (print / transmission), internal calibration, Menu Menu, switch-on/switch-off (standby), result stabilisation, indicator bar indicator load indicator 0 ÷ 100%, indicator OFF stand-by mode, Max, Min, d, e, I... -
Page 7: Technical Data
5. Technical data PCE-LSZ100C PCE-LSZ 200C PCE-LSZ 300C PCE-LSZ 500C Type 100g 200g 300g 500g Capacity (Max) Min load (Min) 0,02g 0,02g 0,02g 0,02g 0,001g 0,001g 0,001g 0,001g Reading unit (d) 0,01g 0,01g 0,01g 0,01g Verification unit (e) Tare range -100g -200g -300g... -
Page 8: Security Rules
6. Security rules To avoid electrical shock or damage of the balance or connected peripheral devices, it is necessary to follow the security rules below. • For power supply use only a socket with a ground contact. • All repairs and necessary regulations can be made by authorised personnel only. -
Page 9: Working Environment
8. Working environment +33°C +18°C When choosing a location to set up the balance, remember the following rules to ensure proper working conditions and user-friendly operating: - setup the balance on an even, flat surface leaving necessary room for easy access, - maintain proper working temperature, - avoid strong air drafts, vibrations, dust, big temperature changes and humidity over 90%,... -
Page 10: Preparation - The Balance
9. Preparation – the balance 1. Take the balance and all supplied accessories (a feeder, pan elements) out of the box. 2. Place the balance on a stable ground not affected by mechanical vibrations and airflows. 3. Level the balance with rotating rear legs 6 so that the air bubble in water level 7 at the back of the balance is in the middle. -
Page 11: General Rules
6. Plug a feeder to the power socket at the back of the balance. Moisture in the air may condense on the surface of the balance when transferred to the warmer environment. In this case leave the balance for at least 4 hours unplugged from the mains for conditioning to avoid wrong operating or damage of the balance. -
Page 12: Testing And Calibration
11. Testing and calibration To ensure reliable results it is advised to check balance accuracy with an object of precisely known weight before and after each measuring session. In case permissible error is exceeded calibrate the balance with an external weight standard or contact an authorised service. -
Page 13: Connecting The Balance To A Computer Or A Printer
13. Connecting the balance to a computer or a printer The balance may send data to a computer or a printer through RS232C port. When cooperating with the balance, a computer should equipped with program, which enables processing data from the balance. -
Page 14: Special Functions Description
It is possible to use transmission protocol other then LonG on customer’s demand, e.g. Farb protocol used for cooperation with automatic paint mixer: continuous transmission (Send option), transmission speed 2400bps, additional sign in first “+” byte. Connection cable WK-1 (balance – computer / 9-pin): Balance Computer Connection cable WD-1 (balance - PCE-BP1 printer):... -
Page 15: Legend
Legend - press a key - balance indication 123.4 g - forced change - automatic change 16. Normal weighing When the pan is empty and indication → ← is different than zero press 0.0 g key. In balances for direct trade Note: settlements (option) to zero a balance →... -
Page 16: Paperweight Calculation (Paper)
18. Paperweight calculation (PAPEr) The paper scale is a high precision / resolution device for the determination of the basis weight (in relation to a square meter of materials). This is the most accurate way to determine basis paper / tissue weight. The scale displays the basis weight of paper, tissue, fabrics ... -
Page 17: Maintenance And Repairs Of Small Defects
20. Maintenance and repairs of small defects 1. The balance should be kept clean. 2. Take care that no dirt gets between the casing and the pan. If found any, remove the pan (lift it up), remove dirt and then replace the pan. 3. -
Page 18: Declaration Of Conformity
Declaration of Conformity Konformitätserklärung Declaration of conformity for apparatus with CE mark Konformitätserklärung für Geräte mit CE-Zeichen Déclaration de conformité pour appareils portant la marque CE Declaración de conformidad para aparatos con disitintivo CE Dichiarazione di coformitá per apparecchi contrassegnati con la marcatura CE PCE-LSZ…C 1.
