PCE Instruments PCE-EP P Series User Manual

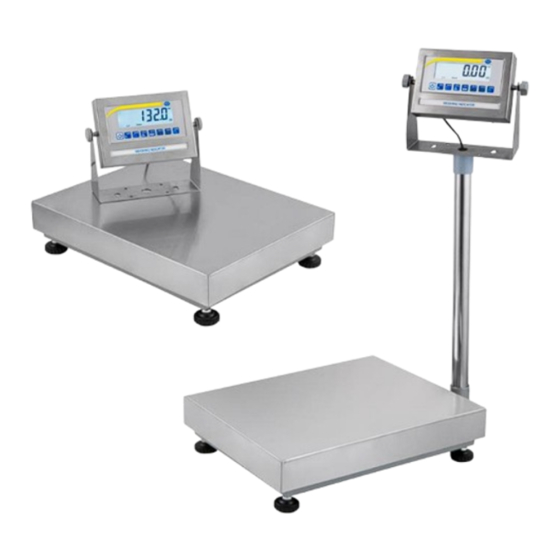

Platform scales
Hide thumbs Also See for PCE-EP P Series:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Platform Scales PCE-EP P Series
User manuals in various languages (français,
italiano, español, português, nederlands, türk, polski,
русский, 中文) can be found by using our
product search on: www.pce-instruments.com
Last change: 3 August 2020
v1.0
© PCE Instruments

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCE-EP P Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PCE Instruments PCE-EP P Series

Summary of Contents for PCE Instruments PCE-EP P Series

  • Page 1 User Manual Platform Scales PCE-EP P Series User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 3 August 2020 v1.0 © PCE Instruments...

  • Page 2: Table Of Contents

    Commissioning ................... 10 Menu ..................... 14 Connection options ................32 Connecting the balance to the PCE-BP1 printer ......41 10 Connecting the balance to the USB data logger PCE-USM .... 42 11 Contact ....................44 12 Disposal ....................44 © PCE Instruments...

  • Page 3: Safety Notes

    We expressly point to our general guarantee terms which can be found in our general terms of business. If you have any questions please contact PCE Instruments. The contact details can be found at the end of this manual. © PCE Instruments...

  • Page 4: Technical Specifications

    9 V / 1.2 A mains adaptor plug 5.5 x 2.5 G (current consumption approx. 70 mA) Power supply with optional switching contacts/analogue output, rechargeable battery operation is not possible → mains adaptor 12 V Protection class IP54 © PCE Instruments...

  • Page 5: Technical Drawings

    A dual range balance is a balance that has two weighing ranges with two different resolutions. The advantage of such dual-range platform scales is the higher resolution in the lower weighing range without having to do without the high weighing range. Technical drawings PCE-EP P1 series (platform size 400x500 mm) © PCE Instruments...

  • Page 6: Pce-Ep P2 Series (Platform Size 500X600 Mm)

    PCE-EP P2 series (platform size 500x600 mm) © PCE Instruments...

  • Page 7: Display

    Display © PCE Instruments...

  • Page 8: Structure Of The Platform Scales

    If you wish to set up the scale with the support tube, insert the cable (9) through the tube (2). Then use the screws (5) supplied to fasten the support tube (2) in the support tube mount (10). © PCE Instruments...
  • Page 9 U-shape display holder (4). The inclination of the display can be varied with the adjusting screws. The cable (9) must then be plugged into the corresponding socket (11) on the rear of the display and screwed into place. © PCE Instruments...
  • Page 10 You will find this function in the internal menu under "C37. To find out what the gravitational range is at your place of installation, contact your local weights and measures office. © PCE Instruments...

  • Page 11: Key Description

    With the "GW / NW" key, you can view the "GROSS / NET" weight. This weight is the weight considering the TARE mass. In menu mode, the key is used to move to the right ( → ). © PCE Instruments...

  • Page 12: Commissioning

    If the balance does not respond, check the power supply to the display. If the stability symbol does not appear, check the base and level the balance. Turn it off: Press and hold the key until the scale turns off. © PCE Instruments...
  • Page 13 If a tare weight is entered, the display shows “Tare”. ATTENTION: The weighing range is not increased by taring, so if you have a 30 kg scale and tare 10 kg, you only have a weighing range of 20 kg left. © PCE Instruments...
  • Page 14 "ZERO" key to change →CLr n← (Clear No) to →CLr Y← (Clear Yes) and using the "PRINT" key. Exit the function via →CLr n← (Delete No); then you can confirm with the continue with the totalizing function. © PCE Instruments...
  • Page 15 If a new piece weight is to be determined, press the "COUNT" key and the "PRINT" key simultaneously. This will take you back to the position where you can select the reference quantity 5 / 10 / 20 / 50 / 100 / 200 or 500. © PCE Instruments...

  • Page 16: Menu

    "PRINT" key simultaneously. The display will then show →C 01←. "ZERO" and "TARE" keys change the number. "COUNT" and "GROSS" keys change the position. "PRINT" key confirms the entry or enters the function. "TOTAL" key exits the function. © PCE Instruments...
  • Page 17 Enter the Weighing range corresponds to the MAX load of the scales, e. g. function "C 04" setting 150.00 with the [MAX] "PRINT" key. (The entry is in kg, see C 01) Set the number with the "ZERO" © PCE Instruments...
  • Page 18 “CAL 9” and the countdown starts) When the display shows "0" again, confirm with the "PRINT" key. The display then shows the next menu item "C 06" ------------ Return to normal weighing mode by pressing the "TOTAL" key. © PCE Instruments...
  • Page 19 Then the display will show "CAL End" and this must be confirmed with the "PRINT" key. ---------------------- "C6 2" Multipoint adjustment The display briefly shows "SPAn" and then "LnE 2". Here you can enter the number of © PCE Instruments...
  • Page 20 ("bdno 01" until the number of pre-set adjustment points is reached.) Then "CAL End" appears in the display and this must be confirmed with the "PRINT" key. ---------------------- Return to normal weighing mode by pressing the "TOTAL" key. © PCE Instruments...
  • Page 21 Select the 10 = switch-off after 10 min function 30 = Switch-off after 30 min (0/10/30/60) 60 = Switch-off after 60 min with "ZERO" ↑ and "TARE" ↓. Confirm with the "PRINT" key. ---------------------- Return to normal weighing © PCE Instruments...
  • Page 22 C 12 3 = Average value from the measurements of the last 3 seconds Select the C 12 5 = Average value from the function (3/5) with "ZERO" ↑ measurements of the last 5 seconds. and "TARE" ↓. © PCE Instruments...
  • Page 23 AD converter to "C 15" with the display perform the conversion to a weight. "PRINT" key. This value can be used to check in what range Nothing can be the cells of the scales work. changed in this © PCE Instruments...
  • Page 24 C 18 1 = continuous data transfer in large display format Select the function (0/1/2/3/4) with "ZERO" ↑ and C 18 2 = data transfer by keystroke in printer "TARE" ↓. format Confirm with the "PRINT" key. ---------------------- © PCE Instruments...
  • Page 25 04 = up to 4 % "PRINT" key. C 20 10 = up to 10 % ---------------------- C 20 20 = up to 20 % Return to C 20 100 = up to 100 % normal weighing © PCE Instruments...
  • Page 26 2.0 = compensation up to ±2.0d ---------------------- C 22 3.0 = compensation up to ±3.0d Return to C 22 4.0 = compensation up to ±4.0d normal weighing C 22 5.0 = compensation up to ±5.0d mode by pressing the © PCE Instruments...
  • Page 27 = 9 resolution steps. A value of up to 99 can be set here. Select the function with "ZERO" ↑ and "TARE" ↓. Confirm with the "PRINT" key. ---------------------- Return to normal weighing mode by pressing the "TOTAL" key. © PCE Instruments...
  • Page 28 2 = 2d (2 resolution steps) Select the 5 = 5d (5 resolution steps) function with 10 = 10d (10 steps) "ZERO" ↑ and "TARE" ↓. Confirm with the "PRINT" key. ---------------------- Return to normal weighing mode by © PCE Instruments...
  • Page 29 "C 31" signal setting with the 0 = 0 - 20 mA "PRINT" key. 1 = 4 - 20 mA Select the function with "ZERO" ↑ and "TARE" ↓. Confirm with the "PRINT" key. ---------------------- © PCE Instruments...
  • Page 30 "TOTAL" key. .. = 0 … 99 C34 ** (OPTION) C 34 Enter the Setting the function "C 34" communication with the address "PRINT" key. (no function) Select the function with "ZERO" ↑ and "TARE" ↓. © PCE Instruments...
  • Page 31 "PRINT" key. ---------------------- Return to normal weighing mode by pressing the "TOTAL" key. C 37 09.7936 m/s² Enter the Setting gravity function "C 37" of the place of with the installation "PRINT" key. Select the function with © PCE Instruments...
  • Page 32 If there is something on the scale that weighs 1 Confirm with the kg, the scale shows 0.495; if there are 5 kg on "PRINT" key. the scale, the scale shows 2.475, etc. ---------------------- Return to normal weighing mode by © PCE Instruments...
  • Page 33 "ZERO" ↑ and "TARE" ↓. Confirm with the "PRINT" key. ---------------------- When the quantity is shown on the display: Return to normal weighing mode by pressing the "TOTAL" key. 1 = Print weight 2 = Print quantity © PCE Instruments...

  • Page 34: Connection Options

    The power supply is then provided by a 12 V / 1.2 A / external ( - ) / internal ( + ) mains adaptor. Cell connection The display can be connected with up to 6 cells (4 or 6-wired) of a maximum of 350Ω. © PCE Instruments...
  • Page 35 -Exc = black cable RS 232 interface / D-SUB 9 female You can connect the balance to various external devices via the RS-232 interface. ATTENTION: Observe the pin assignment of the connection cable and the interface parameters. © PCE Instruments...
  • Page 36 Tares the weight ZERO Zeroes the weight Print Queries the weight Switches between the gross / net Change gross/net weight weight display Repeat command Repeats the last command kg / lb Toggles between the weight units kg / lb © PCE Instruments...
  • Page 37 Depending on the setting of the transmission format, the data look as follows: © PCE Instruments...
  • Page 38 © PCE Instruments...
  • Page 39 © PCE Instruments...
  • Page 40 Connecting the balance to a PC © PCE Instruments...
  • Page 41 The display is equipped with a 7-pin male connector via which both the RS-232 interface and the analogue output are led out. Pin number Function Assignment Figure PIN 1 PIN 2 RS-232 interface PIN 3 PIN 4 4-20 mA analogue output PIN 5 PIN 6 not assigned PIN 7 © PCE Instruments...
  • Page 42 Description Switching output / limit value function Potential-free contacts possible with JZC-49FA 005-1H1(555) relay pulse signal and continuous signal © PCE Instruments...

  • Page 43: Connecting The Balance To The Pce-Bp1 Printer

    The display will then show →C 01←. "ZERO" and "TARE" keys are used to change the number. "COUNT" and "GROSS" keys change the position. "PRINT" key confirms the entry or enters the function. "TOTAL" key exits the function. © PCE Instruments...

  • Page 44: Connecting The Balance To The Usb Data Logger Pce-Usm

    For data transfer by keystroke, option 2 is to be set here. Set option 3 for data transfer per query (query command capital "P") Set option 3 (baud 9600) © PCE Instruments...
  • Page 45 2. Depending on the selected data transfer, entries must also be made here. In example 1, data is shown if data transfer by keystroke is selected in the balance. It is important that the query command in "SI" is set and INTERVAL = 0 © PCE Instruments...

  • Page 46: Contact

    For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments...
  • Page 47 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 4 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...

This manual is also suitable for:

Pce-ep 30pPce-ep 150pPce-ep 150p2-ica
