Manual

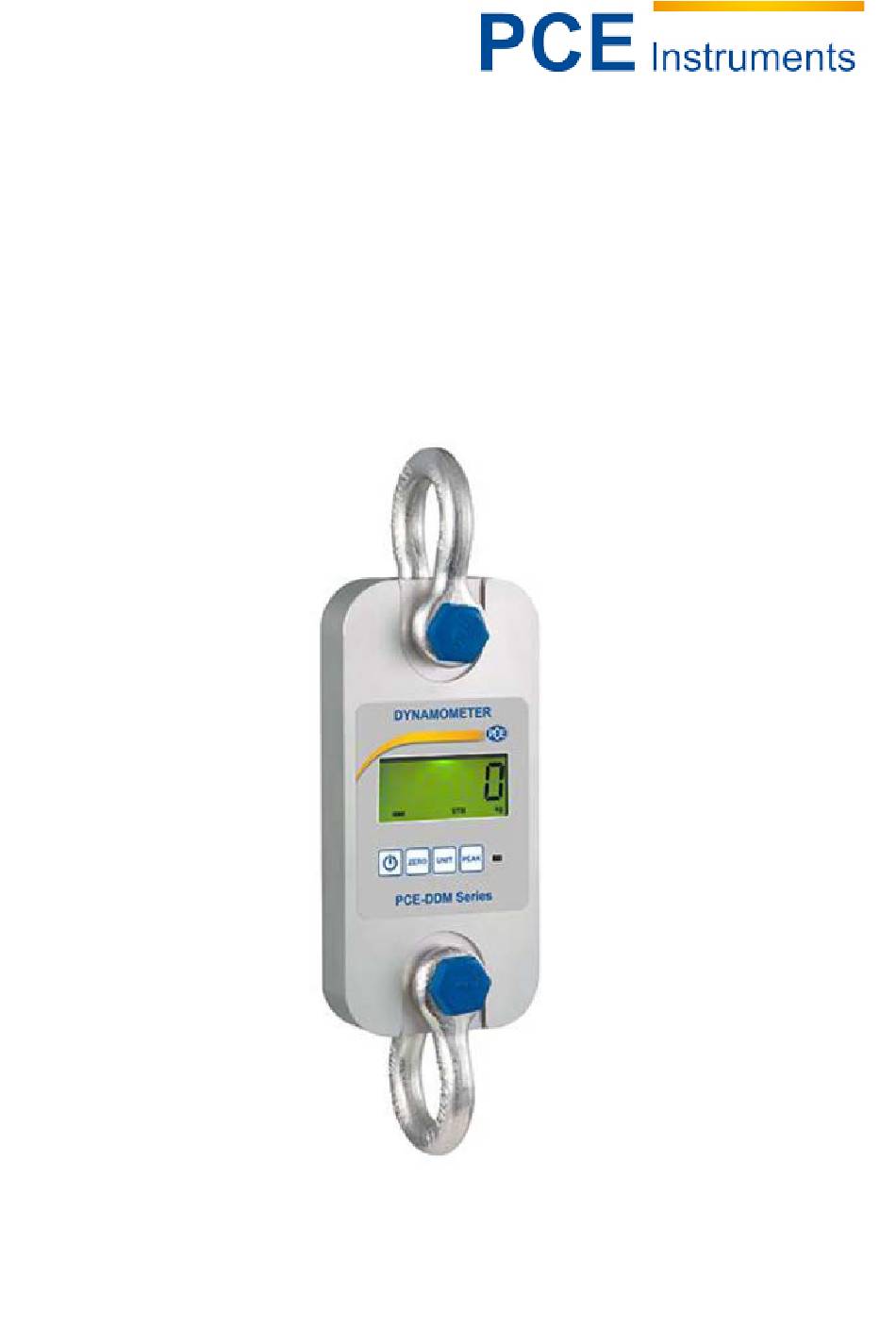

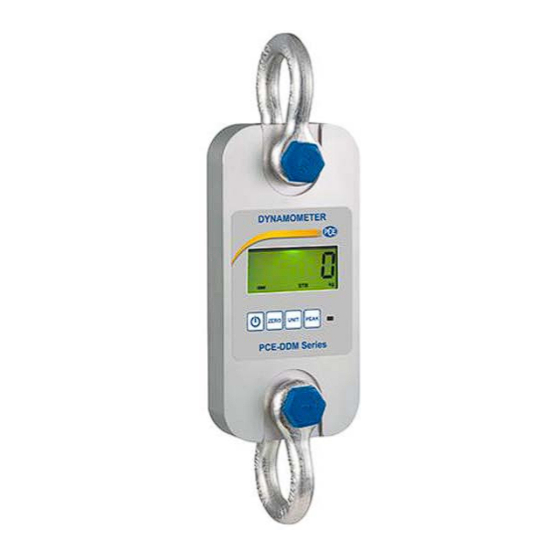

Crane Scales PCE-DDM series
Version 1.0
Date of creation: 15/12/2014
Date of last change: 07.01.2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCE-DDM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PCE Instruments PCE-DDM Series

  • Page 1 From Outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com info@pce-instruments.com www.pce-instruments.com/english www.pce-instruments.com Manual Crane Scales PCE-DDM series Version 1.0 Date of creation: 15/12/2014 Date of last change: 07.01.2015...
  • Page 2: Table Of Contents

    Parameter selection and calibration ..................10 5.4.1 Key functions ..........................10 5.4.2 Parameter settings ........................10 5.4.3 Calibration ............................ 12 Display explanations ......................... 12 Troubleshooting ........................13 Disposal ......................... 14 Contact ........................14 PCE Instruments UK ........................ 14 PCE Americas .......................... 14...
  • Page 3: Introduction

    Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. There is no warranty of damage or injuries caused by non-observance of the manual.
  • Page 4: Maintenance And Inspection

    Manual This manual is published by PCE Instruments without any guarantee. We expressly refer to our general guarantee terms, they can be found in our general terms of business. If you have any questions please contact PCE Instruments. Maintenance and inspection...
  • Page 5: Specifications

    Manual Specifications accuracy ± 0,1 % of measurement range taring range max. 20 % of measurement range display 25 mm (1 ”), 5 digits, LCD with 22 mm digit height unit of measurement kg / t / lbs / N / kN wireless range approx.
  • Page 6: System Description

    Manual System description Model B (mm) C (mm) D (mm) Ø (mm) H (mm) Material (mm) PCE-DDM 3 aluminium PCE-DDM 5 aluminium PCE-DDM 10 steel PCE-DDM 20 steel PCE-DDM 50 steel...
  • Page 7: Instructions

    Manual Instructions Display and keys 5.1.1 LCD display a) 25 mm (1“) 5-digit LCD display with all functions and units : Wireless connection signal. Symbol means that the signal is stable. It disappears when no signal is received and it flashes when the signal is weak. battery indication.
  • Page 8: Wireless Hand-Held Display Unit

    Manual Wireless hand-held display unit 1) “Zero” a) When the device is switched on without any load attached to the hook and the display still shows numbers, press this key to set the device to 0. b) In the settings this key is used as the up key. 2) “Tare”...
  • Page 9: Function Guide

    Manual Function guide 5.3.1 ON / OFF To switch on: Press “ON / OFF” and hold it for 3 seconds. The display will show the following: OPERATION DISPLAY Description ON / OFF displayed twice, self-diagnostic programme displayed twice, shows capacity current battery voltage is 3.98 V current software version stabilisation...
  • Page 10: Delete Memory

    Manual 5.3.7 Delete memory OPERATION DISPLAY Description Press “Mode” 7 times and question: delete or not? confirm with “Enter”. Press “Mode” to stop. Press “Enter” to delete. 5.3.8 Battery voltage OPERATION DISPLAY Description Press “Mode” 3 times. Display display power battery voltage shows “dC”.
  • Page 11 Manual it will display the calibrated decimal place. Press “Zero” to select. Select the decimal place. 0/1/2/3 is displayed one after the other. 0 = xxxxx, 1 = xxxx,x, 2 = xxx,xx, 3 = xx,xxx The capacity is 2000 kg, so choose Pt = 0 Press “Enter”...
  • Page 12: Calibration

    Manual Press “Zero” to select. Select set point 2. “2 OFF” means that set point 2 does not inherit a function. “1 LO” means that set point 2 is 1 lower. “1 HI” means that set point 2 is 1 higher. Press “TARE”...
  • Page 13: Troubleshooting

    Manual times error in repeated saving cannot save the same weight twice current number of memory locations first 4 digits of the saved value actual weight = first 4 digits + last 4 digits last 4 digits of the saved value actual weight = first 4 digits + last 4 digits question whether you are sure that you want to...
  • Page 14: Disposal

    In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use them or give them to a recycling company which disposes of the devices in line with law. If you have any questions, please contact PCE Instruments. Contact If you have any questions about our range of products or measuring instruments please contact PCE Instruments.
