GMP PROTOPIC-540 QUATRO SLIT User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

2015. 06

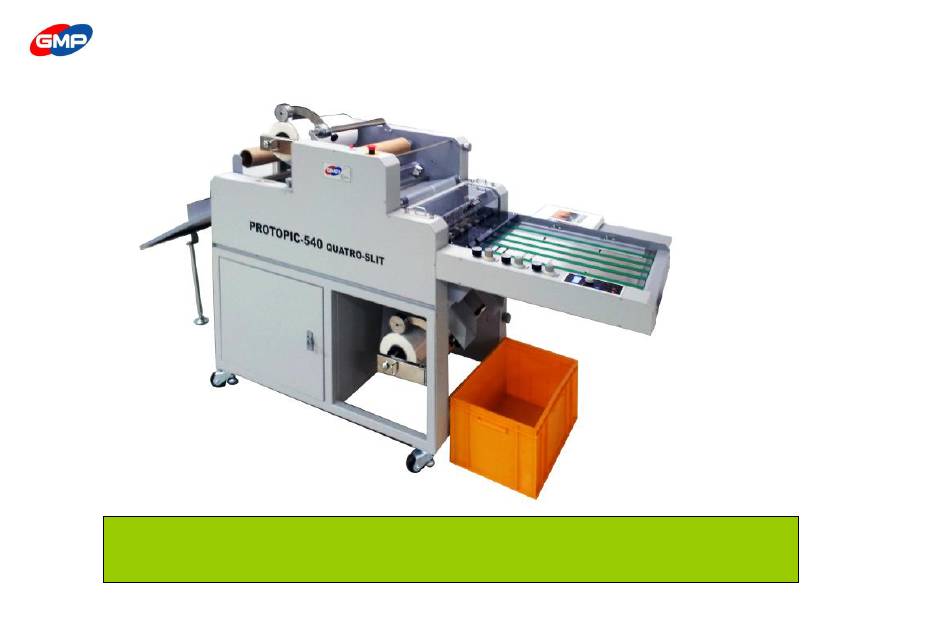

USER MANUAL FOR PROTOPIC-540 QUATRO SLIT
Before operating the unit, please read this manual thoroughly and retain it for future reference.
The design / specification of the machine could be changed for improvement without any prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROTOPIC-540 QUATRO SLIT and is the answer not in the manual?

Questions and answers

Related Manuals for GMP PROTOPIC-540 QUATRO SLIT

Summary of Contents for GMP PROTOPIC-540 QUATRO SLIT

  • Page 1 2015. 06 USER MANUAL FOR PROTOPIC-540 QUATRO SLIT Before operating the unit, please read this manual thoroughly and retain it for future reference. The design / specification of the machine could be changed for improvement without any prior notice.

  • Page 2: Table Of Contents

    INDEX ◐ SAFETY ◐ How to Laminate 28 ~ 33 page Important Safety Instruction 3 ~ 5 page Safety Device page ◐ MAINTENANCE page Warning Stickers 7 ~ 8 page ◐ TROUBLESHOOTING 35 ~ 38 page ◐ INSTALLATION ◐ SPECIFICATION Packing Contents page page...

  • Page 3: Important Safety Instruction 3 ~ 5 Page

    Important Safety Instruction "Important Safety Instruction " is for the purpose of user's safety and prevention of Property loss. Read thoroughly and Use rightly according to the manual Warning : If you ignore this symbol, you could suffer serious injury or death Caution: If you ignore this symbol, you could receive a serious injury or loss of property This symbol means a prohibited action.
  • Page 4 Important Safety Instruction Warning ☞ POWER Make sure plug is in the socket, as it could cause fire or an electric shock For your safety, grounding the power Grouning Do not pull the plug or bend improperly Danger, Malfunction, loss of electricity could cause an electric shock ☞...
  • Page 5 Important Safety Instruction Warning ☞ POWER When moving the product, turn off the power switch, disconnect the power plug from the socket When lamintor is not in use, you must turn off the power switch, disconnect the power plug from the socket. ☞...

  • Page 6: Safety Device 6 Page

    Safety Device Emergency Stop Switch ☞ Emergency Stop Switch When emergency situation happened, it stops the running motor(rollers) rotation and system operation. In case of emergency, use this switch. E-Stop S/W ☞ How to use Press the Red button to operate the Emgency Stop Switch. All system is stopped when this is pressed.

  • Page 7: Warning Stickers 7 ~ 8 Page

    WARNING STICKERS WARNING STICKERS For the user safety, in the outer design, the below sticker is attached. Be cautious not to injured during operation. ☞ Roller caution ☞ Higher Temperature Do not touch the roller and heating plate with your hand as you could be burnt. Do not touch on the heating part Roller's higher temperature and press can damage your body ☞...
  • Page 8 WARNING STICKERS WARNING STICKERS 8/51...
  • Page 9 CONTENTS Items Q'ty(EA) LAMINATOR FEEDING TABLE PAPER GUIDE AIR COMPRESSOR AIR HOSE GLASS TUBE FUSE (20mm) 250V/12.5A GLASS TUBE FUSE (20mm) 250V/15A WRENCH SET LAMI TABLE MANUAL SEPARATOR IDLE ROLLER LEADING PAPER WASTE GUIDE PROTOPIC-540 QUATRO SLIT WASTE BASKET 9/51...

  • Page 10: Main Devices 10 Page

    MAIN DEVICES Main Devices Film Rewinder Side Slitter Pull Roller Pressure Adjustmen Kob SLIT Module Safety Cover Perforator Feeding Gate E-Stop S/W Decurling Adjustment Knob Application Table Feeder Feeding Table Control Panel Laminating Roller Pressure Adjustment Knob Lower Roller Pressure Adjustmen Kobe Film Shaft Support Waste Guide Waste Basket...
  • Page 11 UNPACK & MOVE UNPACK & MOVE ☞ Unpacking 1. Product is packed with vacuum aluminum packing materials to avoid corrosion and external packing is wooden crate. 2. Wooden crate can be disassembled by 11mm box spanner. Disassemble the 5 panels on the left picture and remove vacuum packing materials. Then, move it to the installation place.
  • Page 12 UNPACK & MOVE Installation ☞ Circumstance 1. Be installed in the flat place. 2. If inflammable or combustible substance is around, it might be a reason for a fire. 3. Sufficient ventilation is required to omit the heat from the laminator while laminating. 4.
  • Page 13 UNPACK & MOVE How to connect Air Compressor ☞ How to connect Compressed air needs to be supplied into the laminator to activate the bursting roller and pressure on the laminating roller. Laminater Laminater Compressor Compressor Insert air hose in to the air Example of Power After Power On, pull the cap compressor...

  • Page 14: Control Panel

    3. Press STOP button and MASTER DIAL at the same time for 5 secs. to change the mode to AUTO or to MANUAL. NOTE : AUTO MODE is to integrated with GMP Automatic Feeder of PROFEEDR-5478. (Contact GMP to purchase it.) C.
  • Page 15 CONTROL PANEL D. "PAPER LENGTH"(Button to set up Paper Length) : To set up the length of substrate. Length set up range for MANUAL MODE is "203 ~ 1,219"mm and for ATUO MODE is "254 ~ 813"mm. ☞ How to set up Substrate Length : Press "PAPER LENGTH" button and set up a required length with MASTER DIAL. Setting value is saved after 5 secs.
  • Page 16 CONTROL PANEL H. "REV"(Button to Reverse Rotation of Roller) : To rotate the roller reversely. While the "REV" button is pressed, the roller is rotated reversely in roller engaged status. Then, the button is not pressed, reverse rotation is stopped and rollers are disengaged. NOTE : During the machine operation, the function is not activated.

  • Page 17: How To Use Control Panel

    HOW TO USE CONTROL PANEL Description on Display 1. Job Mode Display Screen 6. Bursting Paper Timming Display 2. Temperature Display on Upper Roller 7. Counting Paper/ Roller Heating Mode Display 3. Temperature Display on Bottom Roller 8. Feeding Paper Display 4.
  • Page 18 HOW TO USE CONTROL PANEL ③ "B:100℃W - Bottom Roller Temperature & Condition Display Window It displays Bottom Roller Set Temp. and Current Temp. NOTE : "W"(WAIT) or "R"(READY) means "Working Wait" or "Working Ready". - "W"(WAIT) : Current condition is not suitable for lamination. (Temp high or low) - "R"(READY) : : Current condition is suitable for lamination.
  • Page 19 ERROR MESSAGE Error Messages ☞ "EMS&COVER OPEN!!" M:Poly-L SPD:03 This is displayed when Roller Safety Cover is opened or when E-STOP Switch is pressed. T:100℃R B:1000 In emergency case, the switch makes Roller operation and System stop. B:100℃W C:00010 Roller Safety Cover is to avoid burn from contact to high temp. roller EMS&COVER OPEN!! Then, keep this in close status except film loading.
  • Page 20 ERROR MESSAGE ☞ "H-Err" M:Poly-L SPD:03 If laminating roller temp. is fluctuated by 25℃ in 0.5 sec., the message is displayed. T:H-Err B:1000 This is caused by trouble in temp. sensor. B:100℃W C:00010 Contact to a supplier. L:0315 ☞ "L-TEMP" M:Poly-L SPD:03 This message appears if a certain amount of actual temperature of the roller is lower than T:100℃R B:1000...
  • Page 21 MAIN DEVICES LAMINATION DEVICES ☞ Pressure Adjustmemt Device Pressure on Laminating Roller & Pull Roller (for DUAL - Embossing Roller) can be adjusted by Pressure Controller and Pressure its pressure on rollers are displayed on the gauge. Gauge Pull the Pressure Controller to adjust the pressure. Turn it to the right to increase its pressure, and turn it to the left to decrease the pressure.
  • Page 22 MAIN DEVICES ☞ Cooling Device for Embossing Roller To keep the temp. on Phtoto Embossing Roller stable with cooling for continuous quality of photo embossing during the job. The upper cooling device is working when the embossing roller is engaged and the lower one is working with machine operation automatically.
  • Page 23 MAIN DEVICES ☞ How to adjust pressure on Feeder Thickness / Surface Status of substrate requires adjustment on Feeder Stopper Shutter. Different pressure on shutter could be a cause of twisted paper fed, miss feeding, etc. for error in feeding. Belows are the way for pressure adjustment.
  • Page 24 MAIN DEVICES ☞ PAPER GUIDE & PAPER ALIGNMENT GUIDE To feed substrate straight and it can be adjusted for substrate width. To make substrates at the center and fix its bolts. Paper Place the Paper Alighnment Guide at the inner side from Paper Guide by 5mm. Alignment To feed substrate exactly, Paper Guide alignment status is important.
  • Page 25 MAIN DEVICES CUTTING DEVICES REWINDER ☞ Side Slitter & Rewinder To slit film ends if a film roll width is wider than substrate. Put the side slitters at a proper position to slit film. Rewind the slitted films on Rewinder. WARNING : Be careful to use this because sharp blade could be a cause of injury.
  • Page 26 MAIN DEVICES ☞ SLIT MODULE Device that has blades for slit book contents. Stopper ① SLIT KNIFE : to slit the substrates at a setting gap. Various gaps for slit is available for application of SLIT BOOK. Basically, 2 sets of SLIT KNIFE are installed on the device. - SLIT KNIVES (Optional) : 0.5mm(for Accordian Book), 1mm, 2mm, 3mm, 4mm and 5mm SLIT MODULE Fixing Bolt ②...
  • Page 27 MAIN DEVICES THE OTHER DEVICES ☞ Main Power Switch Power Switch is to supply or to cut the Power to the Machine. Press the Switch to the "I" direction, the Power is ON and to the "O" direction to Power OFF. Power Switch has Circuit Breaker to cut the power supply for overload or over current status in the machine.

  • Page 28: How To Laminate 28 ~ 33 Page

    How to laminate 1. How to load film ① ☞ Composition of Film installing devices ② ① Film Shaft : The film shaft is used to load a laminating roll films. ③ ② Film Shaft Holder Fixing Pin. : Film Shaft Holder Fixing Pin is used to fix the Film shaft Holder. ④...
  • Page 29 How to laminate 2. Positioning Film, Paper guide and cutter ① Positioning Film and Paper guide : Position is by adjusting the Scale on the film shaft and feeding table. ☞ Positioning example - if the substrate width is 480mm and film witdh is 470mm Paper aligning guide - The Paper Alignment Guide should be positioned on 5mm of inner side than Paper Guide.
  • Page 30 How to laminate 3. Film Loading 1) Insert Loading paper : ① Remove the protection cover ② Prepare a loading paper of 1m length and pass the paper through the decurling bar and bring the paper out of the front part of slit module. ※...
  • Page 31 How to laminate 4. Setting the job condition when you are the installing the film, set the roller pressure and set the temperature, speed, length of the substrates, slit knife position and etc. in accordance to the substrates and laminating films ※...
  • Page 32 How to laminate ☞ Lamination If the test lamination is acceptable, increase its speed for lamination. Remarks : for the best embossing effect, we recommend 40㎛ Film for 150g papers 25㎛ Film for 200g papers. ※ This machine contains special speed and temperature control program to improve lamination quality. 1.
  • Page 33 How to laminate ☞ Web diagrams Single side lamination Web Diagram Double side lamination Web Diagram Sleeking Web Diagram 33/51...

  • Page 34: Maintenance

    MAINTENANCE ROLLER CLEANSING ※ If the roller is not cleaned regularly, - Film can be wound into the rollers. - It contaminates the laminating results. ※ Roller Cleansing - After laminating is finished, when the laminating roller temperature is below 80℃, sweep the roller with "cotton" rag and "isoprophile alcohol". Caution : When cleansing the roller, use "isoprophilene alcohol"...

  • Page 35: Troubleshooting

    TROUBLESHOOTING FEEDING SYMPTOMS CAUSE OF TROUBLE TROUBLESHOOTING Laminating Roller is not operated. 1. If laminating roller safety cover's switch is opened. 1. Close the Laminating Roller Salfety Cover SW. 2. If motor for laminating roller or belt is damaged. 2. Ask to a supplier. 3.

  • Page 36: Troubleshooting 35

    1. Refer to the "Decurling Adjustment". 2. If Paper thickness is thinner. 2. GMP doesn't recommend the following paper spec. (80~120g/㎡) Film stuck on Rubber Roller. 1. If a feeding error is occurred in initial job start or paper condition is changed.
  • Page 37 TROUBLESHOOTING CUTTING SYMPTOMS CASE OF TROUBLES TROUBLESHOOTING Bursting Roller is not operated. 1. It could be trouble in Bursting Roller Motor or 1. Please ask to a supplier. Conveyor Belt is damaged. 2. Fuse is short circuit. 2. Replace it with Fuse (250V/8A) that is packed in the machine. 3.
  • Page 38 TROUBLESHOOTING Others SYMPTOMS CASE OF TROUBLES TROUBLESHOOTING When using the Rewinder 1. If the Rewinder tension is strong. 1. Please rotate the Rewinder tension control handle to the left side. not good. The rewinder tension will decrease 2. If the Rewinder tension is weak. 2.

  • Page 39: Specification

    Specification Description PROTOPIC - 540 QUATRO SLIT Dimension(W*L*H)(mm) 800*2000*1320 Max. Laminating Speed(m/min) - Slit Book Lamination : 5m/min - Single Lamination : 15m/min - Duplex Lamination : 7m/min - Single Photo Lamination : 3m/min - Duplex Photo Lamination : 5m/min Max.

  • Page 40: Digital Sleeking Solution

    DIGITAL SLEEKING SOLUTION - Introduction DIGITAL SLEEKING SOLUTION GMP DIGITAL SLEEKING SOLUTION is the epoch solution to provide various value-added products with Whole Page & Spot Gloss/Matt/Hologramming with GMP Laminators. 1. SLEEKING (GLOSS & MATT FINISH) SLEEKING FOIL : GLOSS SLEEKING FOIL, MATT SLEEKING FOIL 2.HOLOGRAM...

  • Page 41: Gloss & Matt Sleeking 41

    SLEEKING (GLOSS & MATT FINISH) 1.GLOSS/MATT SLEEKING With GMP GLOSS SLEEKING FOIL & MATT SLEEKING FOIL, the surface of Toner Based Prints / Digital Prints can be changed for higher quality of results. Conditions for GLOSS/MATT SLEEKING FOILS Model Speed Set Temp.(℃) Pressure (MPa)
  • Page 42 SLEEKING (GLOSS & MATT FINISH) 2. Whole Page Gloss / Matt SLEEKING SOLUTION ① Whole Page Gloss / Matt Sleeking POD Prints Film Loading FINISH FILM & LAMINATOR SLEEKING (DIGITAL PRINT) Temp. / Speed Setting PRINTER FILM Refer to the Pic. 1.2 Refer to the Table 1.1 HP INDIGO 3500 GLOSS SLEEKING FOIL...
  • Page 43 SLEEKING (GLOSS & MATT FINISH) 2. Spot Gloss/Matt SLEEKING SOLUTION with Prints ② Spot Gloss / Matt Sleeking POD Prints POD Prints (DIGITAL PRINT) (DIGITAL PRINT) SLEEKING FINISH OFFSET Prints Temp. / Speed Setting Refer to the Table 1.1 PRINTER HP INDIGO 3500 XEROX 5252 (Table 1.3) Spot Gloss / Matt Sleeking...
  • Page 44 5. Sleeking on the Printed Surface in process of (Table 1.2) 1.Cut the Car Image(Picture 6. Only the Spot 3. Laminate in GMP 4. Print the Spot Image Image has Sleeking 1.2) with Image Editing on the Laminated Laminator with GMP Effect.

  • Page 45: Hologram Sleeking

    SLEEKING(HOLOGRAM FINISH) 1.HOLOGRAM SLEEKING With GMP Hologram SLEEKING FOIL, the surface of Toner Based Prints / Digital Prints can be changed for higher quality of results with hologram effect. Conditions for HOLOGRAM SLEEKING FOIL HOLOGRAM SLEEKING FOILS Model ① SPARKLE-HOLOGRAM Speed Set Temp.(℃) Pressure (MPa)
  • Page 46 SLEEKING(HOLOGRAM FINISH) 2. Whole Page HOLOGRAM SLEEKING SOLUTION ① Whole Page Hologram Sleeking POD Prints FILM & LAMINATOR Foil Loading FINISH SLEEKING (DIGITAL PRINT) Temp. / Speed Setting PRINTER FILM Refer to the Picture 2.2 Refer to the Table 2.1 HP INDIGO 3500 HOLOGRAM SLEEKING FOIL XEROX 5252...
  • Page 47 SLEEKING(HOLOGRAM FINISH) 2. Spot HOLOGRAM SLEEKING SOLUTION ② Spot Hologram Sleeking POD Prints (DIGITAL PRINT) SLEEKING POD Prints FINISH OFFSET 인쇄물 Temp. / Speed Setting Refer to the Table 2.1 PRINTER HP INDIGO 3500 XEROX 5252 (Table.2.3) Spot Hologram Sleeking 6.
  • Page 48 Printed Surface in process of (Table 2.2) d 1.Cut the Carrot 6. Only the Spot Image 4. Print the Spot Image Image(Picture 2.1) with 3. Laminate in GMP has Sleeking Effect. on the Laminated Image Editing Program Laminator with GMP Surface.
  • Page 49 METALLIC SLEEKING 1.SPOT METALLIC SLEEKING GMP METALLIC SLEEKING FOIL makes different effect on the printed area for highlight. Conditions for METALLIC SLEEKING FOIL METALLIC SLEEKING FOIL ① GOLD Model ② SILVER Speed Set Temp.(℃) Pressure (MPa) Protopic-series (Table 3.1) (Picture 3.1)
  • Page 50 Refer to the Table 3.1 PRINTER HP INDIGO 3500 XEROX 5252 (Table.3.3) Spot Gold/Silver Metallic Sleeking 5. Print the Background Image. 3. Laminate in GMP Laminator with GMP Sleeking Foil. 1.Cut the Spot 2. Print out the Spot Image Image(Picture 3.1) with only.
  • Page 51 SLEEKING FOIL SPECIFICATION SLEEKING FILM SLEEKING FOIL GLOSS 77CORE * 1000M,2000M MATT 77CORE * 1000M,2000M DUAL 77CORE * 1000M,2000M HOLOGRAM SLEEKING FOIL - SPECTRUM,MILKYWAY,CRYSTAL,STAR,MOSAIC,SPARKLE,HYPER PLAID HOLOGRAM SLEEKING FOIL-PET12 77CORE * 1000M HOLOGRAM SLEEKING FOIL-PET25 77CORE * 1000M HOLOGRAM SLEEKING FOIL-PET50 77CORE * 1000M HOLOGRAM FOIL-UV20 77CORE * 1000M...
