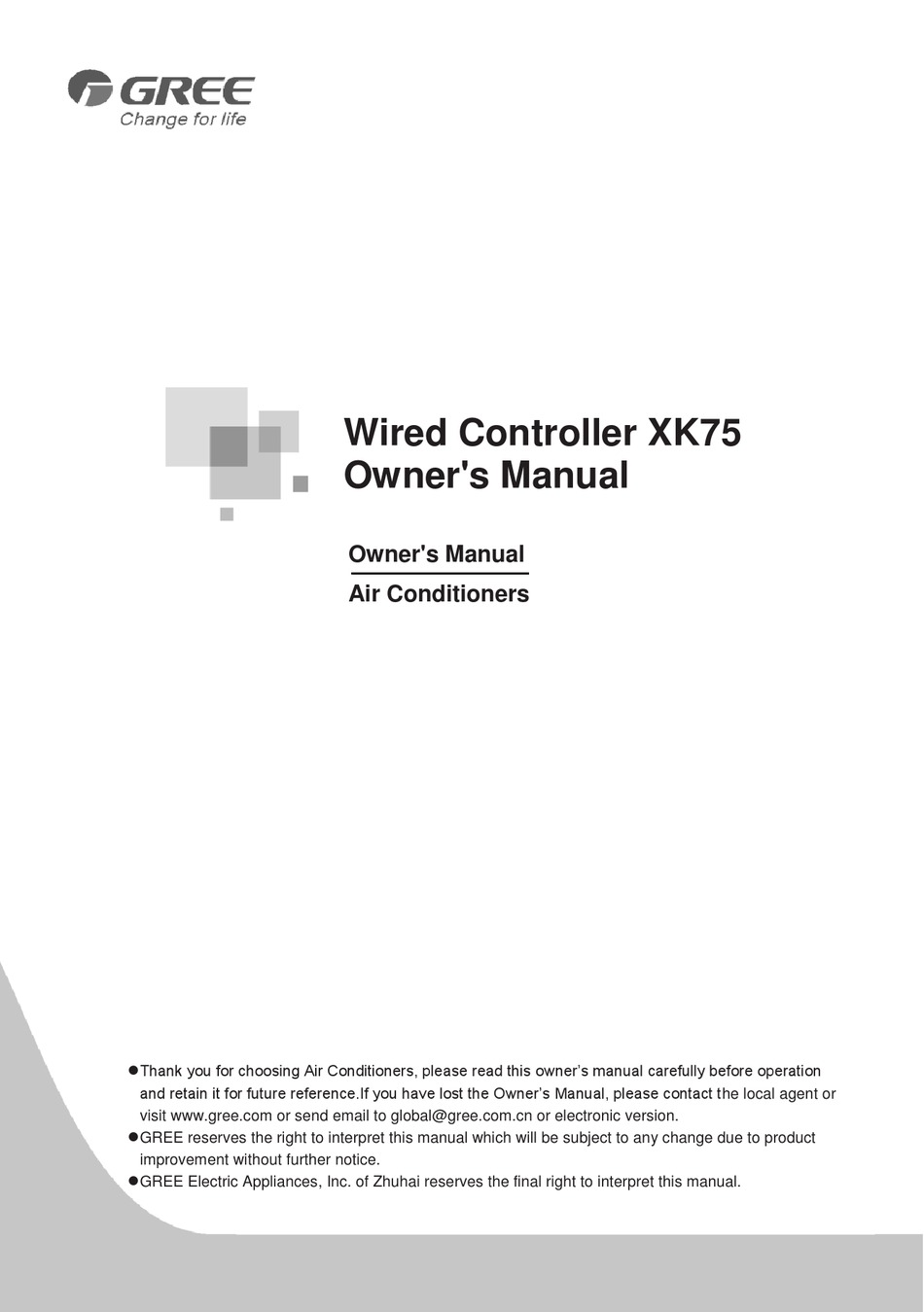

Wired Controller XK75
Owner's Manual
Owner's Manual
Air Conditioners

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XK75 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gree XK75

Summary of Contents for Gree XK75

  • Page 1 Owner’s Manual, please contact the local agent or visit www.gree.com or send email to global@gree.com.cn or electronic version.  GREE reserves the right to interpret this manual which will be subject to any change due to product improvement without further notice.
  • Page 2 User Notices For correct installation and operation, please read all instructions carefully. Before reading the instructions, please be aware of the following items: (1) Prohibit installing the wired controller at wet or sunshine places. (2) Do not knock, throw or frequently disassemble the wired controller. (3) Do not operate the wired controller with wet hands.

  • Page 3: Table Of Contents

    Contents 1 Display ..................1 1.1 Appearance ................1 1.2 Instructions for Related Displayed Symbols ....... 2 2 Buttons ..................3 2.1 Button Graphics ................. 3 2.2 Function Instructions of Buttons ..........3 3 Operation Instructions .............. 3 3.1 Menu Structure................3 3.2 On/Off ..................

  • Page 4: Display

    Wired Controller XK75 Owner's Manual 1 Display 1.1 Appearance Fig.1 Appearance of wired controller...

  • Page 5: Instructions For Related Displayed Symbols

    Wired Controller XK75 Owner's Manual 1.2 Instructions for Related Displayed Symbols Symbols Instructions Up and down swing function Left and right swing function Fresh air function Sleep function Auto mode Cooling mode Dry mode Fan mode Heating mode Health function...

  • Page 6: Buttons

    Wired Controller XK75 Owner's Manual 2 Buttons 2.1 Button Graphics Fig. 2 Button graphics 2.2 Function Instructions of Buttons Button name Button Function Set low speed, low-medium speed, medium speed, medium-high speed, high speed, turbo and auto speed. (1) Set temperature ∧...
  • Page 7 Wired Controller XK75 Owner's Manual Fig. 3 Menu structure...

  • Page 8: On/Off

    Wired Controller XK75 Owner's Manual 3.2 On/Off When the wired control is on main page, press ON/OFF button to turn on the unit. Press ON/OFF button again to turn off the unit. The interfaces of On/Off status are shown in Fig. 4 and Fig. 5.

  • Page 9: Swing Setting

    Wired Controller XK75 Owner's Manual 3.6 Swing Setting In unit on status, press SWING button for swing setting. Two swing modes are available: fixed-angle swing and simple swing. When fixed-angle swing mode is set, swing operation is as follows: In unit on status, press SWING button to select up&down swing .
  • Page 10 Wired Controller XK75 Owner's Manual Fig. 7 Swing setting...

  • Page 11: Functions Setting

    Wired Controller XK75 Owner's Manual 3.7 Functions Setting Press MENU/OK button on main page to enter main menu page. Press “∧” or “∨” or “＜” or “＞” button to select the function setting symbol. Then press MENU/OK button to enter user function setting page. Press “∧” or “∨” button to select specific function item.
  • Page 12 Wired Controller XK75 Owner's Manual 3.7.1 Fresh Air Function Setting After entering user function page, press “∧” or “∨” button to select fresh air function and press “＜” or “＞” button to turn on or turn off air function. Press MENU button to adjust the mode of fresh air.
  • Page 13 Wired Controller XK75 Owner's Manual saving. Note: ① . This function is only available in cooling mode. ② . When this function has been set, set temperature is displayed in 27℃(81℉). In this case, temperature setting and fan speed setting are shielded.
  • Page 14 Wired Controller XK75 Owner's Manual temperature, press “∧” or “∨” button to adjust limitation temperature value. After setting, press MENU button to save the setting. Note: When save function has been set, auto mode cannot be set. 3.7.8 Auxiliary Heating Function Setting After entering user function page, press “∧”...

  • Page 15: Unit Status View

    Wired Controller XK75 Owner's Manual When level 3 is selected, the adjusting range of accumulating operating time is 100~1000 hours, with 100 hours in each increase or decrease. This function is used to remind you to clean the filter when the unit’s own operating time is reach your setting.

  • Page 16: Current Error View

    Wired Controller XK75 Owner's Manual Fig. 9 Status View 3.9 Current Error View When error occurs in the unit, error symbol will be displayed on the main page of wired controller to indicate that the unit is with error. In this case, you can enter error view page to view the current error.

  • Page 17: Timer Setting

    Wired Controller XK75 Owner's Manual Fig. 10 Current Error View 3.10 Timer Setting The wired controller can set 6 kinds of timer: one time clock timer, everyday timer, one week timer, two week timer, countdown timer on and countdown timer off. Select timer symbol after entering menu page.
  • Page 18 Wired Controller XK75 Owner's Manual Fig. 11 Turn on or turn off timer 3.10.1 One Time Clock Timer The wired controller can set one time clock timer. If the unit is off, timer on can be set. If the unit is on, timer off can be set. This timer will be carried out for only once when timer time is reached and then the timer will be off automatically.
  • Page 19 Wired Controller XK75 Owner's Manual Note: If this timer function is turned on, when the unit is turned on or turned off, this timer function will be cancelled automatically. 3.10.2 Daily Timer In daily timer, user can set eight segments of timer individually. The individual segment will be valid only when it is turned on.
  • Page 20 Wired Controller XK75 Owner's Manual Fig. 14 Weekly timer setting...
  • Page 21 Wired Controller XK75 Owner's Manual 3.10.4 Two Week Timer The user can set the everyday timer content for two weeks. In each day, the user can set eight segments of timer content. The unit will execute corresponding timer setting in two weeks.
  • Page 22 Wired Controller XK75 Owner's Manual After entering timer on setting page, press “∧” or “∨” button to increases or decreases timer time by 0.5h. Press BACK button to return to the last page. Please refer to Fig. 16. Fig. 16 Countdown timer on After entering timer off setting page, press “∧”...

  • Page 23: Clock Setting

    Wired Controller XK75 Owner's Manual This timer function will be carried out for only once and then it will be cancelled automatically. Note: If this timer function is turned on, when the unit is turned on or turned off, this timer function will be cancelled automatically.

  • Page 24: Lock Setting

    Wired Controller XK75 Owner's Manual Fig. 19 Clock setting 3.12 Lock Setting Select lock symbol in menu page and then press MENU button to enter lock setting page. Press “∧” or “∨” button to select the item to be locked and then press “＜” or “＞”...

  • Page 25: Installation Instructions

    Wired Controller XK75 Owner's Manual Fig. 20 Lock setting 4 Installation Instructions 4.1 Parts and Dimension of Wired Controller Fig. 21 Dimension of wired controller Fig. 22 Parts of wired controller Panel of wired Soleplate of wired Name Screw M4×25...

  • Page 26: Installation Requirements

    Wired Controller XK75 Owner's Manual 4.2 Installation Requirements (1) Prohibit installing the wired controller at wet places. (2) Prohibit installing the wired controller at the places with direct sunshine. (3) Prohibit installing the wired controller at the place near high temperature objects or water-splashing places.

  • Page 27: Disassembly

    Wired Controller XK75 Owner's Manual Note: If the procedures in point 2 and point 5 mentioned above is hard to be done as the diameter of selected communication wire is big, please peel off the sheathed layer in appropriate length according to actual situation.
  • Page 28 GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI Add: West Jinji Rd, Qianshan, Zhuhai, Guangdong, China, 519070 Tel: (+86-756) 8522218 Fax: (+86-756) 8669426 E-mail: gree@gree.com.cn www.gree.com...
