Gree XK60 Owner's Manual

Wired controller
Hide thumbs Also See for XK60:

Advertisement

Table of Contents

See also: Owner's Manual
Change for life
Thank you for choosing our commercial air conditioners. Please read this owner's manual
carefully before operation and retain it for future reference.
This owner's manual is subject to change without prior notice for product improvement.
GREE Electric Appliances, Inc. of Zhuhai reserves the final right to interpret this manual.
Wired Controller
XK60
Owner's Manual
Commercial Air Conditioners

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XK60 and is the answer not in the manual?

Questions and answers

Related Manuals for Gree XK60

Summary of Contents for Gree XK60

  • Page 1 Thank you for choosing our commercial air conditioners. Please read this owner's manual carefully before operation and retain it for future reference. This owner's manual is subject to change without prior notice for product improvement. GREE Electric Appliances, Inc. of Zhuhai reserves the final right to interpret this manual.

  • Page 2: User Notice

    User Notice Please carefully read this manual before installation operation. Thanks for choosing GREE duct type air conditioners. Please read this manual carefully ◆ before operating this product and keep it for future reference. In addition, please observe the following Notes:...

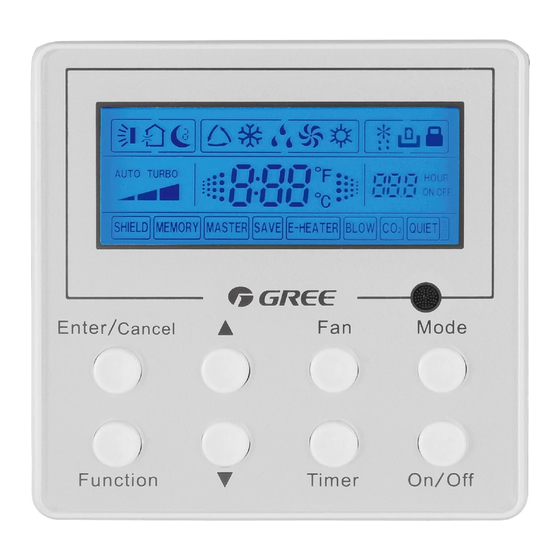

  • Page 3 OVERVIEW OF WIRED CONTROLLER XK60 Tether Wired Controller Wired Controller Button Description Button Button Name Function Enter/Cancel Function selection and cancellation. ▲ Adjust room setpoint temperature (61 ~ 81°F / 16 ~ 30℃ range). ▼ Or adjust Timer & Sleep setting, (0.5-24 hr.
  • Page 4 OVERVIEW OF WIRED CONTROLLER Wired Controller LCD Display Symbols Description Swing function Sleep Mode function Running modes (Heating Cooling, Dry, and Fan Only). Defrosting function for the outdoor unit. Function not available Not Available Keyboard Lock function. Fan Speed (High, Medium, Low or Auto fan speed) Not Available Function not available Turbo Mode function.

  • Page 5: Mode Setting

    OPERATION OF WIRED CONTROLLER Operation Instructions On/Off Press On/Off to turn on the unit and press again to turn it off. “OFF” State ON” State Mode Setting The system can be put in Auto, Cooling, Dry, Heating or Fan Only operating mode. Select an operating mode, press the Mode button until the desired operating mode symbol appears on the display.

  • Page 6: Setting Fan Speed

    OPERATION OF WIRED CONTROLLER Setting Fan Speed Press Fan button to change fan speed of the indoor unit. The fan speeds will change circularly as shown above. Setting Timer Mode To set the Timer ON Mode, press Timer button and the LCD display will blink “xx.x hour”. Press the ▲or ▼...
  • Page 7 OPERATION OF WIRED CONTROLLER Setting Swing Louver To turn ON the Swing Louvers, press the Function button. The swing louver symbol will start blinking. Press the Enter button to confirm. To start - Turn ON unit Press FUNCTION button Press ENTER button to confirm To turn OFF the Swing Louvers, press the Function button.

  • Page 8: Setting Sleep Mode

    OPERATION OF WIRED CONTROLLER Setting Sleep Mode The unit will automatically adjust room temperature during your sleep time. This slight change in temperature will not affect your comfort level due to the natural effects that sleeping has on the body, but it will save on energy consumption and will lower your electric bill.

  • Page 9: Turbo Setting

    OPERATION OF WIRED CONTROLLER Turbo Setting The desired room setpoint, either in heating or cooling, can be achieved faster in TURBO mode. The unit will run at ultra-high speed fan until room setpoint is satisfied. In the Cooling or Heating mode, press Function button until the Turbo symbol will start blinking.
  • Page 10 OPERATION OF WIRED CONTROLLER Setting X-Fan Mode After turning OFF the system, the indoor fan will continue to run for 10 minutes at low speed to evaporate excess moisture on indoor coil. In the Cooling or Dry, press Function button until the X-Fan symbol BLOW will start blinking. Press the Enter button to confirm.

  • Page 11: Setup Modes

    OPERATION OF WIRED CONTROLLER Setup Modes The system has three (3) special setup modes to customize the unit to the installation. Keyboard Lock The Locking Keypad prevents unauthorized access to the heating and cooling controls. To lock the keypad on the wired controller, the unit must be in the “Off” state.

  • Page 12: Temperature Display Mode

    OPERATION OF WIRED CONTROLLER Temperature Display Mode The wired controller LCD display may display either room temperature sensed at the system, room temperature sensed at the wired controller, or return air temperature sensed at the indoor unit. To set the temperature display, the unit must be in the “Off” State. Press Function and Timer buttons at the same time for 5s.
