MRU GmbH USER MANUAL MFplus Part 2 OPTION TRGI

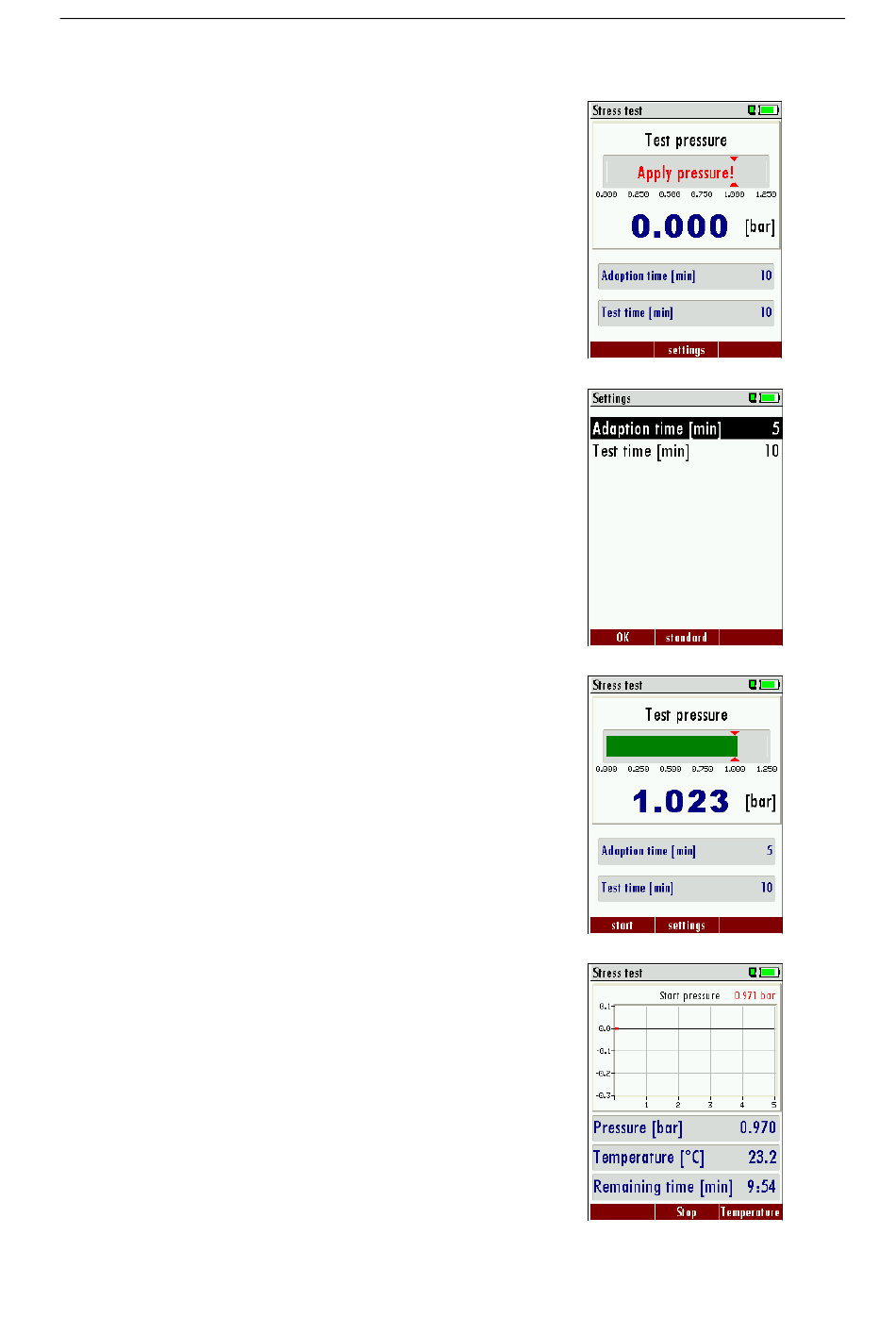

3.1.3 Operation

3.1.3.1 Apply pressure

In this screen you will apply pressure to the pipe you want to test.
Using the hand pump you will apply pressure (air) with open tap at the
Y-divider (2).
Times can be modified with the F2 button.
Times between 1 minute and 80 minutes are selectable.
The default value is 10 minutes.
Once the test pressure of 1 Bar is reached, the bar on the screen turns
green and the tap at the Y-divider (2) must be closed. With F1 the test
will be started.

3.1.3.2 Adaption phase

The adaption phase can be shortened at any time using the F1 button.
With F3 the temperature curve will be displayed.
Once the adaption phase is completed the stress test will start
automatically.
10
