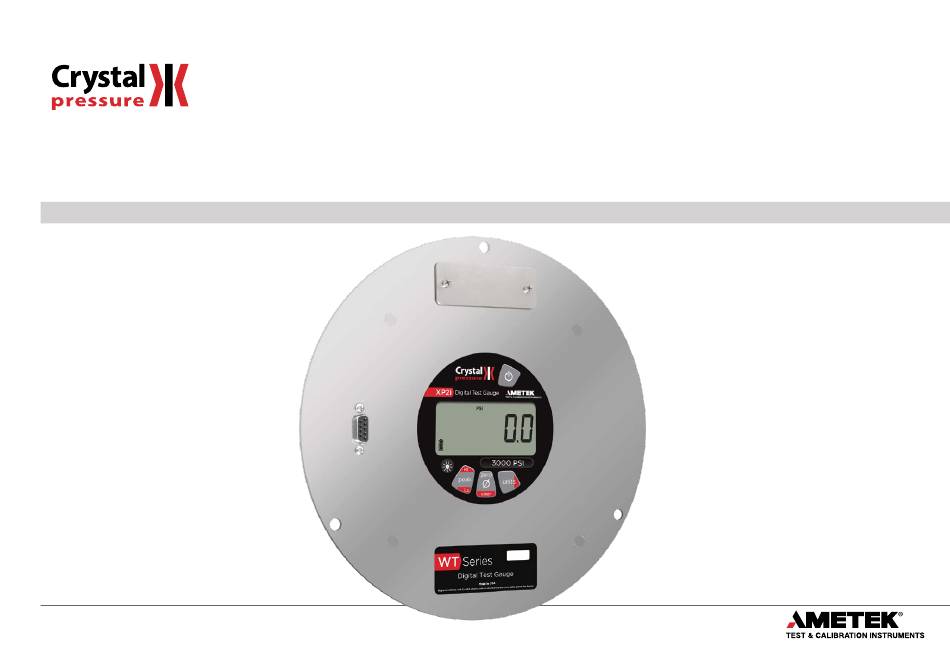

- Page 1 WT Series Operation Manual for the WT Series Digital Test Gauge...
-
Page 2: Table Of Contents
Contents Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -
Page 3: Overview
Thank you for choosing the WT Series Digital Test Gauge from Crystal Engineering Corporation. The WT Series is a combination of leading edge technol- ogy and rugged industrial design. The WT Series Digital Test Gauge is designed to fit in 8" or 10" panel mount applications commonly found in portable test sets. -
Page 4: Operating Instructions
WT Series to read zero pressure at any applied pressure, up to the full scale rating of the gauge. The factory default setting limits the maximum zero value to 20 PSI, but this limit can be changed with Some WT Series are rated for absolute pressure. -
Page 5: Functions
In some cases the ability to display a peak value may not be needed, or may even be dangerous. ConfigXP allows you to disable this button. The WT Series can average 1 to 10 readings, recalculated every time pressure is measured (4 times per second). Enable and set the number of readings to be averaged with ConfigXP. - Page 6 WARNING: This gauge can display zero pressure when connected to a source of pressure! Do not rely on the display indication before disconnecting— it may not be indicating true pressure. Never disconnect pressure instrumentation without first relieving system pressure! To Clear the Zero Value on the WT Series Turn off peak indication as described above, then press and hold the...
- Page 7 If you start the WT Series in the No Auto Off mode, you may select the brightness level in the same way. The light will never time out and turn off. Turn off the...
- Page 8 The following applies only to models where inches of water is a selectable pressure unit. As shipped from the factory, the WT Series is set to display inches of water corresponding to the density of water at 4° C (39.2° F). You may require a different water density for your application, so the WT Series can be set to use the density of water at 20°...
- Page 9 Reset If for some reason the WT Series needs to be reset, remove any battery for at least one minute, then reinstall the battery. If the reset is successful, the WT Series on/off will start operating without pressing the button.
- Page 10 The Battery icon ( ) uses three bars to display the battery level. When the icon displays all three bars, the batteries are full. The WT Series will continue to operate accurately while the icon is visible. When the batteries are exhausted, the letters batt will appear across the display.
-
Page 11: Enclosure
Housing ......Aluminum, Stainless Steel. The serial number of your WT Series is located on the front panel. It is also stored Keypad and Labels . -
Page 12: Specifications
Specifications Specifications Accuracy Includes all effects of linearity, hysteresis, repeatability, temperature, and stability for one year. Gauges must be exercised whenever exposed to significant changes in environmental conditions to achieve these specifications, and (if not an absolute model), rezeroed. To exercise a gauge, cycle the gauge between zero (ambient barometric pressure) and the pressure of interest. A properly exercised gauge will return to a perfect zero reading (or return to the same ambient barometric reading). -
Page 13: Power
Specifications Pressure Conversions Sensor Wetted Materials ....(Wrench Tight) 316 stainless steel 1 PSI = 27.6806 inches of water column (water at 4° C [39.2° F]) (Finger Tight) 316 stainless steel and Viton (internal o-ring) 27.7070 inches of water column (water at 15.6°... -
Page 14: Pressure Ranges, Display Scales, & Resolution
• WT Series will indicate pressure up to 10% above Range Pressure. Above 110%, the display will flash, indicating that the applied pressure exceeds the calibrated pressure range. If the calibrated pressure range is exceeded, the pressure displayed may not be accurate. -
Page 15: Support
Support Support „ „ „ „ „ TROUBLESHOOTING The XP2i is a very high performance gauge. Due to the high resolution of this product, you may observe conditions that appear to be defects in the product, but are in fact a result of being able to resolve and measure pressure to a degree not possible with other instruments. Noisy or Unstable Reading When Used with Fluids Err 2 Displayed When calibrating or comparing the indicated pressure from an XP2i against a hydraulic dead... -
Page 16: Calibration
Support „ „ „ „ „ CALIBRATION Factory Adjustment If adjustment is required, we recommend returning the unit to the factory. Factory service offers benefits you won’t find anywhere else. We have the facilities to test your gauge at a variety of temperatures utilizing NIST traceable standards in our A2LA accredited laboratory, resulting in calibration certificates that provide performance data over temperature. -
Page 17: Software
Support „ „ „ „ „ SOFTWARE LabVIEW™ Drivers and Programming Instructions Control and communicate with XP2is using National Instrument’s LabVIEW, or our Programming Instructions. Integrate XP2is into your test environment! ConfigXP Configuration Software ConfigXP to disable unwanted pressure units, set default pressure units, change water density, adjust calibration, and more via the RS-232 interface. „... -
Page 18: Contact Us
WARRANTY Crystal Engineering Corporation warrants the WT Series Digital Test Gauge to be free from defects in material and workmanship under normal use and service for one (1) year from date of purchase to the original purchaser. It does not apply to batteries or when the product has been misused, altered or damaged by accident or abnormal conditions of operation. - Page 19 © 2015 Crystal Engineering Corporation 708 Fiero Lane, Suite 9, San Luis Obispo, California 93401-8701 3310. E...
