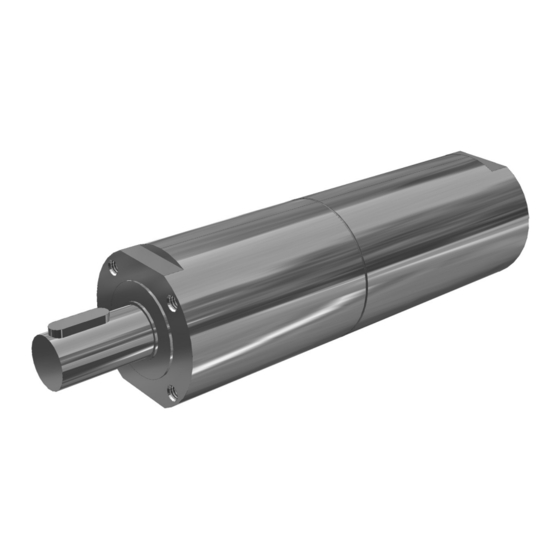

Parker P1V-S Installation Leaflet

4601503-P1V-S Issue 5
Disconnect air and electrical supplies before
attempting repair or maintenance.
See ISO 4414-1982 for safety requirements covering
the installation and use of pneumatic equipment.
Koppla ifrån luft och elektriska anslutningar innan
reparations-och underhållsarbeten påbörjas.
Se ISO 4414-1982 för säkerhetsbestämmelser
täckande installation och användning av pneumatisk
utrustning.
1. Important Notes
Safety and Warning Signs
The safety and warning instructions contained
should always be followed!
IMMEDIATE DANGER
Possible consequences: death or grave injuries.
DANGEROUS SITUATION
Possible consequences: slight or minor injuries.
DAMAGING DANGER
Possible consequences: damage to drive or the
surrounding area.
Important instructions relating to explosion
protection.
Application tips and other useful information.
NOTICE ALL DOCUMENTATION!
Before beginning work this operating instruction
booklet has to be read through carefully. Always follow
the instructions during operation. Give this operating
instruction booklet to the operator.
Definition
Potentially explosive atmosphere (hereinafter referred to as
"Ex-area")
= An atmosphere which could become explosive due to
local and operational conditions.
The observance of the operating instructions is the
precondition for an error free operation and the fulfillment
of warranty claims. Therefore, please read the operating
instruction booklet prior to working with the air motor!
The operating instruction booklet contains important tips
for motor service and should therefore be kept in the
vicinity of the motor.
Disposal
Always observe the most current regulations for
disposal.
Especially during installation, repair or maintenance water
damaging agents, such as:
• lubricating greases and oil
• hydraulic fluid
• cooling agents
• solvent-containing cleaning agents may not leak into
the ground or into the sewage system!
Such materials must be stored, transported, contained
and recycled in suitable containers.
Housing parts, tooth rings, shafts, as well as gear parts
should be disposed off as steel scrap.
