Straight Cuts

1. Using a marker or grease pencil, mark the area to be cut
on tile.
2. Place the tile on the cutting cart against the cutting cart
fence 9 and align your mark with the blade.
3. Pull the on/off switch up to turn the saw on and wait for
the blade to be completely covered with water.
4. Ease the cutting cart toward the blade then slowly feed
the tile into the blade. Continue pushing until the blade
cuts completely through the tile.
nOTE: The flip hood on the splash hood can be rotated
up to help align the line on the tile with the blade.
5. Turn off the saw.

Diagonal Cuts

Diagonal cuts are also referred to as "long point to long
point cuts."
1. Install the edge guide.
2. Align the point of the tile closest to the cutting cart
fence 9 with the cut indicator
3. Align the front of the tile to the blade and hold against
the edge guide.
4. Turn the saw on and make the cut.
5. Turn off the saw.
L-Cuts
An L-cut is a section that is removed from of a piece of tile
and is used when cutting a piece of tile to fit in a corner of a
cabinet or piece of trim molding.
1. Outline the area to be cut on both sides of the tile.
2. Align the tile to the cutting cart fence and make the cut
far enough into the tile without overcutting.
3. Make a cut on the other mark on the tile
without overcutting.
4. Turn the tile over and make the cut along one of the
outlines, but this time an overcut can occur without
damaging the exposed surface of the tile due to the
radius of the blade. Overcut the other line and the cut
piece should be separate from the rest of the tile.
5. Turn off the saw.

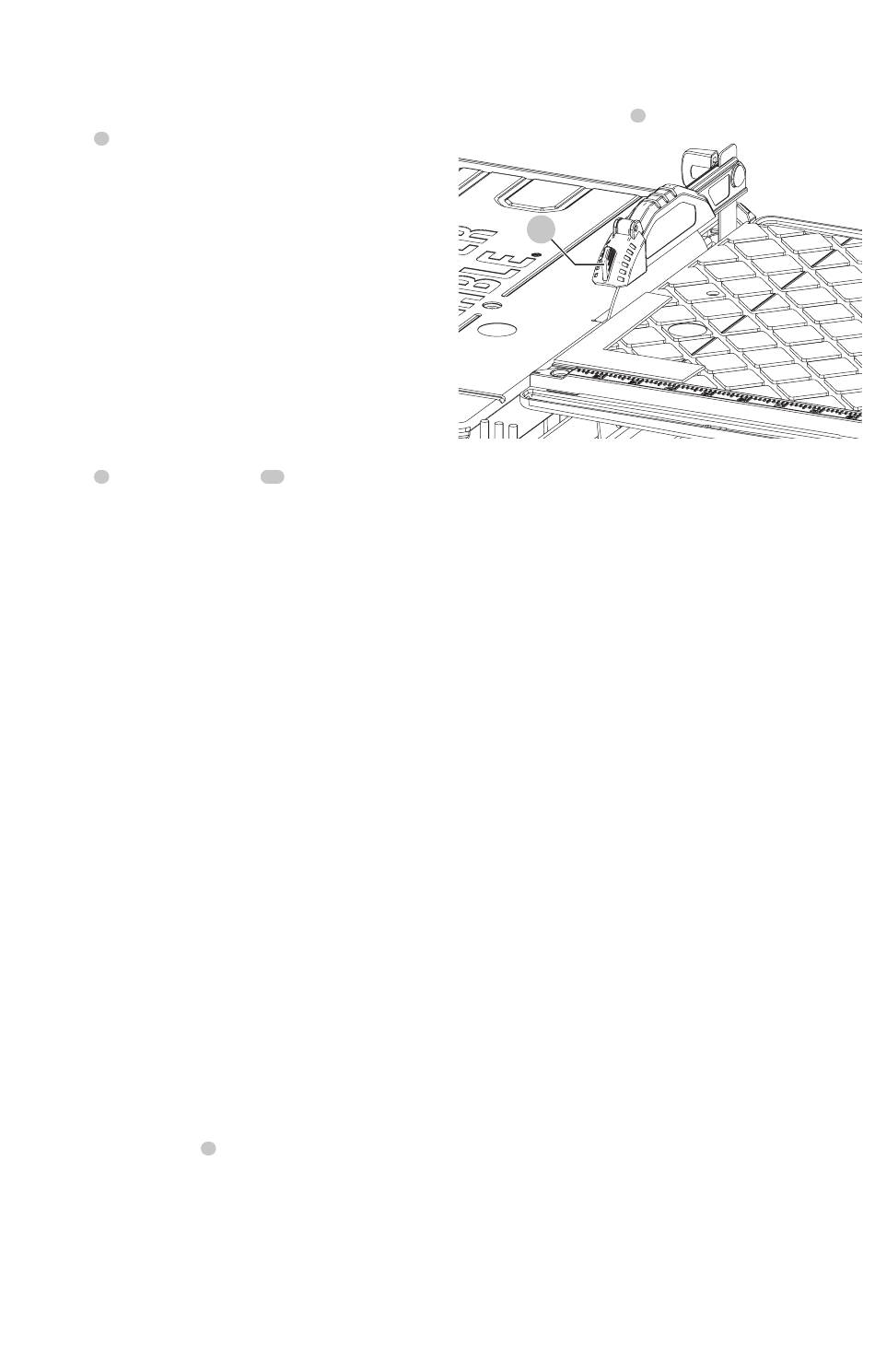

Adjustments (Fig. A, S)
The cutting cart fence and rails are properly aligned from
the factory. Shipping or prolonged use can cause them to
become misaligned and need adjustment.
Squaring the Cutting Cart Fence to the
Blade
1. Lay a 90º square flat on the blade surface with one end
against the cart fence
2. If the blade is not 90º to the cart fence, the rail will
need adjustment.
3. Loosen the cart fence adjustment screw.
4. Adjust the fence until it is square to the blade.
5. Tighten the cart fence adjustment screw.
32 .
9 .
Adjusting the Cutting Cart Parallel to
the Blade
1. Lay a 90º square flat on the blade surface with one end
against the cart fence
FIg. S
32
2. If the blade is not 90º to the cart fence, the rail will
need adjustment.
3. Loosen the three front and rear screws on the left guide
rail, and adjust rail until it is parallel to the blade.
4. Move the rail until the cart fence is square to the blade.
5. Tighten the three rail screws.

MAINTENANCE


WARNING: To reduce the risk of serious personal
injury, turn tool off and remove the battery pack
before transporting, making any adjustments or
removing/installing attachments or accessories.
An accidental start-up can cause injury. Make sure the
switch is in the OFF position.
Lubrication

WARNING: NEVER spray or in any other way apply
lubricants or cleaning solvents inside the tool. This can
seriously affect the life and performance of the tool
and may result in personal injury.
PORTER-CABLE tools are properly lubricated at the factory
and are ready for use. However, it is recommended that,
once a year, you take or send the tool to a certified service
center for a thorough cleaning and inspection.
Cleaning

WARNING: Blow dirt and dust out of all air vents with
clean, dry air at least once a week. To minimize the risk
of eye injury, always wear ANSI Z87.1 approved eye
protection when performing this.

WARNING: Never use solvents or other harsh
chemicals for cleaning the non-metallic parts of
the tool. These chemicals may weaken the plastic
materials used in these parts. Use a cloth dampened
only with water and mild soap. Never let any liquid
get inside the tool; never immerse any part of the tool
into a liquid.
