Overview
The ProPlex IQ Two 1616 2x is a 16-way bidirectional ArtNet/sACN-DMX Node with dual EtherCon ports and PoE
power in. Features include:
•
Assign 16 DMX Connectors to up to 16 Art-Net/sACN universes
•
Input or output on any connector
•
Dual EtherCon ports allow very low latency linking of units and, with GBS and EZ-LAN, ring topology for
speed and redundancy
•
Full RDM functionality
•
Merge Art-Net or Streaming ACN from multiple sources
•
RDM Manager software available for system setup and feedback
•
PoE IN (802.3af) support
•
Web interface – manage large networks locally or remotely
•
Large touchscreen for quick, easy setup and operation
•
Rugged, tour-ready ProPlex "Blue Box" RackMount chassis

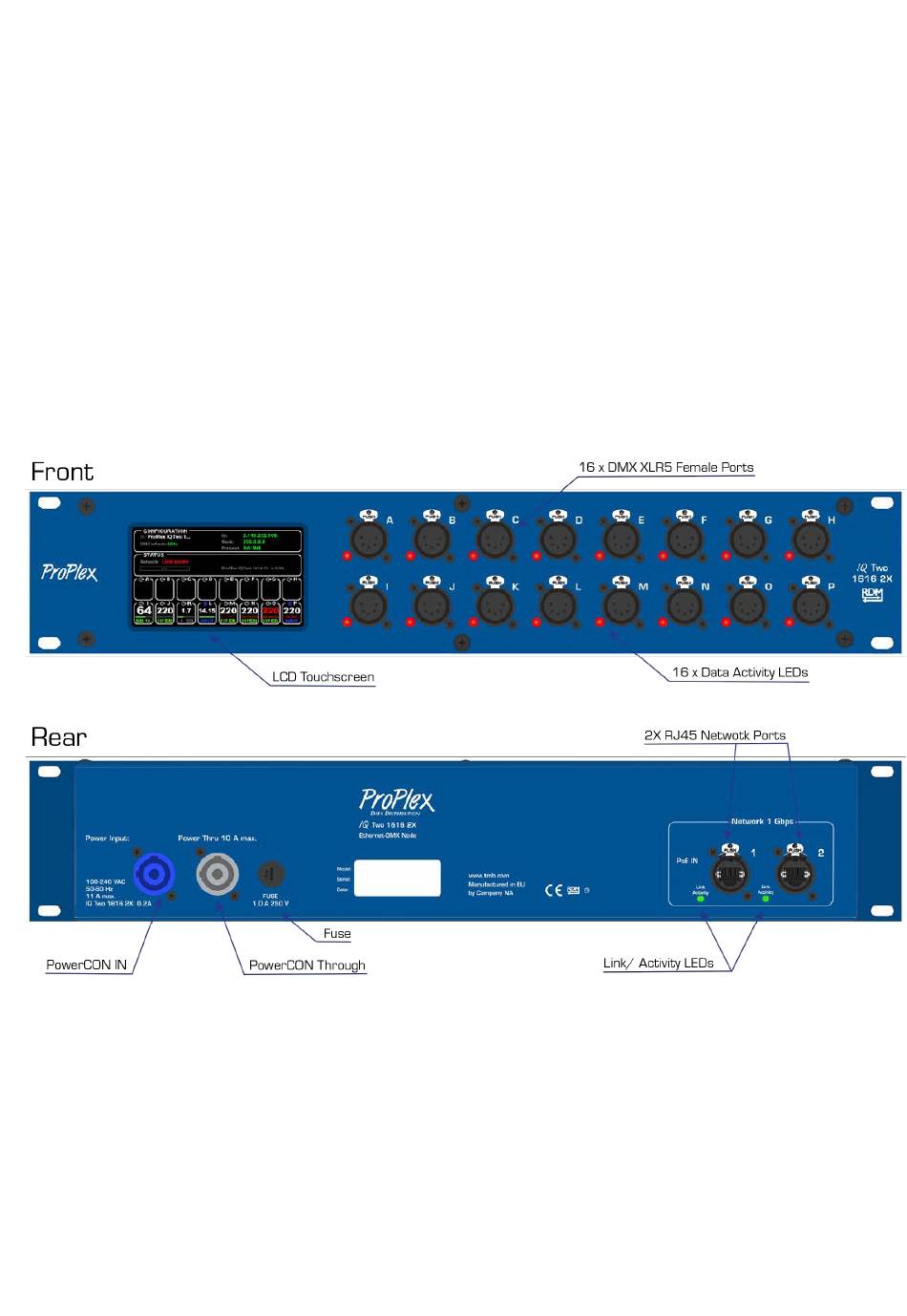

Front and Rear Panels

Note! Network Port 1 supports PoE IN (802.3af)
- 3 -
