Summary of Contents for ProPlex IQ Two 1616 2x
-

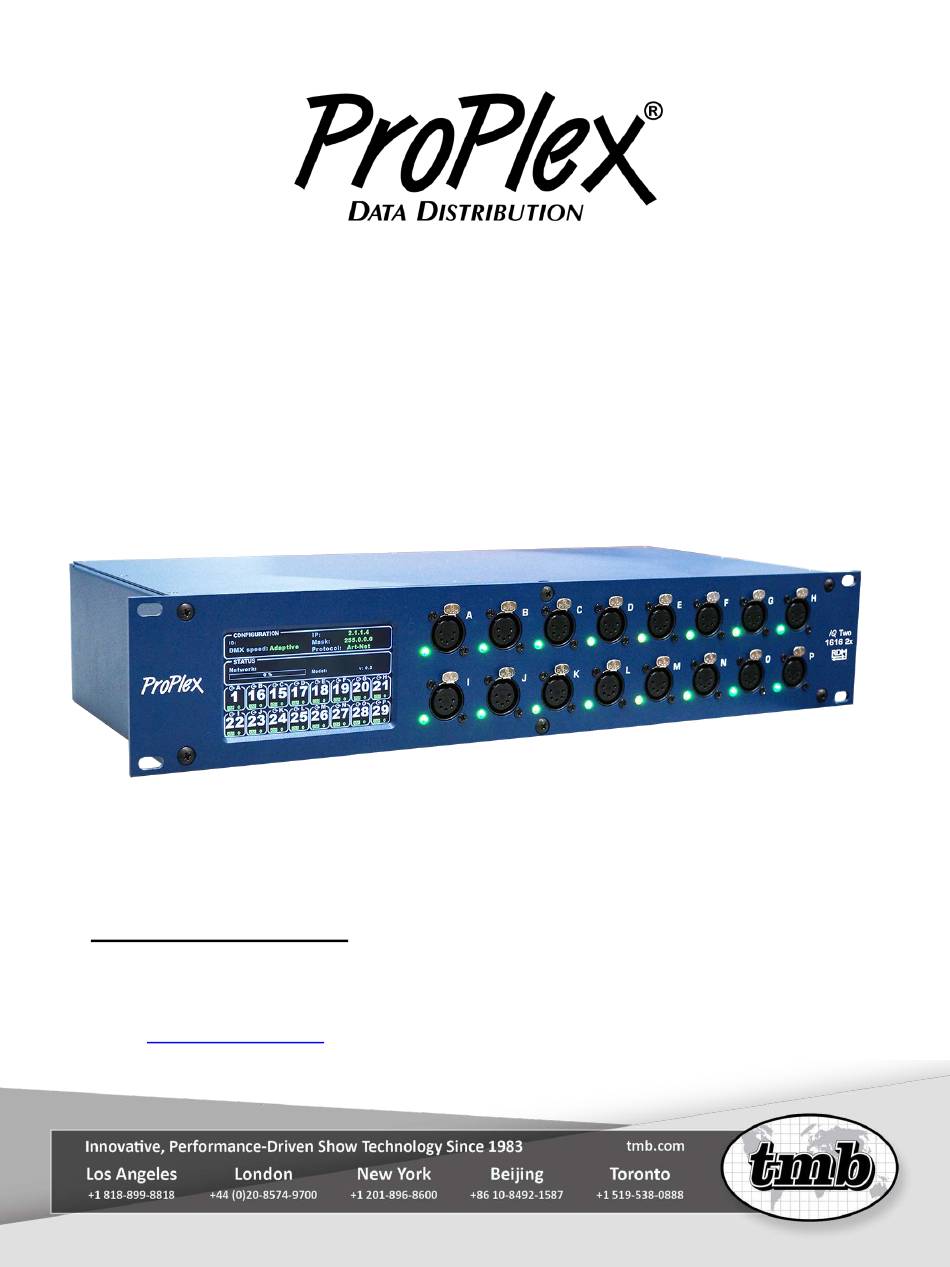

Page 1: User Manual
ProPlex IQ Two 1616 2x USER MANUAL v1.2 TMB 24/7 Technical Support US/Canada: +1 818.794.1286 Toll Free: 1 877.862.3833 (877.TMB.DUDE) UK: +44 (0)20.8574.9739 Toll Free: 0800.652.5418 email: techsupport@tmb.com... -
Page 2: Technical Specifications
Technical Specifications Part Number PPIQB161625RR Ethernet Ports ArtNet/sACN Universes 16 max. DMX Ports DMX Connectors Neutrik XLR5 Female DMX Port Isolation Optical, up to 1000V Ethernet Connector Neutrik EtherCon RJ45 Network Protocols ArtNet, sACN (E1.31) Power 100-240V, 50-60 Hz / PoE In (802.3af) Power Connector Neutrik PowerCon NAC3MPA Power Consumption... -
Page 3: Front And Rear Panels
Overview The ProPlex IQ Two 1616 2x is a 16-way bidirectional ArtNet/sACN-DMX Node with dual EtherCon ports and PoE power in. Features include: • Assign 16 DMX Connectors to up to 16 Art-Net/sACN universes • Input or output on any connector •... -
Page 4: Menu Map
Menu Map Level 1 Level 2 Level 3 Level 4 Notes Node setup Node name Node name Label Enter node name label. Universe In this menu you can set the universe format format for your needs. Base 16 (0-15) Hex (0-F) Decimal (0-32767) Screen lock Time after which the screen will... - Page 5 40Hz Fixed 40Hz refresh rate IP address IP setup Set the IP address of IQ VALUE Subnet mask Set the subnet mask of IQ VALUE This setting will ensure that software will Easy IP search for all masks, not only for a specified subnet mask Configuration User cfg.
- Page 6 Configuration using LCD Touchscreen ProPlex IQ Two 2x can be configured locally on the unit by using the touchscreen or remotely through the Ethernet port by accessing the built-in web page with a web browser, or with the ProPlex IQ RDM Manager software.
-
Page 7: Middle Of Touchscreen
The IQ series of nodes can merge multiple instance of the same universe number coming from multiple sources. The IQ Two 1616 2x will automatically merge HTP universes coming from multiple sources that have the same priority. Art-Net sources, by default have the same priority so they will be merged HTP unless Easy Priority is set to ON. -
Page 8: Configuration Menu
Configuration Menu By pressing the "Configuration" button, a new configuration sub menu will appear. There are six “pages”: 1) Node setup 2) Protocol setup 3) Protocol setup 4) IP setup 5) Configuration profiles 6) Defaults - 8 -... -
Page 9: Node Setup
Node Setup Node name Here you can exchange the node name, replace the default name (ProPlex IQ Two 1616 2x is the default) with your desired name. By pressing this button, a new window will appear: Using this virtual keyboard, the user can replace the default name with desired name. - Page 10 Screen lock time By pressing the "Screen lock time" section, a new window will appear. Here screen lock time may be set. This setting will change the time after which the ProPlex IQ Two will lock the screen. Values may be set from 5 to 600 (5 to 600 seconds).
-
Page 11: Protocol Setup
RDM over sACN is currently not supported. When the sACN is ratified to include the RDM protocol, a simple software update of your ProPlex IQ Two Node will add this functionality. The sACN protocol does not allow a universe “0”, therefore the first selectable sACN universe is universe “1”. - Page 12 By pressing the "On source loss" button, a new window will appear. When the "Hold values" setting is chosen, after the source DMX is lost, the IQ Two 1616 2x holds the last DMX values it has received and continues to output these values until incoming DMX has been restored.
- Page 13 This setting determines the time Art-Net will refresh the signal after idling. Select from 0.5s, 1s, 2s or 4s, depending on the requirement. This only applies to ProPlex IQ Two 2x DMX connectors set to input mode. Some consoles may not resend a DMX packet if there is no change in the value.
- Page 14 DMX coming from the source. IP Setup IP address: By pressing the "IP setup" button, a new window will appear. Here the user can set the IP address for the ProPlex IQ Two 1616 2x - 14 -...
- Page 15 ON, the Subnet Mask cannot be changed. Easy IP is very useful for most networking situations where subnet filtering is not required. The IQ Two 1616 2x will automatically find and output Art-Net and sACN information regardless of IP or Subnet Mask settings.
-
Page 16: Configuration Profiles
Configuration Profiles The current configuration can be saved in a User Config slot in the IQ Node. Two save slots are available. Choose which configuration to save (User cfg. 1 or User cfg. 2). For example, name the User config. 1 as "Show 1": And User config 2 as "Amazing show": Now press "Record"... - Page 17 In the main Configuration Profiles screen, either load or delete the configuration saved. If the "Load", "Record" or "Delete" button is pressed, a confirmation window will appear. Press "OK" to confirm choice or "X" to return to the menu. - 17 -...
- Page 18 Defaults In this menu system defaults can be loaded and touchscreen calibrated: Port defaults: Reset all DMX port related settings. Protocol defaults: Reset all protocol related settings (sACN/ Art-Net settings). Touchscreen calibration: Open touchscreen calibration menu. Factory defaults: Reset all settings and restart the system. After pressing the Load/ Reset buttons, there will be a new confirmation window: Where you will need to press "OK"...
-
Page 19: Status Menu
Status Menu Access DMX status for all 16 DMX ports. Press arrow up: Switches to the next port settings (for example, if editing port "1" settings, pressing this button will switch to port "2"). Press arrow down: Switches to the previous port settings (for example, if editing port "2"... -
Page 20: Output Configuration Menu
Output Configuration Menu Port settings may be changed. For each port, assign: Universe Port direction RDM (ON or OFF Port priority User can change settings for all 16 DMX ports (i.e., change universe, port direction, RDM status and port priority setting). Press arrow up: Switches to the next port setting screen (e.g., if currently you are editing port "1", by pressing the up button you will be switched to port "2"). - Page 21 Port direction Assign the port direction for each DMX port. RDM OFF/ON Active or deactivate RDM for the selected DMX port. What is RDM? Remote Device Management or RDM is a protocol enhancement to DMX512 that allows bi- directional communication between a lighting or system controller and attached RDM compliant devices over a standard DMX line.
- Page 22 Touchscreen calibration There are two ways to open the touchscreen calibration menu: 1) When the node is activating, press anywhere on the "ProPlex 1616" illustration 2) Open the device defaults settings where "touchscreen calibration" reset setting can be seen. Press the red dots to calibrate the touchscreen. There will be four dots in total, each dot in all four corners.
- Page 23 PPENDIX Remote Configuration and Monitoring of IQ Nodes ProPlex IQ Ethernet to DMX nodes can be configured and monitored via two methods: ProPlex Software and via a web browser. The ProPlex Software is available as a free PC download from www.tmb.com...
- Page 24 Limited Warranty ProPlex Data Distribution Devices are warranted by TMB against defective materials or workmanship for a period of two (2) years from the date of original sale by TMB. TMB’s warranty shall be restricted to the repair or replacement of any part that proves to be defective and for which a claim is submitted to TMB before the expiration of the applicable warranty periods.
