Status Menu

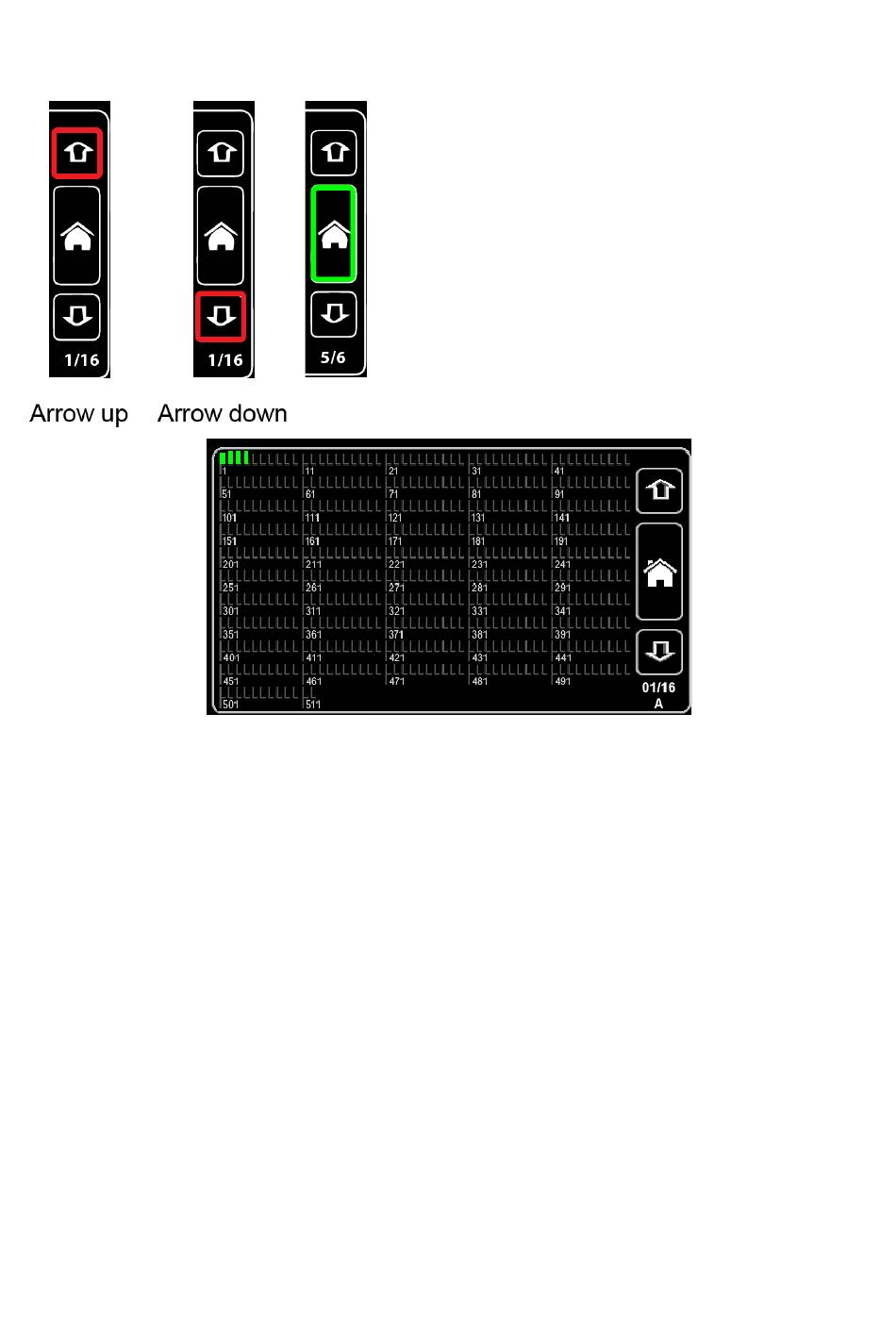

This is an example of port A DMX value status.
The four green bars display the DMX value being outputted depending on the DMX value the IQ Two 1616
2x is receiving from the source. If the DMX value received is 255, then the green bar will be full; if DMX
value is 0, then no green bar is visible.
In the example above, channel 1-4 is at 100% (255), but channels 5-512 are at zero.
Access DMX status for all 16 DMX ports.
Press arrow up: Switches to the next port settings (for
example, if editing port "1" settings, pressing this button will
switch to port "2").
Press arrow down: Switches to the previous port settings
(for example, if editing port "2" settings, pressing this button
will switch port "1").
Pressing the HOME button (green button) returns to the main
menu.
- 19 -
