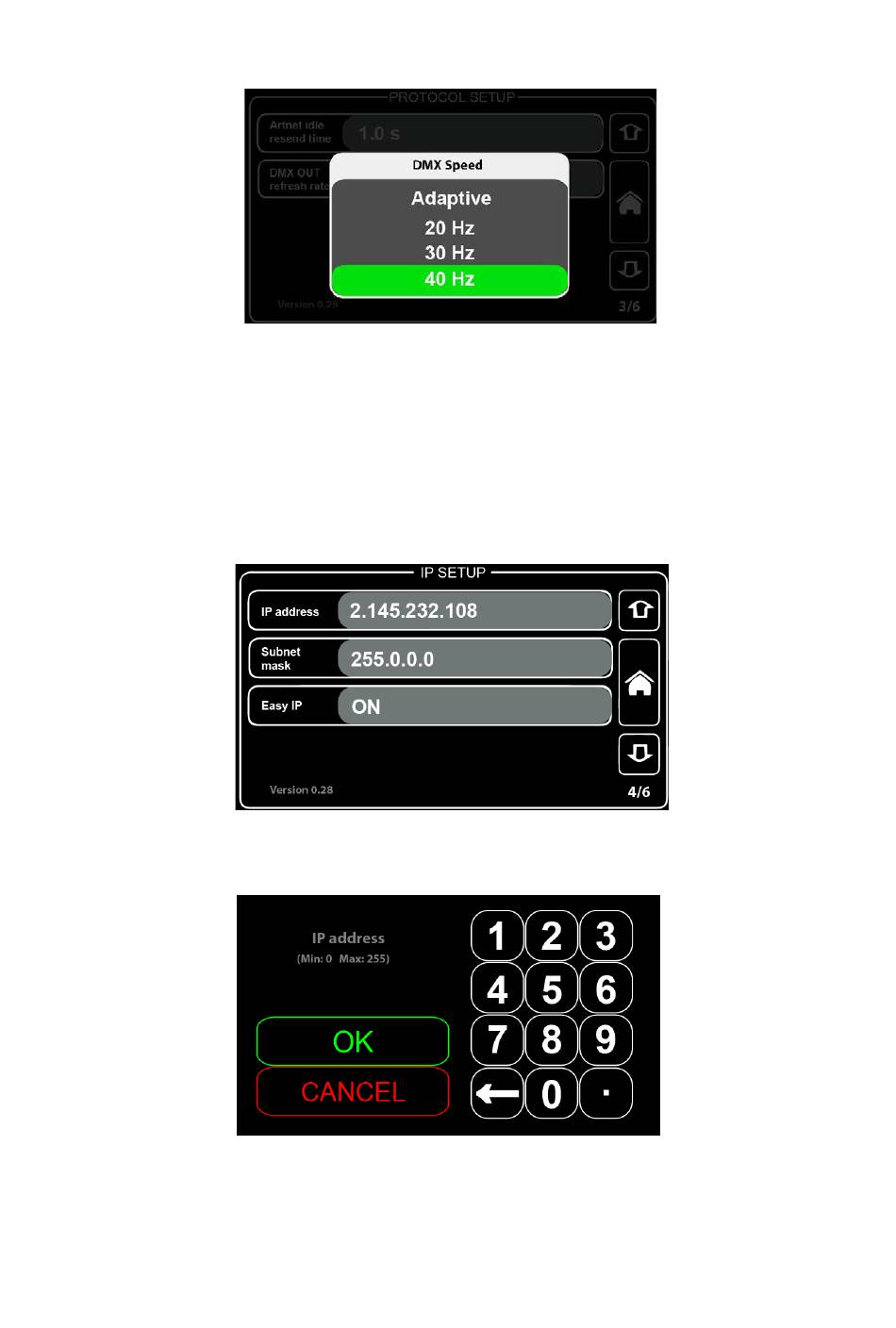

DMX OUT refresh rate
By pressing the "DMX OUT refresh rate" section, a new window will appear.
Select one of four options for "DMX out refresh rate" (Adaptive, 20Hz, 30Hz, 40Hz).
The DMX refresh rate setting controls how many times per second the IQ Two outputs DMX over 5-pin
XLR connectors. Some DMX devices work better using different refresh rate settings. For high-speed
devices like LED walls and displays, using the "Adaptive" option can improve response time by matching
the incoming refresh rate of DMX coming from the source.
IP Setup
IP address:
By pressing the "IP setup" button, a new window will appear.
Here the user can set the IP address for the ProPlex IQ Two 1616 2x
- 14 -
