Output Configuration Menu

Port settings may be changed.
For each port, assign:
Universe
Port direction
RDM (ON or OFF
Port priority
Universe

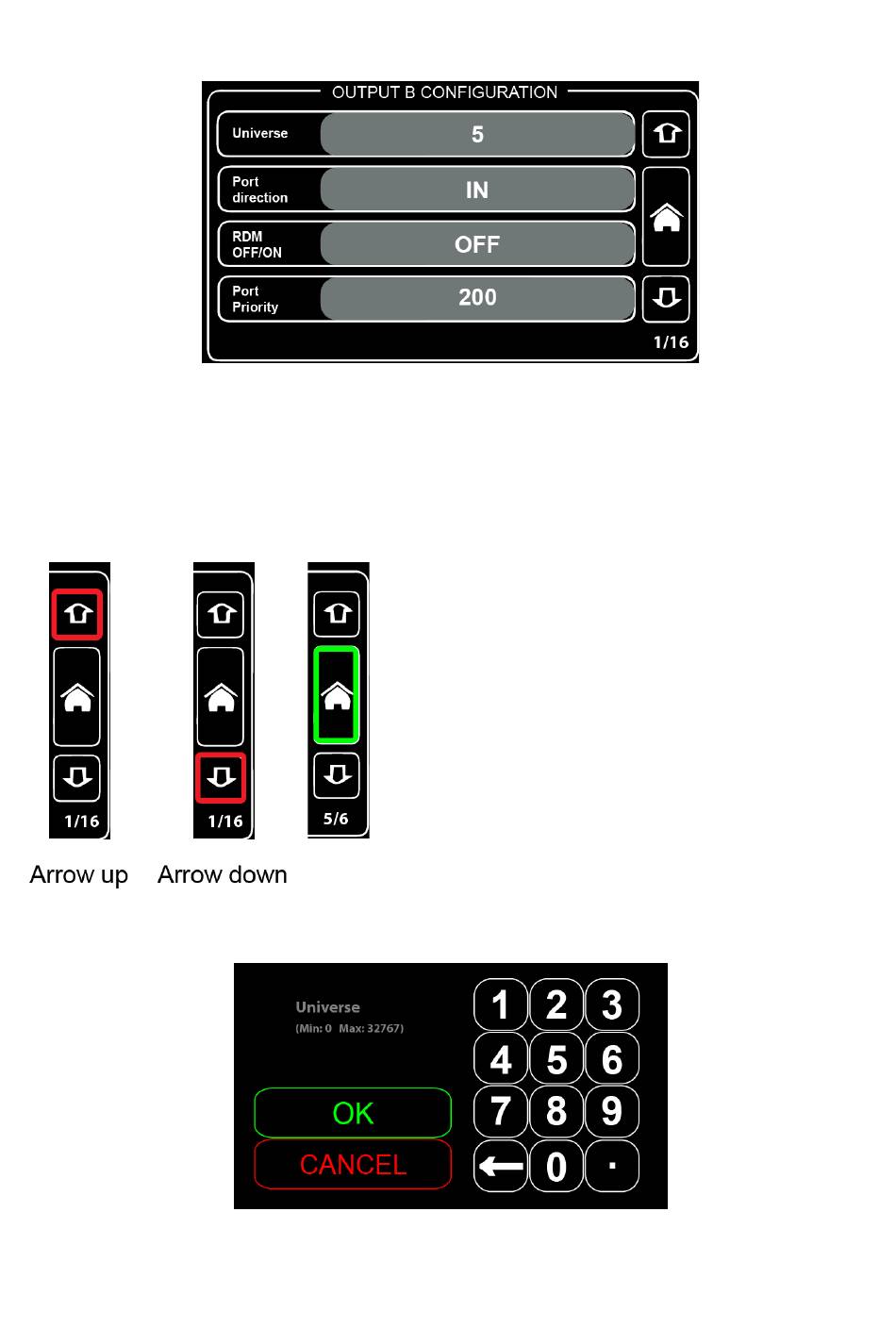

Assign the universe for the selected DMX port. By pressing the button, a new window will appear:
Set the universe (from 0 to 32767) for the selected DMX port.
User can change settings for all 16 DMX ports (i.e., change
universe, port direction, RDM status and port priority setting).
Press arrow up: Switches to the next port setting screen (e.g.,
if currently you are editing port "1", by pressing the up button
you will be switched to port "2").
Press arrow down: Switches to the previous port (e.g., if
editing port "2", pressing the down button switches to port
"1").
Pressing the HOME button (green button) returns to the
main menu.
