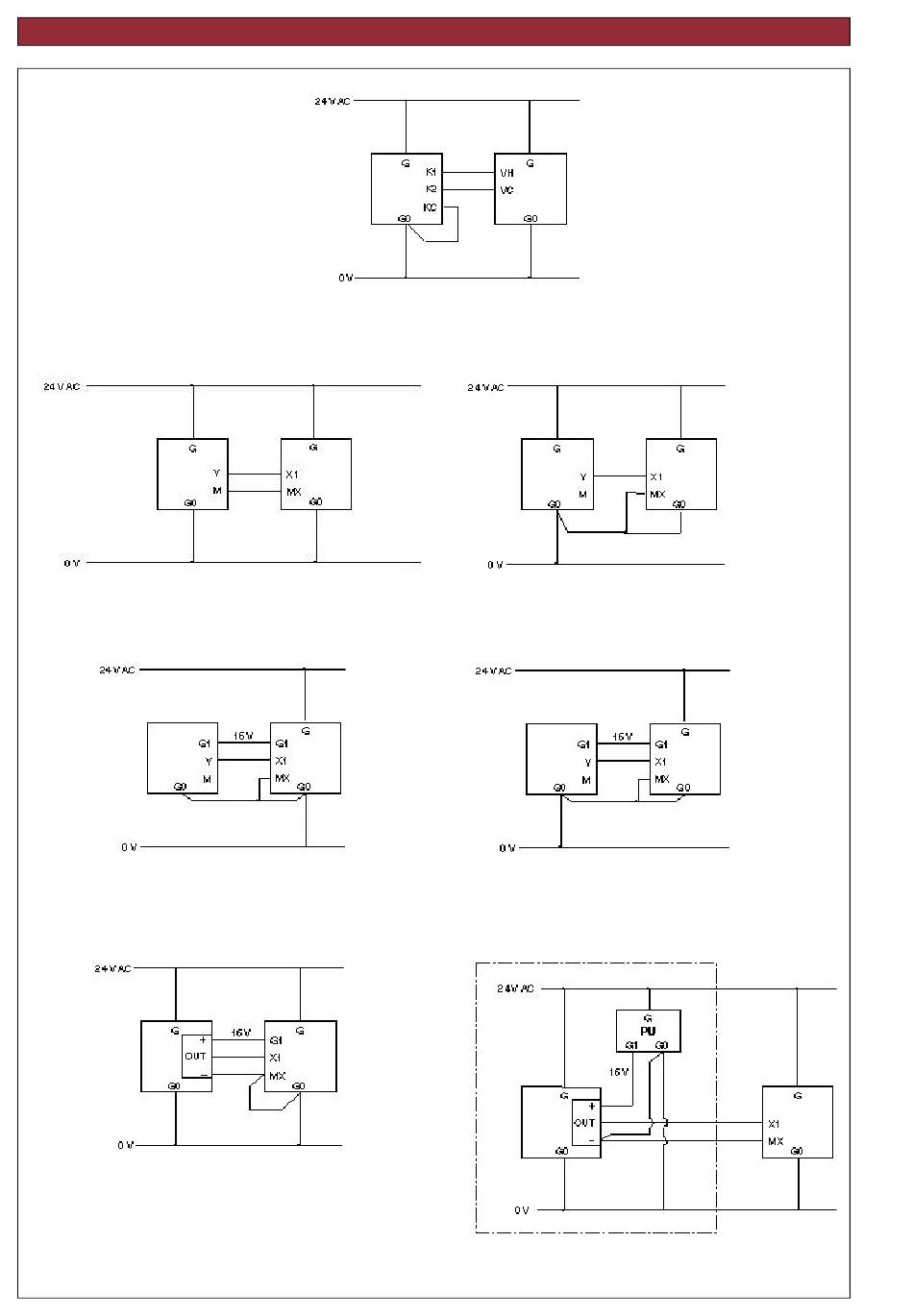

WIRING EXAMPLES

Normal installation (4 wires to the actuator)
Controller
(TAC 239W, TAC 6711, TAC Xenta, TAC 8000, TAC 230U, TAC 2000, TAC 9000, TAC 77xx)
Normal installation (5 wires to the actuator)
Controller
(TAC 218E/RM, TAC 221L, TAC 228R/RL/RF, TAC 239W, TAC 258R/RL, TAC 268R/RL/RF)
Normal installation (5 wires to the actuator)
Controller
Modulating control, galvanically isolated output in the controller (TAC 6501, TAC 6505)
0-003-2060-5 (EN)
Controller
Increase/decrease control
Forta
Modulating control, 24 V AC supply to the controller
Forta
Modulating control, 16 V DC supply to the controller
Forta
4 (6)
Forta
Short cable installation (3 wires to the actuator)
Controller
Short cable installation (4 wires to the actuator)
Controller
PU unit installation (4 wires to the actuator)
Control
cabinet
Controller
Forta
Forta
Forta
Figure 5
