Part Numbers - TAC Forta M400 Manual

PART NUMBERS

Designation Explanation
M400 modulating control signal or increase/decrease signal
M400-S2 modulating control signal or increase/decrease signal and end point
switches
M400 + L2SV modulating control signal or increase/decrease signal, including a linkage for
Satchwell valves
M400-S2 + L2SV modulating control signal or increase/decrease signal and end point switches,
including a linkage for Satchwell valves

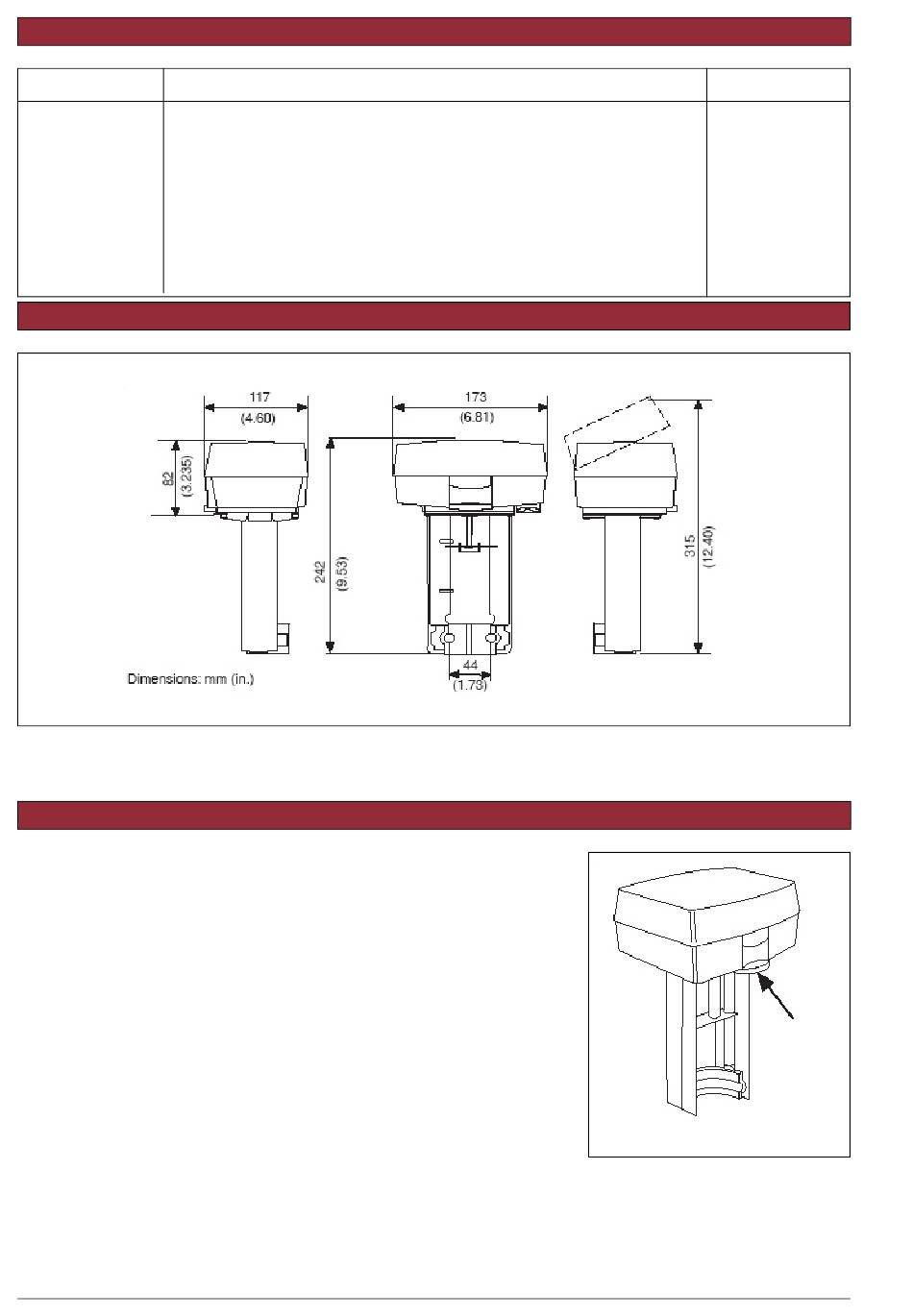

DIMENSIONS
FUNCTION
The actuator
The brushless DC-motor of the actuator
turns a screw via a gear wheel. The
motor receives a control signal from a
controller. The screw gets a linear
movement which moves the stem of the
valve.
Control signal
M400 can either be controlled by an
increase/decrease signal or by a
variable direct voltage.
If an increase/decrease signal is used,
the actuator normally moves inwards on
an increase signal and outwards on a
decrease signal, see Settings.
0-003-2060-5 (EN)
Manual operation
There is a manual operation handle on
the actuator, see figure 2. When it is
lowered, the motor stops. Then, the
actuator can be operated manually if
the handle is turned.
Position feedback
Forta actuators are equipped with a 2–
10 V DC position feedback signal,
where 2 V always corresponds to the
closed position and 10 V to the open
position (depending of switch nr. 1).
End point switches
When actuators are controlled in
sequence, it is possible to use the end
point switches that have set positions.
They will toggle when the valve is fully
open or fully closed, respectively.
2 (6)
Part number
880-0230-030
880-0231-030
880-0620-000
880-0621-000
Figure 1
Manual
operation
handle
Figure 2
